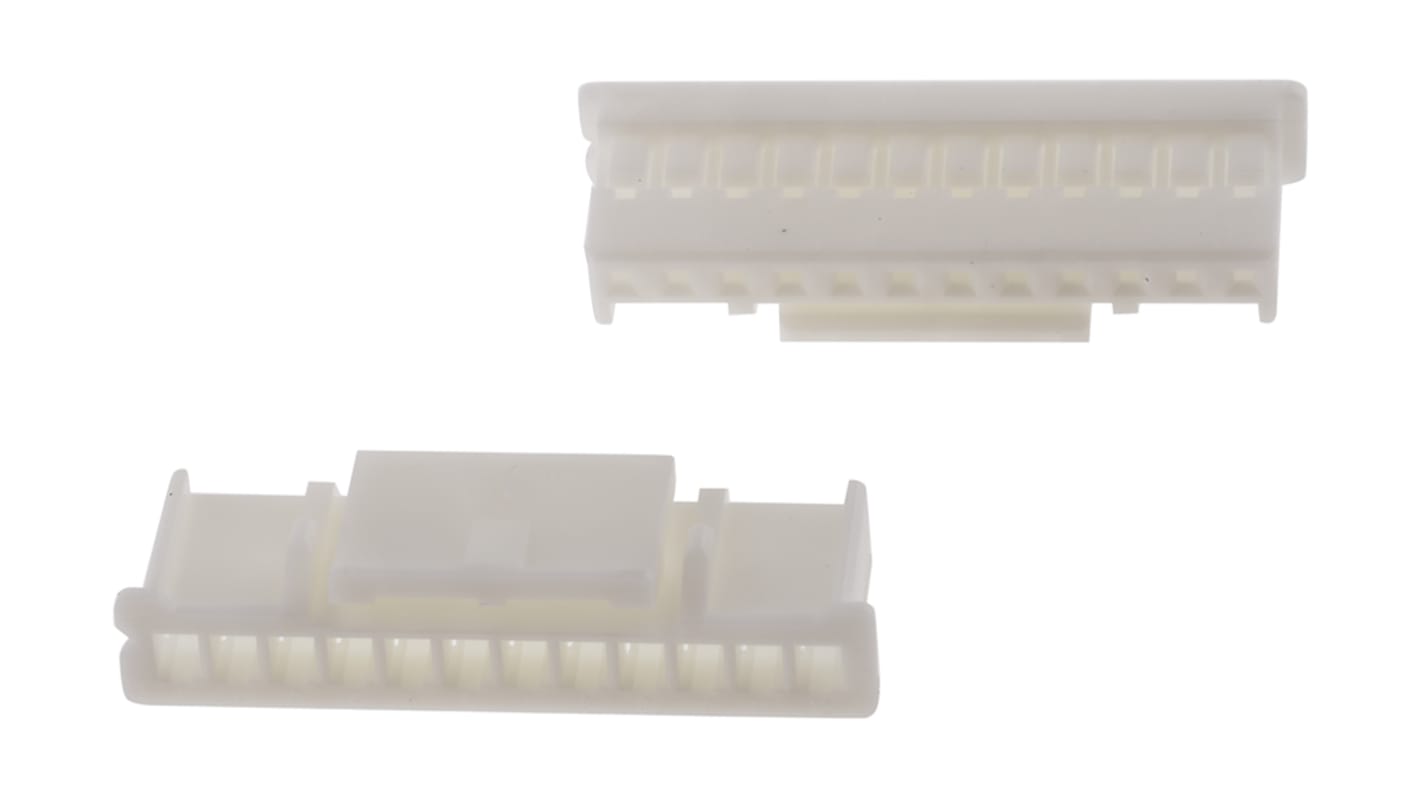

JST, PA Female Connector Housing, 2mm Pitch, 12 Way, 1 Row
- RS Stock No.:
- 476-6861
- Mfr. Part No.:
- PAP-12V-S
- Brand:
- JST
Bulk discount available
Subtotal (1 pack of 10 units)*
£1.81
(exc. VAT)
£2.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 870 unit(s) shipping from 22 October 2025
- Plus 540 unit(s) shipping from 22 October 2025
- Plus 160 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.181 | £1.81 |
| 50 - 240 | £0.177 | £1.77 |
| 250 - 490 | £0.172 | £1.72 |
| 500 - 990 | £0.168 | £1.68 |
| 1000 + | £0.164 | £1.64 |
*price indicative
- RS Stock No.:
- 476-6861
- Mfr. Part No.:
- PAP-12V-S
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 12 | |
| Number of Rows | 1 | |
| Pitch | 2mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | PA | |
| For Use With | Crimp Connector | |
| Body Orientation | Straight | |
| Length | 26mm | |
| Width | 5.8mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 12 | ||
Number of Rows 1 | ||
Pitch 2mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series PA | ||
For Use With Crimp Connector | ||
Body Orientation Straight | ||
Length 26mm | ||
Width 5.8mm | ||
Housing Material Nylon | ||
JST PCB Connector Housings - PA Series
Our range of JST PCB Connector Housings form part of the PA series for connectors. These housings provide a quality receptacle for connectors when they are mounted to a printed circuit board. Common applications of these connector housings can vary, but they are commonly used within household appliances, industrial controls, and storage and networking systems.
Features and Benefits
• 2 mm pitch
• Wire to board connection
• Additional locking features for secure connection to fittings
• Compact and durable
• UL File No. 60389, CSA File No. LR20812
• Wire to board connection
• Additional locking features for secure connection to fittings
• Compact and durable
• UL File No. 60389, CSA File No. LR20812
2.0 mm JST PA Range
The PA interconnection system on a 2.0mm pitch provides a secure wire to board connection with additional locking device feature. The thumb depress mechanism prevents accidental disconnection during assembly or as a result of vibration. Suitable for a wide range of applications where a secure anti-vibration connection is required.
Top entry and side entry headers available
Header has polarising guides for easy and secure insertion
Header pins are low insertion force
Header has polarising guides for easy and secure insertion
Header pins are low insertion force
