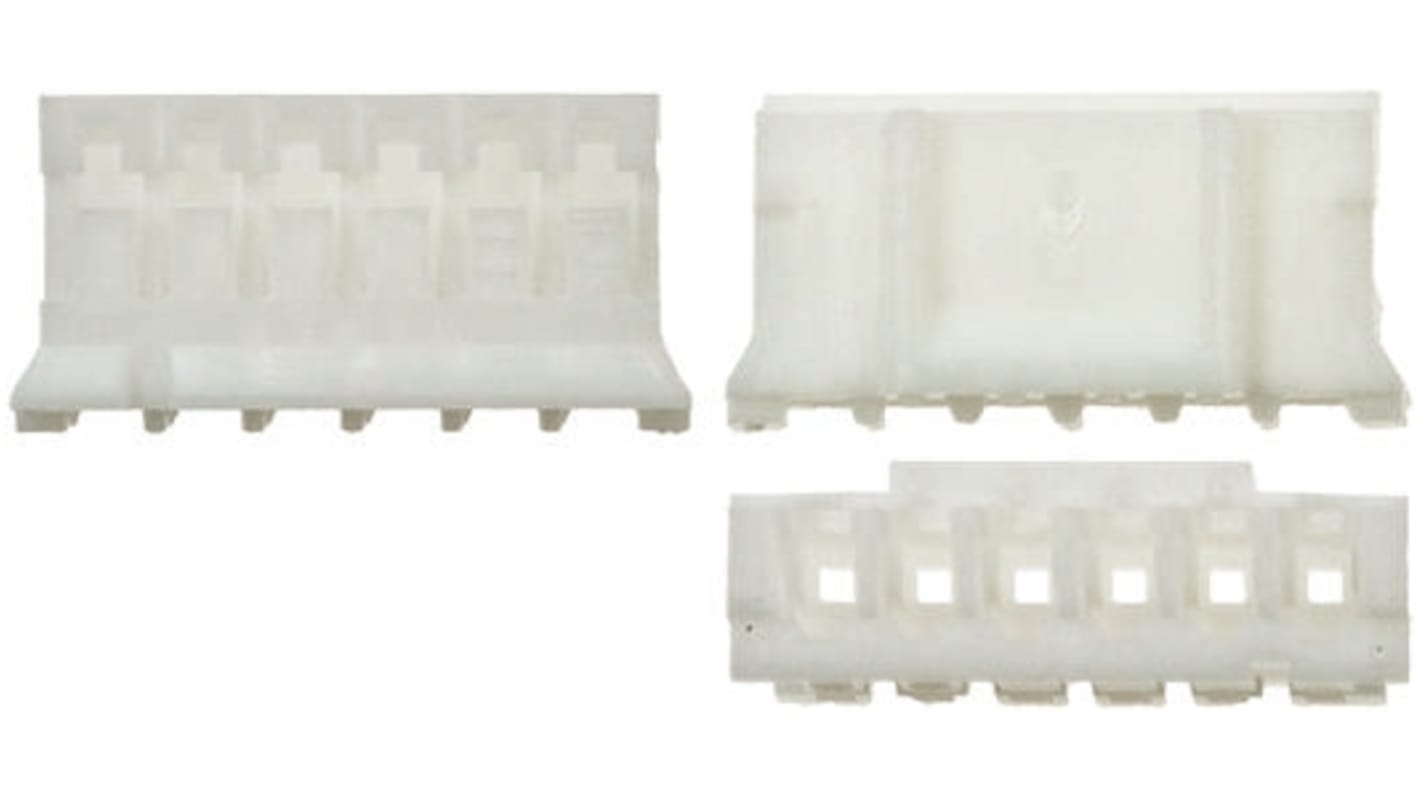

JST, PH Female PCB Housing, 2mm Pitch, 6 Way, 1 Row
- RS Stock No.:
- 353-1349
- Mfr. Part No.:
- PHR-6
- Brand:
- JST
View all Wire Housings & Plugs
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
PH Series Wire to Board Housings
The PH Series from JST are a range of thin, highly reliable, single row housing for use with PH series crimp contacts. They have been designed to meet the demand for high-density connection of internal wires to printed circuit boards.
Features and Benefits
• 2.0 mm pitch
• 2 to 16 circuits
• Highly reliable contact at all times
• Fully covered header to ensure the correct connection to mating housing
• Natural (white) in colour
• UL 94V-0 flammability rating
• 2 to 16 circuits
• Highly reliable contact at all times
• Fully covered header to ensure the correct connection to mating housing
• Natural (white) in colour
• UL 94V-0 flammability rating
2.0mm Wire-to-Board Connector, JST PH Series
Specifications
| Attribute | Value |
| Number of Contacts | 6 |
| Number of Rows | 1 |
| Pitch | 2mm |
| Gender | Female |
| Series | PH |
| For Use With | Disconnectable Crimp Connector |
| Body Orientation | Straight |
| Length | 13.8mm |
| Width | 4.5mm |
| Housing Material | Nylon |
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
