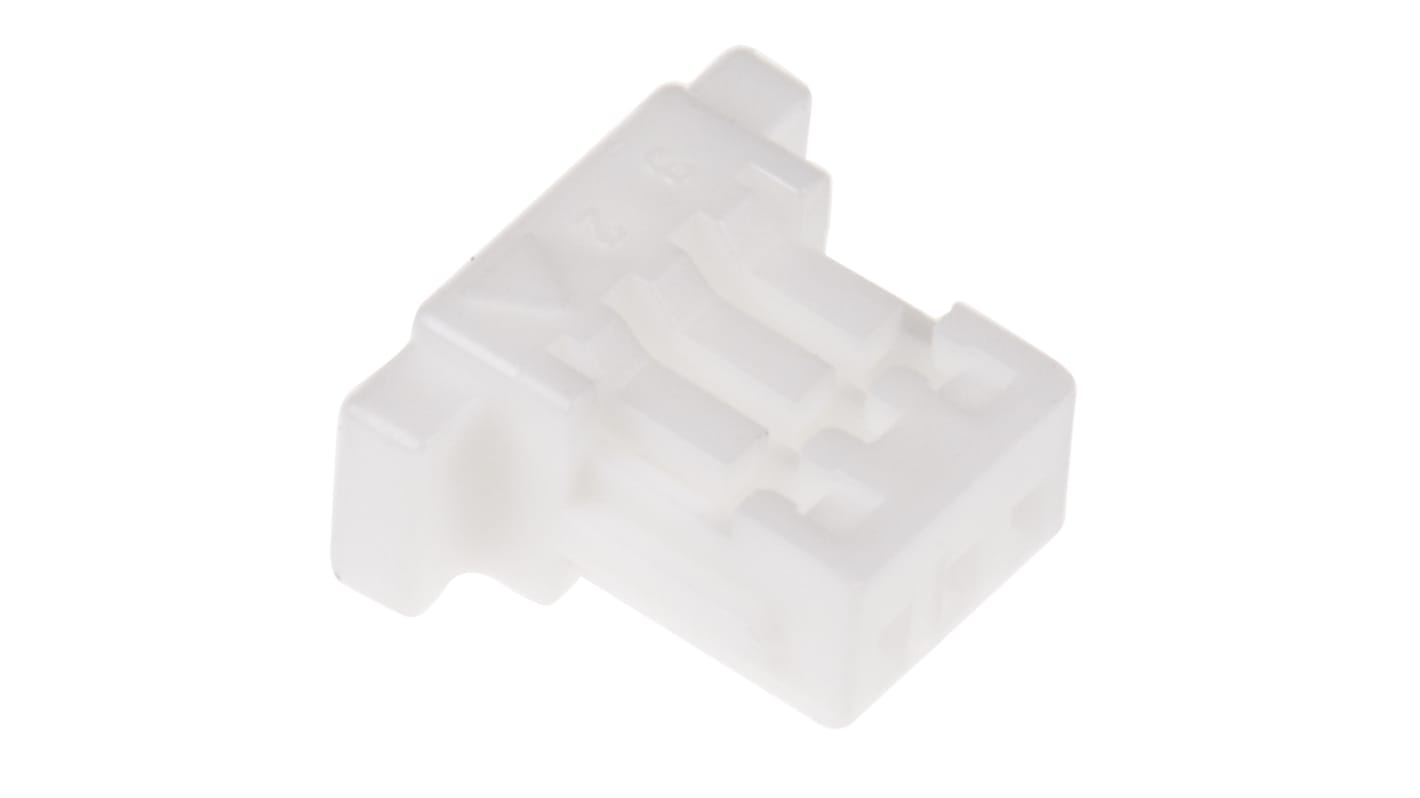

JST, SH Connector Housing, 3 Way
- RS Stock No.:
- 311-6518
- Mfr. Part No.:
- SHR-03V-S-B
- Brand:
- JST
Bulk discount available
Subtotal (1 pack of 10 units)*
£1.06
(exc. VAT)
£1.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,960 unit(s) ready to ship
- Plus 410 unit(s) ready to ship from another location
- Plus 2,000 unit(s) shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 240 | £0.106 | £1.06 |
| 250 - 990 | £0.082 | £0.82 |
| 1000 - 2490 | £0.07 | £0.70 |
| 2500 - 4990 | £0.057 | £0.57 |
| 5000 + | £0.046 | £0.46 |
*price indicative
- RS Stock No.:
- 311-6518
- Mfr. Part No.:
- SHR-03V-S-B
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 3 | |
| Series | SH | |
| Length | 6mm | |
| Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 3 | ||
Series SH | ||
Length 6mm | ||
- COO (Country of Origin):
- JP
SH Series Wire to Board Housings
The SH Series from JST are a range of very small, ultra-compact, low profile 1.0 mm pitch connector housings. These housings provide a quality receptacle for connectors when they are mounted to a printed circuit board. They are ideal for fitting where space is limited and for any wire to board connections.
Features and Benefits
• 1.0 mm pitch
• Low profile, ultra-compact design
• Natural (white) in colour
• Finger gripping protrusions at either end making removal from the header without holding the wires
• Polarised housings ensuring accurate mating
• Single Row
• Low profile, ultra-compact design
• Natural (white) in colour
• Finger gripping protrusions at either end making removal from the header without holding the wires
• Polarised housings ensuring accurate mating
• Single Row
1.0mm Wire to Board - JST SH Series
The JST SH connectors are an extremely compact and versatile Wire-to-board interconnection system on a 1mm pitch utilising surface mount technology and pre-terminated leads. Available in 2, 3, 4, 8 and 10 way versions, this high quality range is suitable for many applications where board space is limited.
Low mating force
Low profile
Time and cost saving pre-terminated leads
Polarised housings
Low profile
Time and cost saving pre-terminated leads
Polarised housings
