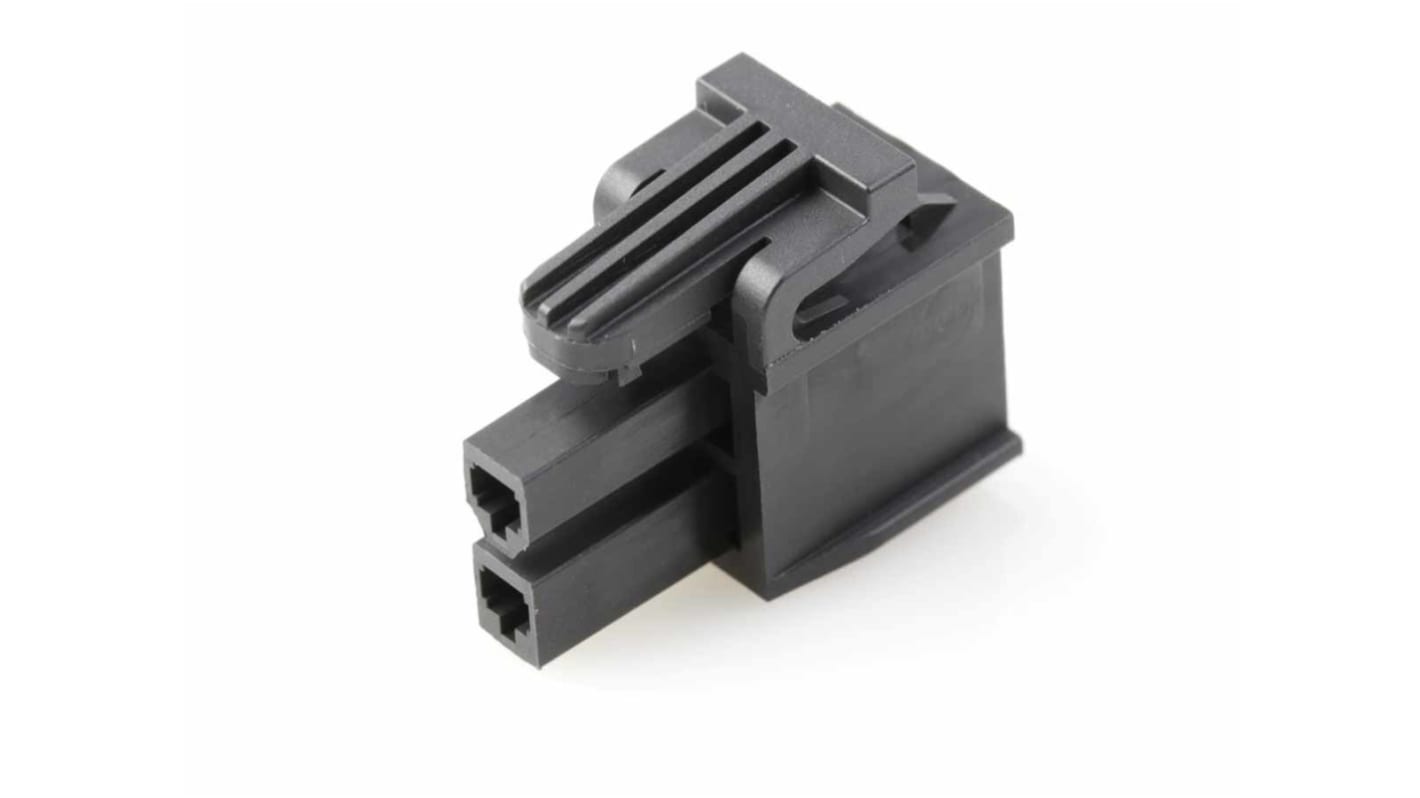

Molex, 172708 Male PCB Connector Housing, 4.2mm Pitch, 2 Way, 2 Row

This PCB connector housing is a part of the Mini-Fit family power connectors, specifically designed for robust electrical connections. With a straight body orientation, it features a pitch of 4.2mm and accommodates two circuits in a dual-row configuration. Crafted from durable nylon material, this receptacle connector housing is well-suited for a range of applications in the automation, electronics, and electrical industries.

• Manufactured from durable nylon providing excellent resilience
• 4.2mm pitch ensures compatibility with various connectors
• Dual rows support efficient space utilisation in designs
• Glow-wire capable, enhancing safety in high-temperature environments
• Locking mechanism to secure connections reliably
• Polarised design prevents incorrect mating during assembly

• Used in power to connect circuitry
• Suitable for wire-to-board and wire-to-wire connections
• Compatible with Mini-Fit TPA2 crimp terminals for versatile use
• Ideal for custom electronic assemblies in automation systems

The connector housing is constructed from high-quality nylon, which provides both strength and resistance to environmental factors, ensuring long-lasting durability.

Glow-wire capability is vital for enhancing safety by allowing the connector to withstand higher temperatures without compromising its structural integrity, making it suitable for demanding applications.

The locking mechanism ensures a secure fit with mating parts, minimising the risk of accidental disconnections in high-vibration environments, thus enhancing the reliability of the connection.

This connector housing operates effectively in temperature ranges from -40° to +105°C, making it suitable for a variety of harsh industrial conditions.

The polarised design simplifies the mating process, allowing for straightforward assembly and reducing the chances of misalignment or incorrect connections during installation.
