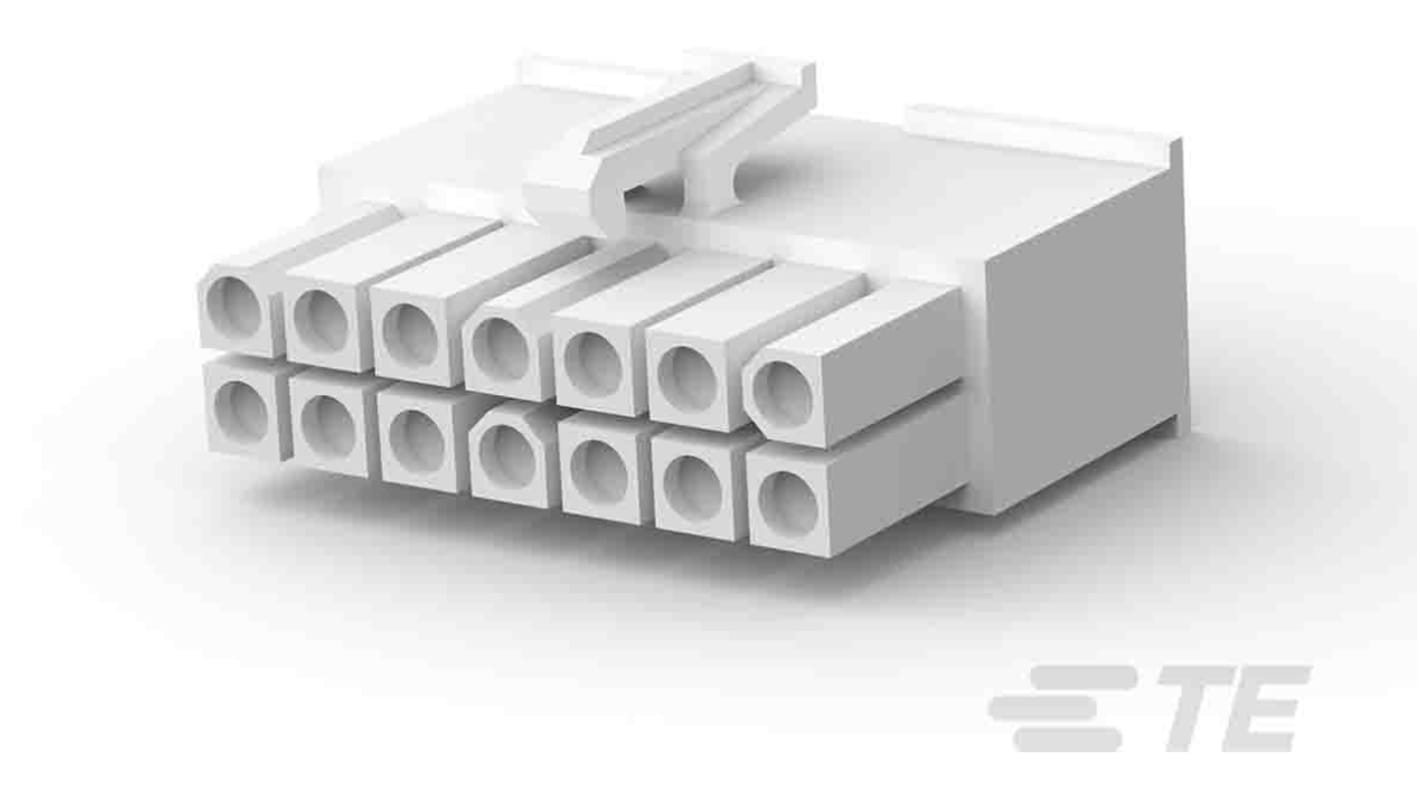

TE Connectivity, Mini-Universal MATE-N-LOK Male Connector Housing, 4.14 mm Pitch, 14 Way, 2 Row Straight
- RS Stock No.:
- 189-5825
- Mfr. Part No.:
- 770582-1
- Brand:
- TE Connectivity
Subtotal (1 bag of 900 units)*
£854.10
(exc. VAT)
£1,025.10
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 900 + | £0.949 | £854.10 |
*price indicative
- RS Stock No.:
- 189-5825
- Mfr. Part No.:
- 770582-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 14 | |
| Product Type | Connector Housing | |
| Number of Rows | 2 | |
| Pitch | 4.14mm | |
| Connector Gender | Male | |
| Mount Type | Cable | |
| For Use With | Centerline Soft Shell Pin & Socket Connector | |
| Orientation | Straight | |
| Housing Material | Polyamide | |
| Length | 30.68mm | |
| Series | Mini-Universal MATE-N-LOK | |
| Standards/Approvals | No | |
| Width | 15.19mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 14 | ||
Product Type Connector Housing | ||
Number of Rows 2 | ||
Pitch 4.14mm | ||
Connector Gender Male | ||
Mount Type Cable | ||
For Use With Centerline Soft Shell Pin & Socket Connector | ||
Orientation Straight | ||
Housing Material Polyamide | ||
Length 30.68mm | ||
Series Mini-Universal MATE-N-LOK | ||
Standards/Approvals No | ||
Width 15.19mm | ||
RoHS Status: Exempt
Socket/Receptacle Housing
The Mini-Universal MATE-N-LOK connector system for wire to wire and wire to board connections on a 4.14mm centreline. The connectors have a compact and durable design and can achieve a maximum electrical performance with current ratings of up to 9.5 A max per line. The Mini-Universal MATE-N-LOK connector system consists of plug and cap housings and PCB headers. The plug and cap housings can accept a combination of both pins and sockets in the same housing.
Features and benefits:
• Made from a strong and sturdy 'Nylon 66' material
• -20°C to +105°C operating temperatures
• Fully polarised housings
• Accepts male or female contacts
TE Connectivity Mini-Universal MATE-N-LOK Connector System
Note
Images are a representitive only.
