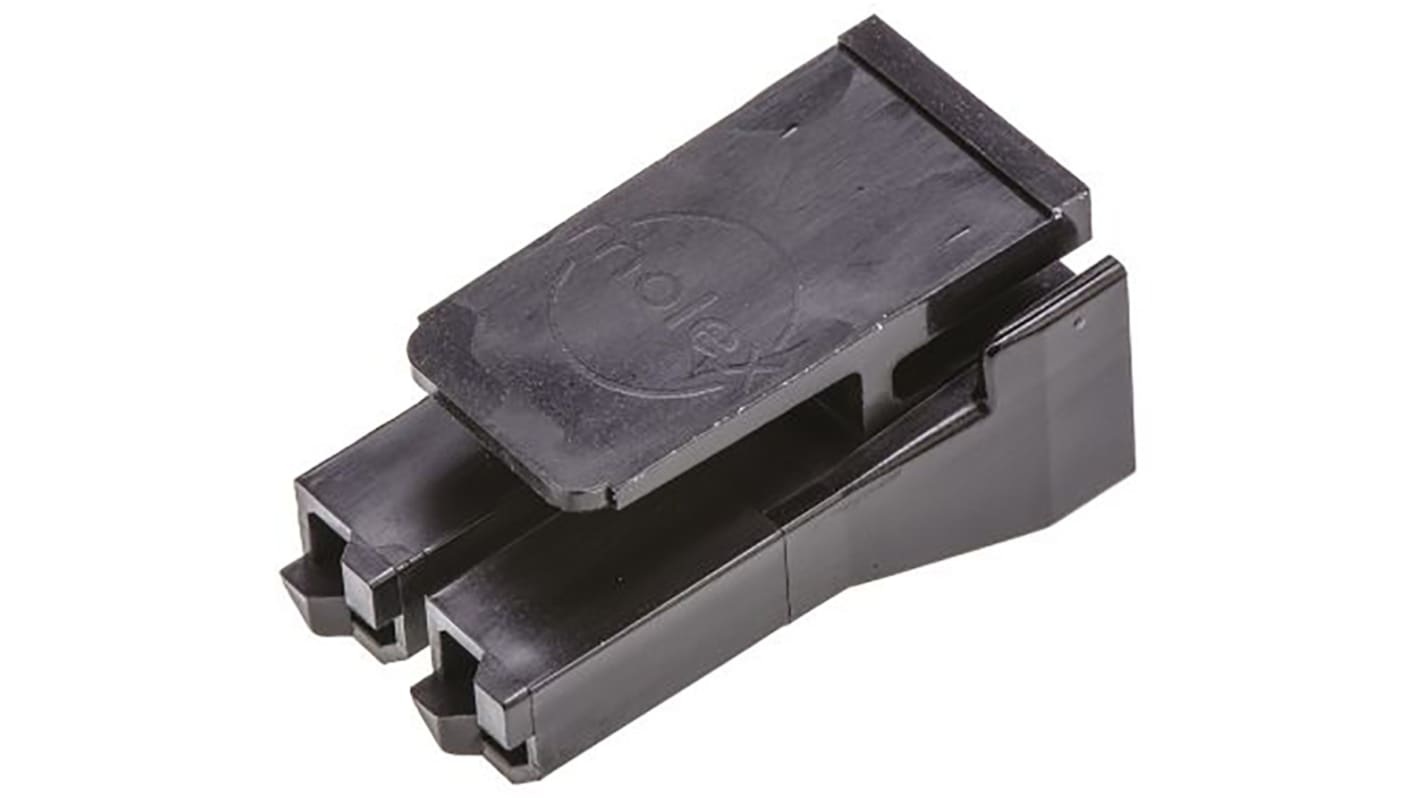

Molex, Sabre Female Crimp Connector Housing, 7.5mm Pitch, 4 Way, 1 Row
- RS Stock No.:
- 189-1420
- Mfr. Part No.:
- 44441-2004
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 1000 units)*
£648.00
(exc. VAT)
£778.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 - 1000 | £0.648 | £648.00 |
| 2000 + | £0.63 | £630.00 |
*price indicative
- RS Stock No.:
- 189-1420
- Mfr. Part No.:
- 44441-2004
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 4 | |
| Number of Rows | 1 | |
| Pitch | 7.5mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | Sabre | |
| For Use With | 43375 Female Crimp Terminals | |
| Length | 30.82mm | |
| Width | 27.38mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Pitch 7.5mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series Sabre | ||
For Use With 43375 Female Crimp Terminals | ||
Length 30.82mm | ||
Width 27.38mm | ||
Housing Material Nylon | ||
Designed for high-current and high voltage applications with a current rating up to 18.0A at 600V
Finger-proof access to prevent accidental electric shock
Terminal design incorporates a .125" (3.18mm) wide blade tab that mates to the industry standard solderless style 0.125" NEMA tabs
Integral Terminal Position Assistance (TPA) located on both male and female terminals to prevent terminal back out and is ideal for high-vibration applications. Activation is optional
Positive latch on receptacle housing prevents accidental disengagement with mating plug or header
Anti-tangle latch on receptacle housing prevents accidental receptacle latch breakage and reduces tangling during harness assembly
Blade-terminal design has four independent points of electrical contact providing a more reliable electrical connection than circular style terminals
Right-angle or vertical header configurations offer greater flexibility to match customer board-design requirements
Metal clips are available on headers for 1.75mm, 2.36mm, and 3.17mm PCB thicknesses to help secure headers to common PCB thicknesses
Finger-proof access to prevent accidental electric shock
Terminal design incorporates a .125" (3.18mm) wide blade tab that mates to the industry standard solderless style 0.125" NEMA tabs
Integral Terminal Position Assistance (TPA) located on both male and female terminals to prevent terminal back out and is ideal for high-vibration applications. Activation is optional
Positive latch on receptacle housing prevents accidental disengagement with mating plug or header
Anti-tangle latch on receptacle housing prevents accidental receptacle latch breakage and reduces tangling during harness assembly
Blade-terminal design has four independent points of electrical contact providing a more reliable electrical connection than circular style terminals
Right-angle or vertical header configurations offer greater flexibility to match customer board-design requirements
Metal clips are available on headers for 1.75mm, 2.36mm, and 3.17mm PCB thicknesses to help secure headers to common PCB thicknesses
