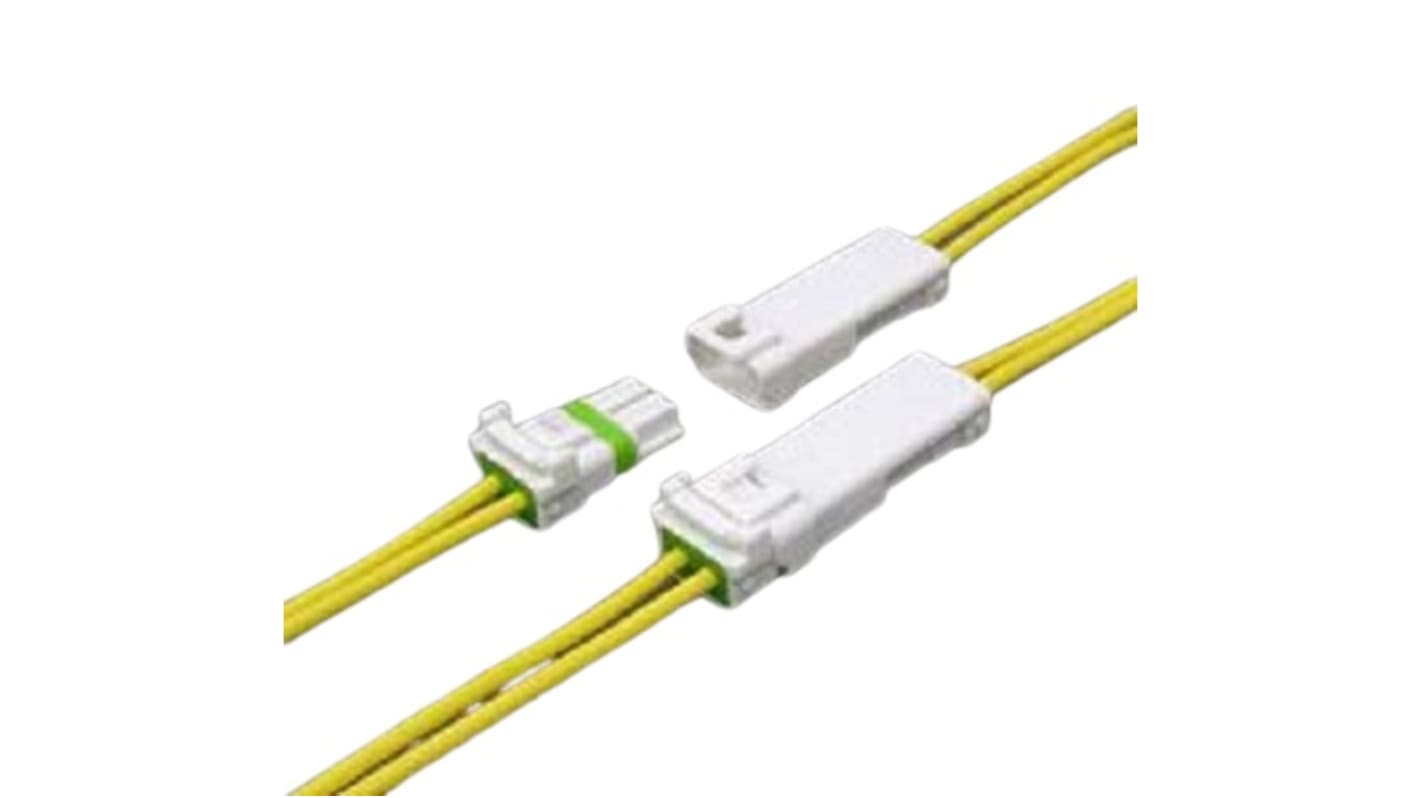

JST, WPJ Female Connector Housing, 5mm Pitch, 3 Way, 1 Row
- RS Stock No.:
- 185-6855
- Mfr. Part No.:
- 03R-WPJV-1-SMM (NN).
- Brand:
- JST
96 In stock - FREE next working day delivery available
42 available from Europe for delivery within 5 working day(s).
Added
Price Each (In a Pack of 6)
£1.203
(exc. VAT)
£1.444
(inc. VAT)
| Units | Per unit | Per Pack* |
| 6 - 18 | £1.203 | £7.218 |
| 24 - 96 | £1.143 | £6.858 |
| 102 - 240 | £1.087 | £6.522 |
| 246 - 354 | £1.032 | £6.192 |
| 360 + | £0.982 | £5.892 |
| *price indicative | ||
- RS Stock No.:
- 185-6855
- Mfr. Part No.:
- 03R-WPJV-1-SMM (NN).
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
PCB Connectors including FFC / FPC, board-to-board, wire to board, crimp style, IDC connectors and more
Waterproof Connectors - The WPJ Series is Compact, Water Resist and Durable. This connector for electrical connection can be used on both waterproof and non-waterproof conditions, depending on the usage. Just by placing a rubber part will change it into a water resistant connector. Both conditions are using the same header.
Waterproof Performance
Control Key System
Contacting part of contact is hardly deformed
Inner-housing lock
Compact Design
Control Key System
Contacting part of contact is hardly deformed
Inner-housing lock
Compact Design
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 3 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Gender | Female |
| Mounting Type | Cable Mount |
| Series | WPJ |
| For Use With | WPJ Series Disconnectable Crimp Style Wire-to-Wire Connectors |
| Length | 17.8mm |
| Width | 22.8mm |
| Housing Material | Nylon |
