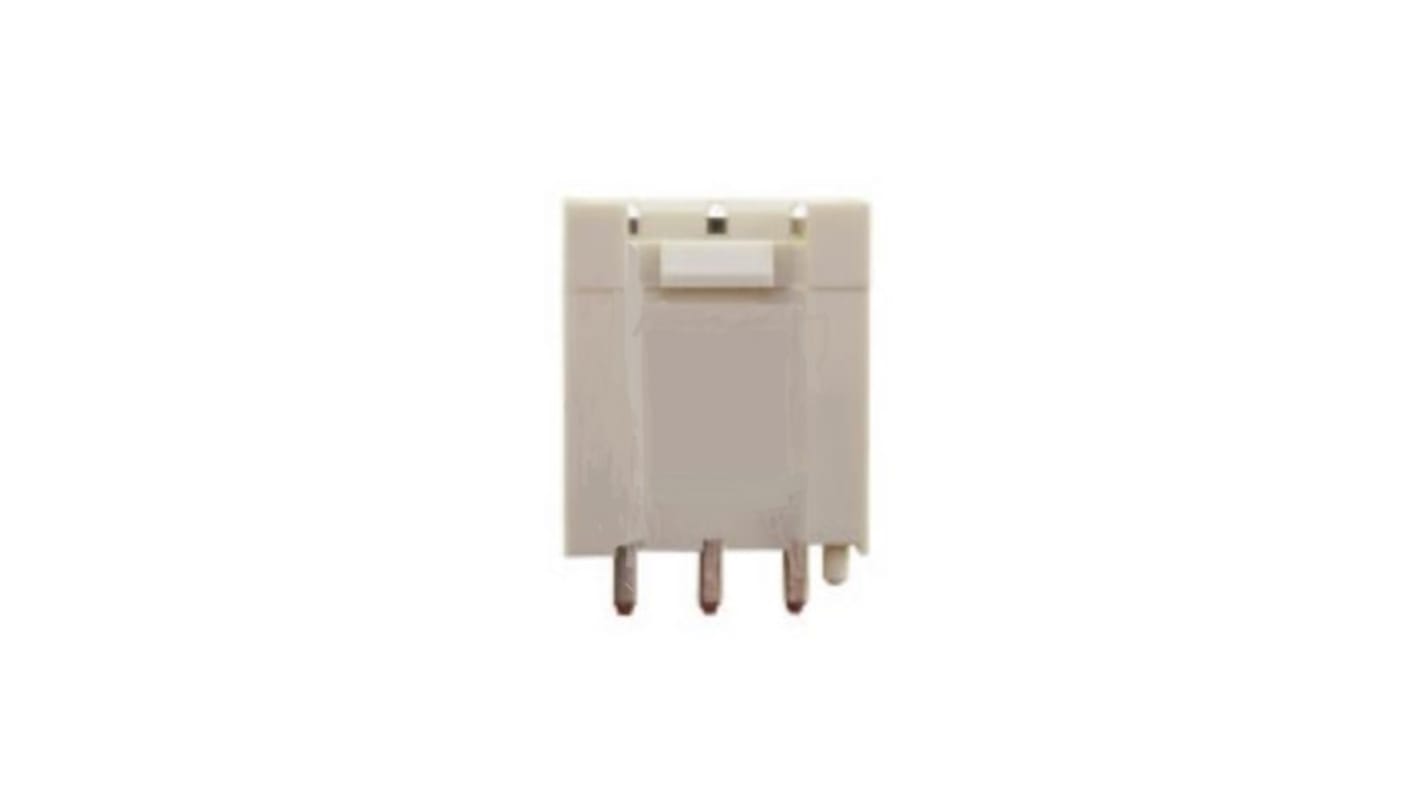

JST, VH Connector Housing, 3.96mm Pitch, 3 Way, 1 Row
- RS Stock No.:
- 184-8354
- Mfr. Part No.:
- BH3P-VH-1(LF)(SN)
- Brand:
- JST
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 184-8354
- Mfr. Part No.:
- BH3P-VH-1(LF)(SN)
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Pitch | 3.96mm | |
| Series | VH | |
| For Use With | VH Disconnectable Crimp Style Connectors | |
| Length | 13.76mm | |
| Width | 9.2mm | |
| Housing Material | Glass Filled PA66 | |
Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Pitch 3.96mm | ||
Series VH | ||
For Use With VH Disconnectable Crimp Style Connectors | ||
Length 13.76mm | ||
Width 9.2mm | ||
Housing Material Glass Filled PA66 | ||
- COO (Country of Origin):
- JP
The header is tall and fully shrouded so as to prevent the resin used to coat the PCB coming into contact with the mating pins. Designed for use specifically with resin coated ("potted") PC boards. The header is designed to accept VH mating receptacles. The housing has a lock mechanism which prevents the connector from coming loose due to vibration. The mechanism also prevents misinsertion.
Header for 3.96mm (.156") pitch VH connector for use specifically with resin coated ("potted") PC boards
This header is tall and fully shrouded so as to prevent the resin used to coat the PC boards from coming into contact with the mating pins.
Interchangeability
Designed to accept VH mating receptacles.
This header is tall and fully shrouded so as to prevent the resin used to coat the PC boards from coming into contact with the mating pins.
Interchangeability
Designed to accept VH mating receptacles.
