Hirose, DF62W Female Crimp Connector Housing, 2.2 mm Pitch, 6 Way, 2 Row Straight
- RS Stock No.:
- 175-9986
- Mfr. Part No.:
- DF62W-6EP-2.2C
- Brand:
- Hirose
Bulk discount available
Subtotal (1 pack of 5 units)*
£6.92
(exc. VAT)
£8.305
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.384 | £6.92 |
| 25 - 45 | £1.176 | £5.88 |
| 50 - 120 | £1.126 | £5.63 |
| 125 + | £1.074 | £5.37 |
*price indicative
- RS Stock No.:
- 175-9986
- Mfr. Part No.:
- DF62W-6EP-2.2C
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Product Type | Crimp Connector Housing | |
| Number of Contacts | 6 | |
| Number of Rows | 2 | |
| Pitch | 2.2mm | |
| Connector Gender | Female | |
| Mount Type | Cable | |
| For Use With | Wire-to-Wire Connectors | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Housing Material | Polybutylene Terephthalate | |
| Series | DF62W | |
| Width | 9.15mm | |
| Length | 11.3mm | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Product Type Crimp Connector Housing | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Pitch 2.2mm | ||
Connector Gender Female | ||
Mount Type Cable | ||
For Use With Wire-to-Wire Connectors | ||
Orientation Straight | ||
Standards/Approvals No | ||
Housing Material Polybutylene Terephthalate | ||
Series DF62W | ||
Width 9.15mm | ||
Length 11.3mm | ||
- COO (Country of Origin):
- CN

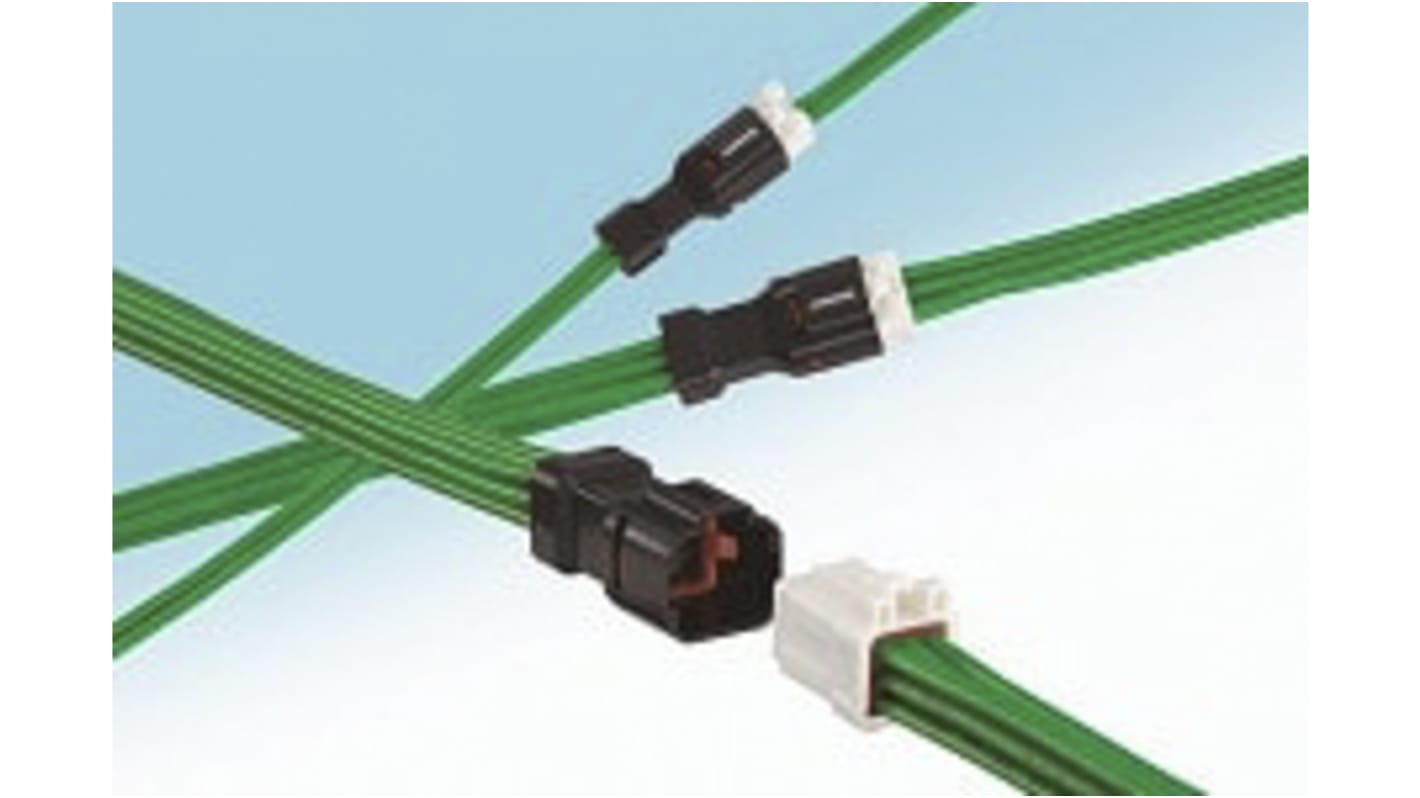

These connectors were designed to take full advantage of small/narrow spaces. The contacts are arranged in a grid pattern which shortens the diagonal distances and the body was slimmed down by creating smooth outer surfaces. This design helps to save precious space and makes these connectors virtually tangle free. There is no visible or exposed metal which would eliminate the possibility of electrical arcing between the connector and the inside of a metal conduit. Secure lock mechanism: The locking structure emits a clear tactile click upon lock completion. After completion, a second indicator can be utilized. The socket lock can be visually checked through the plug window after mating. These indicators function together to prevent incomplete mating.
Water resistant
Secure, positive lock with tactile click and visible lock confirmation
2-point contact structure is both highly reliable and vibration resistant
Easy assembly procedure
Pin count variations available in 2, 3, 4, 6 and 9 positions
