JST, XAD Female Connector Housing, 2.5mm Pitch, 16 Way, 2 Row
- RS Stock No.:
- 175-5604
- Mfr. Part No.:
- XADRP-16V
- Brand:
- JST
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.69
(exc. VAT)
£3.23
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 10 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.269 | £2.69 |
| 50 - 90 | £0.248 | £2.48 |
| 100 - 240 | £0.23 | £2.30 |
| 250 - 490 | £0.218 | £2.18 |
| 500 + | £0.203 | £2.03 |
*price indicative
- RS Stock No.:
- 175-5604
- Mfr. Part No.:
- XADRP-16V
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Pitch | 2.5mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | XAD | |
| For Use With | XAD Connectors | |
| Body Orientation | Straight | |
| Length | 24.7mm | |
| Width | 11.4mm | |
| Housing Material | Polyamide | |
Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Pitch 2.5mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series XAD | ||
For Use With XAD Connectors | ||
Body Orientation Straight | ||
Length 24.7mm | ||
Width 11.4mm | ||
Housing Material Polyamide | ||
- COO (Country of Origin):
- JP

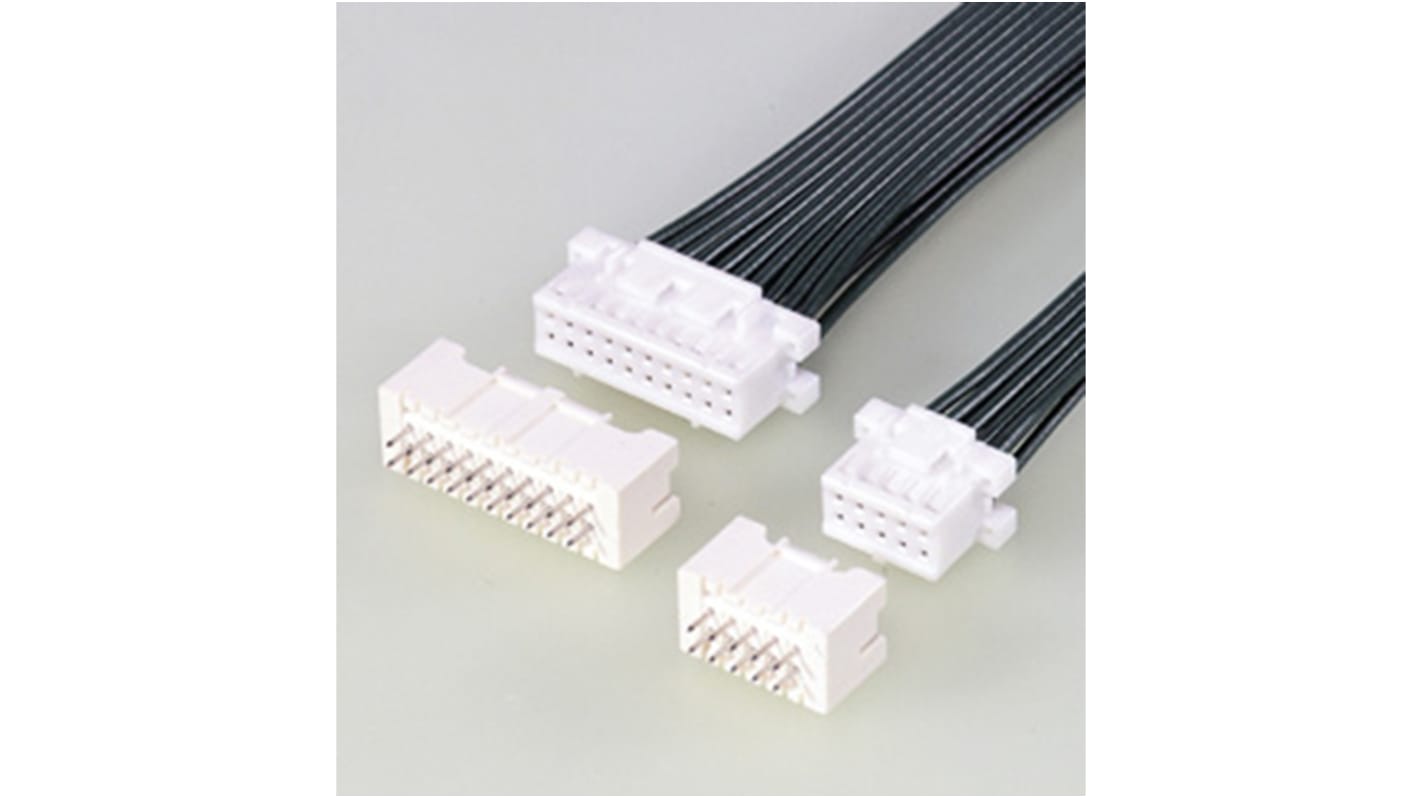

The JST XADRP-16V is a XAD series, 12 way, dual row, 2. 5 mm pitch, female connector housing with secure locking device. It is categorized as disconnectable type crimp style connector (Wire-to-Board type connector).
Secure locking device
Solder crack preventive material
Polarizing boss
Mis-insertion preventive design
Solder crack preventive material
Polarizing boss
Mis-insertion preventive design
