JST, ACH Female Connector Housing, 1.2mm Pitch, 4 Way, 1 Row
- RS Stock No.:
- 175-5503
- Mfr. Part No.:
- ACHR-04V-A-S
- Brand:
- JST
20 In stock - FREE next working day delivery available
240 available from Europe for delivery within 5 working day(s).
Added
Price Each (In a Pack of 10)
£0.20
(exc. VAT)
£0.24
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 40 | £0.20 | £2.00 |
| 50 - 90 | £0.194 | £1.94 |
| 100 - 240 | £0.189 | £1.89 |
| 250 - 490 | £0.184 | £1.84 |
| 500 + | £0.179 | £1.79 |
| *price indicative | ||
- RS Stock No.:
- 175-5503
- Mfr. Part No.:
- ACHR-04V-A-S
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

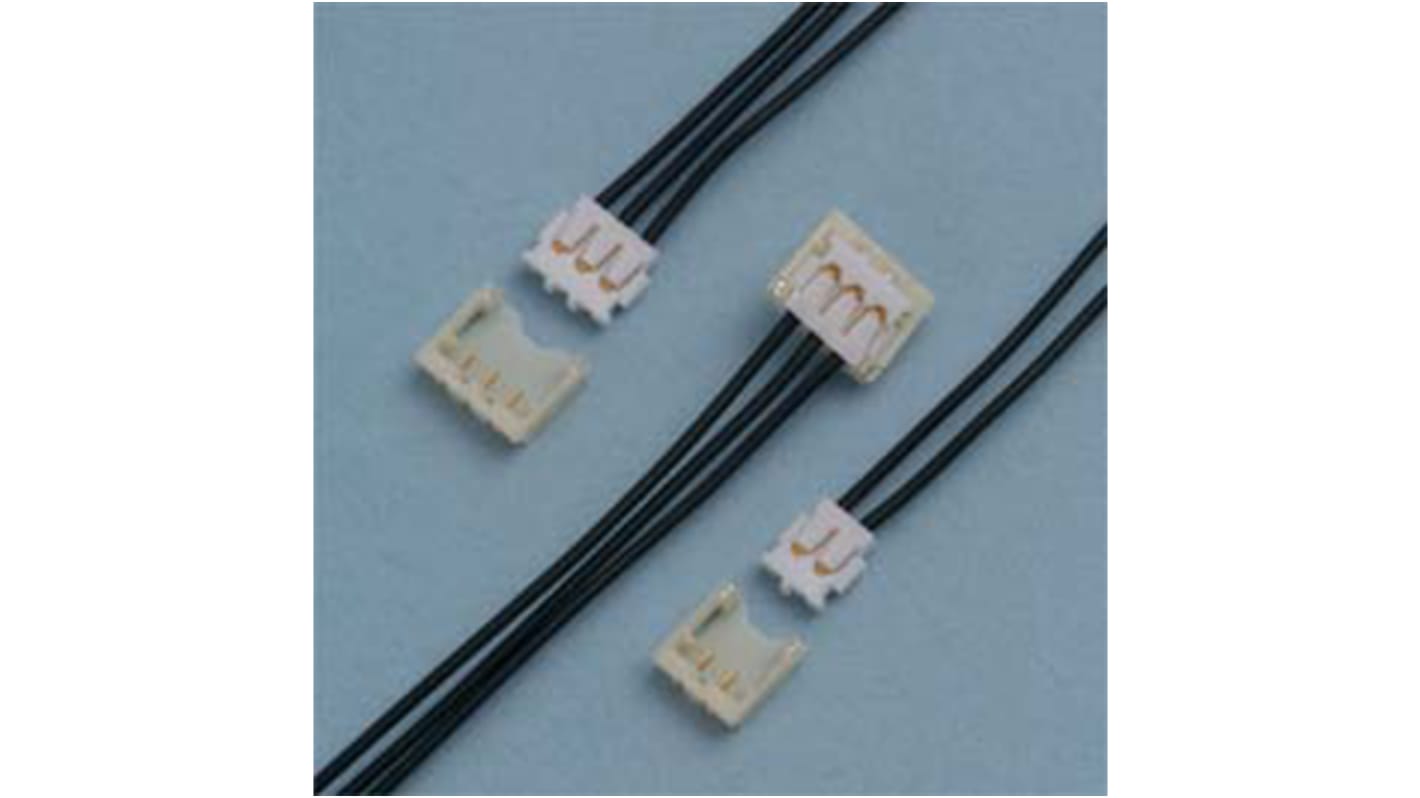

The JST ACHR-01V-A-S is a ACH series, 4 way, single row, 1.2mm pitch, straight, female connector housing made of PBT material for use with ACH connectors. It has a length of 5mm and width of 1.2mm.
corresponding to sucking nozzle of pick and place machine
Top entry but side feed type
Connector for DC power supply
Withstanding voltage: 500 VAC/minute
RoHS compliant
Top entry but side feed type
Connector for DC power supply
Withstanding voltage: 500 VAC/minute
RoHS compliant
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Number of Rows | 1 |
| Pitch | 1.2mm |
| Gender | Female |
| Mounting Type | Cable Mount |
| Series | ACH |
| For Use With | ACH Connectors |
| Body Orientation | Straight |
| Length | 5mm |
| Width | 1.2mm |
| Housing Material | PBT |
