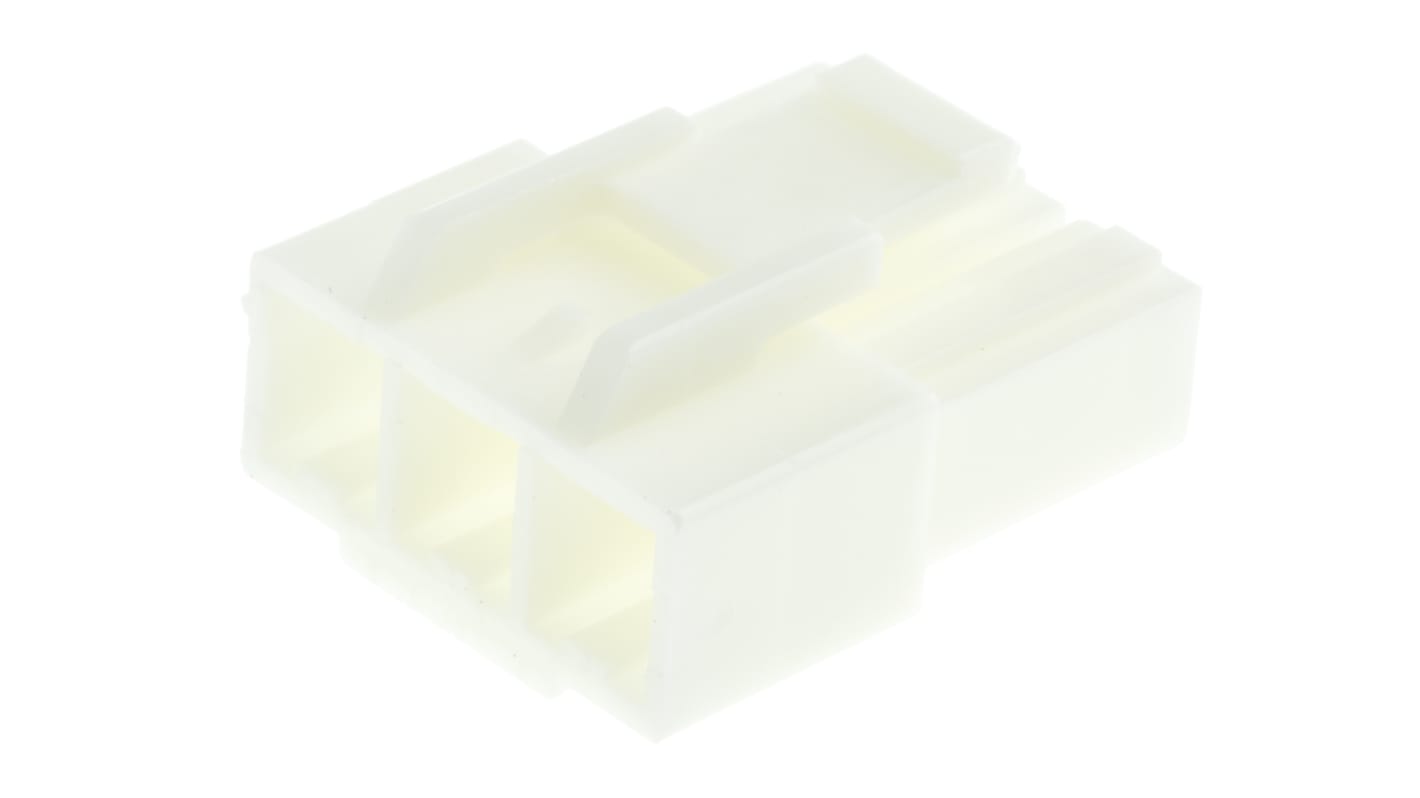

JST, VL Male Connector Housing, 6.2mm Pitch, 3 Way, 1 Row
- RS Stock No.:
- 172-5055
- Mfr. Part No.:
- VLP-03V
- Brand:
- JST
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Bag of 500)
£0.26
(exc. VAT)
£0.31
(inc. VAT)
| Units | Per unit | Per Bag* |
| 500 + | £0.26 | £130.00 |
| *price indicative | ||
- RS Stock No.:
- 172-5055
- Mfr. Part No.:
- VLP-03V
- Brand:
- JST
Technical Reference
Legislation and Compliance
Product Details
JST VL series Plug Housings
The VL Series Plug Housings are UL 94V-0 rated with a natural (white) colour.
For VL Series Crimp Contact Terminals and Cable Assemblies see stock number 512-9235 typical.
For mating VL Series Wire-to Board Headers see stock number 820-1090 typical.
For mating Wire-to-Wire Socket Housings see stock number 502-2746 typical.
820-1138 is a 4 way dual row Plug with Inner-housing Lock
512-8428 is a 4 way dual row Plug with Outer-housing Lock
820-1129 is a 4 way single row Plug with Outer-housing Lock
For VL Series Crimp Contact Terminals and Cable Assemblies see stock number 512-9235 typical.
For mating VL Series Wire-to Board Headers see stock number 820-1090 typical.
For mating Wire-to-Wire Socket Housings see stock number 502-2746 typical.
820-1138 is a 4 way dual row Plug with Inner-housing Lock
512-8428 is a 4 way dual row Plug with Outer-housing Lock
820-1129 is a 4 way single row Plug with Outer-housing Lock
Approvals
UL94V-0
JST VL Range
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 3 |
| Number of Rows | 1 |
| Pitch | 6.2mm |
| Gender | Male |
| Mounting Type | Cable Mount |
| Series | VL |
| For Use With | VL Series Socket Contact |
| Body Orientation | Straight |
| Length | 19.6mm |
| Width | 24mm |
| Housing Material | Polyamide |
