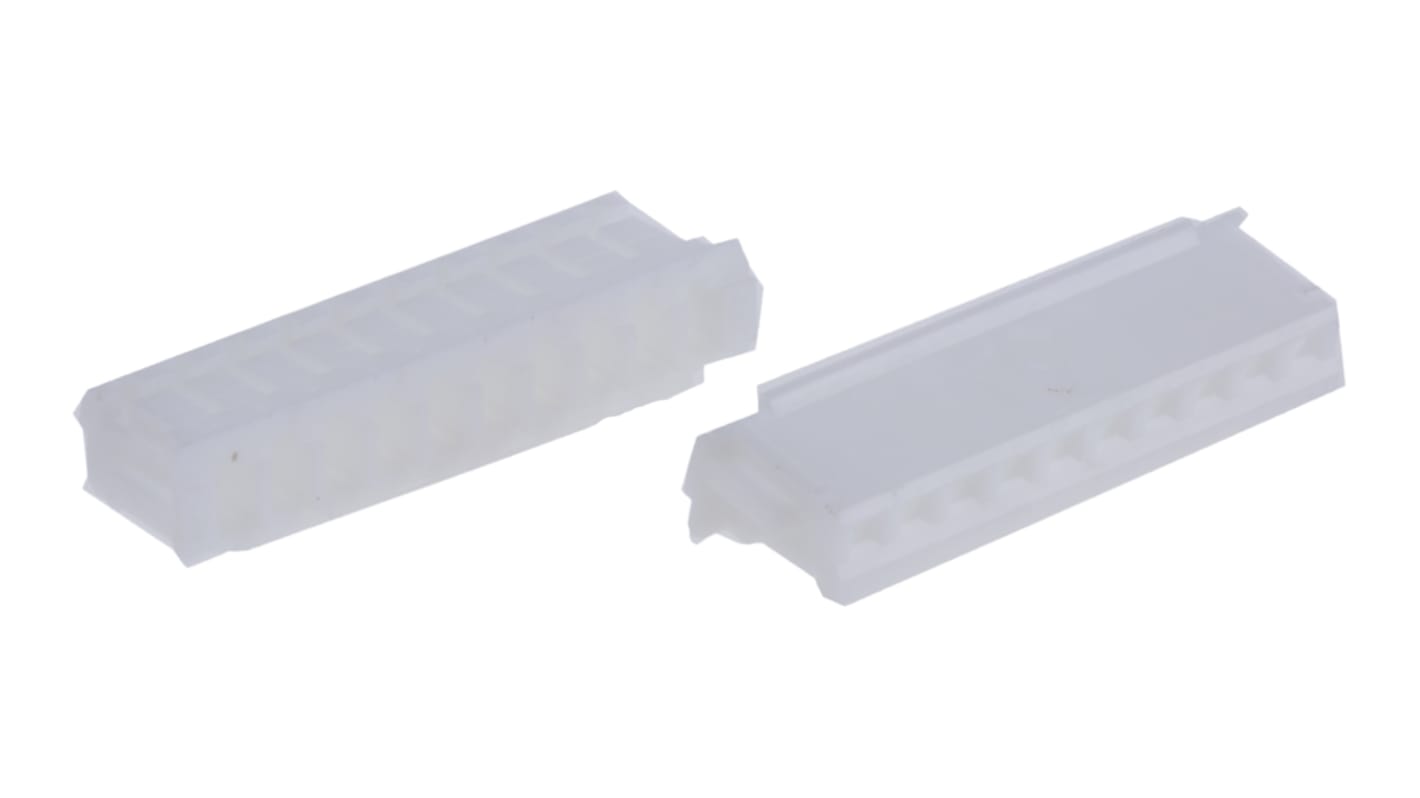

JST, ZH Female Connector Housing, 1.5mm Pitch, 10 Way, 1 Row Side Entry, Top Entry
- RS Stock No.:
- 172-4925
- Mfr. Part No.:
- ZHR-10
- Brand:
- JST
Subtotal (1 bag of 1000 units)*
£70.00
(exc. VAT)
£80.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
1000 + | £0.07 | £70.00 |
*price indicative
- RS Stock No.:
- 172-4925
- Mfr. Part No.:
- ZHR-10
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | JST | |
Number of Contacts | 10 | |
Number of Rows | 1 | |
Pitch | 1.5mm | |
Gender | Female | |
Mounting Type | Cable Mount | |
Series | ZH | |
For Use With | ZH Series Dis-Connectable Crimp Style Connector | |
Body Orientation | Side Entry, Top Entry | |
Length | 16.5mm | |
Width | 4.8mm | |
Housing Material | PA | |
Select all | ||
---|---|---|
Brand JST | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Pitch 1.5mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series ZH | ||
For Use With ZH Series Dis-Connectable Crimp Style Connector | ||
Body Orientation Side Entry, Top Entry | ||
Length 16.5mm | ||
Width 4.8mm | ||
Housing Material PA | ||
- COO (Country of Origin):
- KR
The JST ZH series Connectors
The ZH connectors are very small with a mounting height of 5.6 mm (.220") and a thickness of only 3.5 mm (.138"). Contact retention lances on the housing make insertion easier, while the dimple at the centre of the contact ensures reliable contact with the post.
Features & Benefits
• Compact, low profile design
• Housing lances
• Reliable contact construction
• Compatible with the ZR insulation displacement connectors
1.25mm Wire to Board - JST ZH Series
