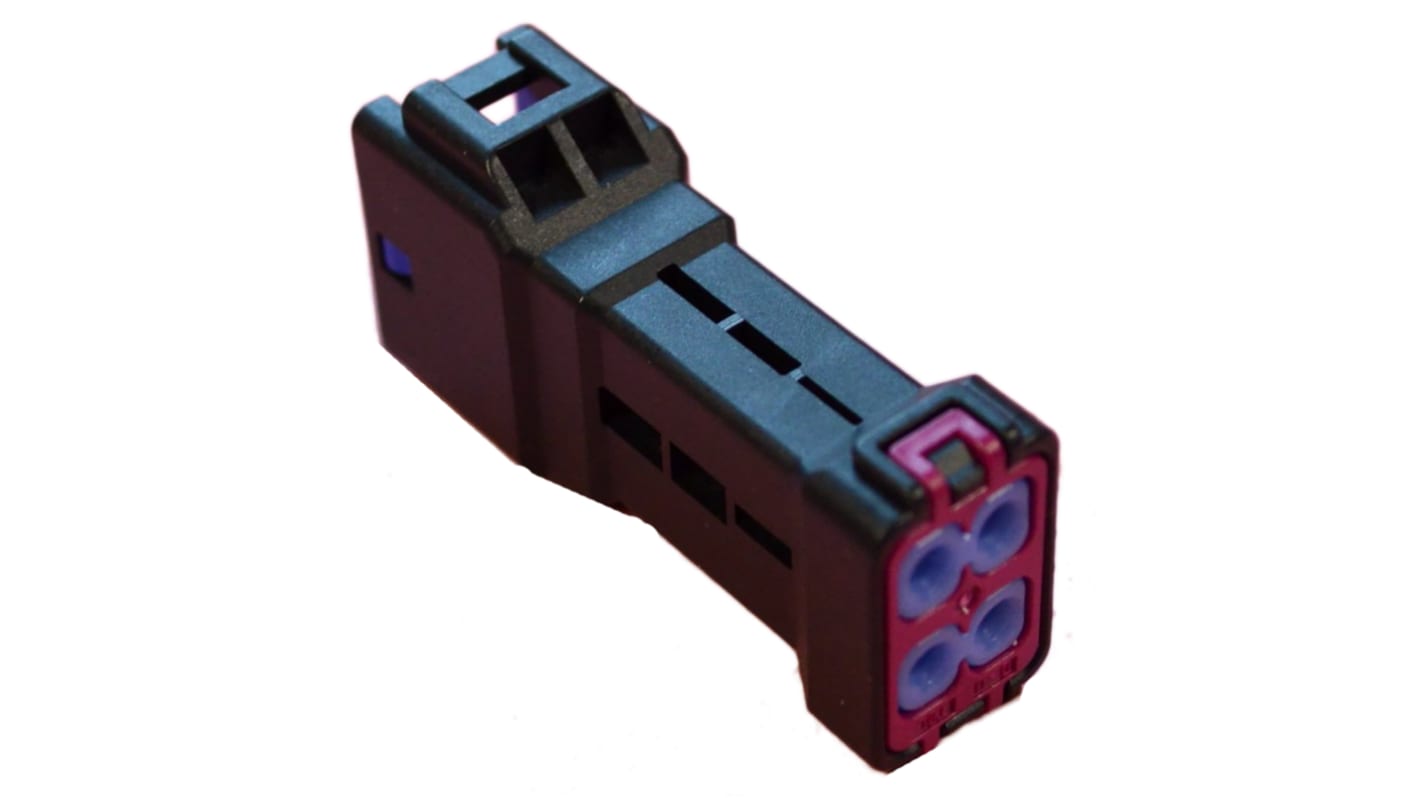

JST, JWPS Female Connector Housing, 4mm Pitch, 4 Way, 2 Row

  • RS Stock No. 161-7840
  • Mfr. Part No. 04R-JWPS-VELE-DZ-A
  • Brand JST
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

JST 4.0mm JWPS Waterproof IP67 Tab and Receptacle Housings

JWPS Series 4.0mm pitch IP67 waterproof wire-to-wire tab and receptacle housings ideal for use in applications where there is extreme moisture or submersion. The JWPS series 4.0mm IP67 tab housings feature a silicon rubber sealing ring on the mating side which offers protection against moisture, dirt and scratches and a solid rubber seal for the wire side sealing. Keying and colour coding on these JWPS waterproof tab and receptacle housing connectors help facilitate accurate mating and a contact locking feature eliminates contact back out and damage. In addition the JWPS series receptacle housings feature a positive locking squeeze to release mechanism for secure mating.
Typical applications for these JWPS Series 4mm waterproof connector housings include automotive, photovoltaics and underwater applications such as cameras.
906-0146 is a 4 way tab housing with Z keying
906-0149 is a 4 way tab housing with X keying
906-0130 is a 4 way receptacle housing with Z keying
906-0133 is a 4 way receptacle housing with X keying
For crimp tab contact see stock number 906-0143
For crimp receptacle contact see stock number 906-0137
The crimp receptacle housings will also mate with the JWPS Series 4.0mm PCB headers

Standards

Grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529)

JST 4.0mm JWPS Waterproof Wire to Wire and Wire to Board Connectors

Specifications
Attribute Value
Number of Contacts 4
Number of Rows 2
Pitch 4mm
Gender Female
Mounting Type Cable Mount
Series JWPS
For Use With JWPS Series Connector
Body Orientation Straight
Length 20mm
Width 11mm
Housing Material Glass Filled PBT
1200 In stock - FREE next working day delivery available
Price Each (In a Bag of 400)
£ 0.494
(exc. VAT)
£ 0.593
(inc. VAT)
Units
Per unit
Per Bag*
400 +
£0.494
£197.60
*price indicative
