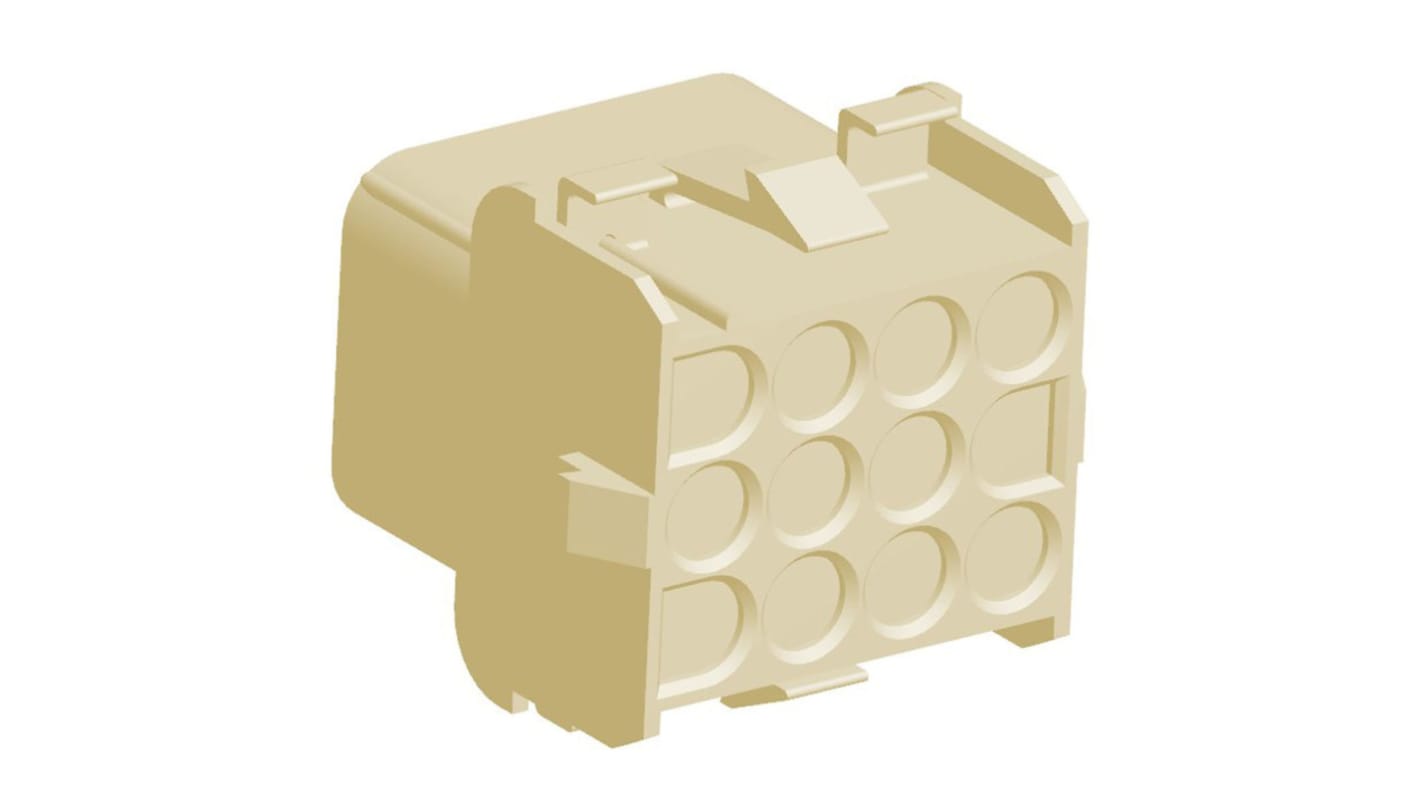

TE Connectivity, Universal MATE-N-LOK Female Connector Housing, 6.35 mm Pitch, 12 Way, 3 Row Straight

Universal MATE-N-LOK connector housings designed to perform to the latest Glow Wire test (GWT) requirement according to IEC 60335-1 and to meet the requirements of UL 94 V-0. These Universal MATE-N-LOK connector housings have a 6.35mm pitch and are MADE from specially designed Glow Wire compatible material with a high flammability rating. Positive locking latches on these Universal MATE-N-LOK connector housings provide a secure mating connection and prevent accidental unmating due to high vibration or shock. The housings are polarized to prevent mismating and an egg-crate design offers improved safety. These Glow Wire Universal MATE-N-LOK connector housings can be used in panel mount or wire to wire applications. Pin and socket contacts can be used in the same housing using standard 0.05 mm to 5 mm² MATE-N-LOK contacts. Rear cavity identification enables easy assembly

These Glow Wire Universal MATE-N-LOK connector housings mate with Glow Wire Universal MATE-N-LOK headers

Meets UL 94 V-0 requirements

Robust and highly reliable

Excellent electrical performance

Positive locking latch for secure mating connection

Polarized housings to prevent mismating

Finger proof egg-crate design

Pins and sockets can be intermixed in same housing

Rear cavity identification

For use in wire to wire and panel mount applications
