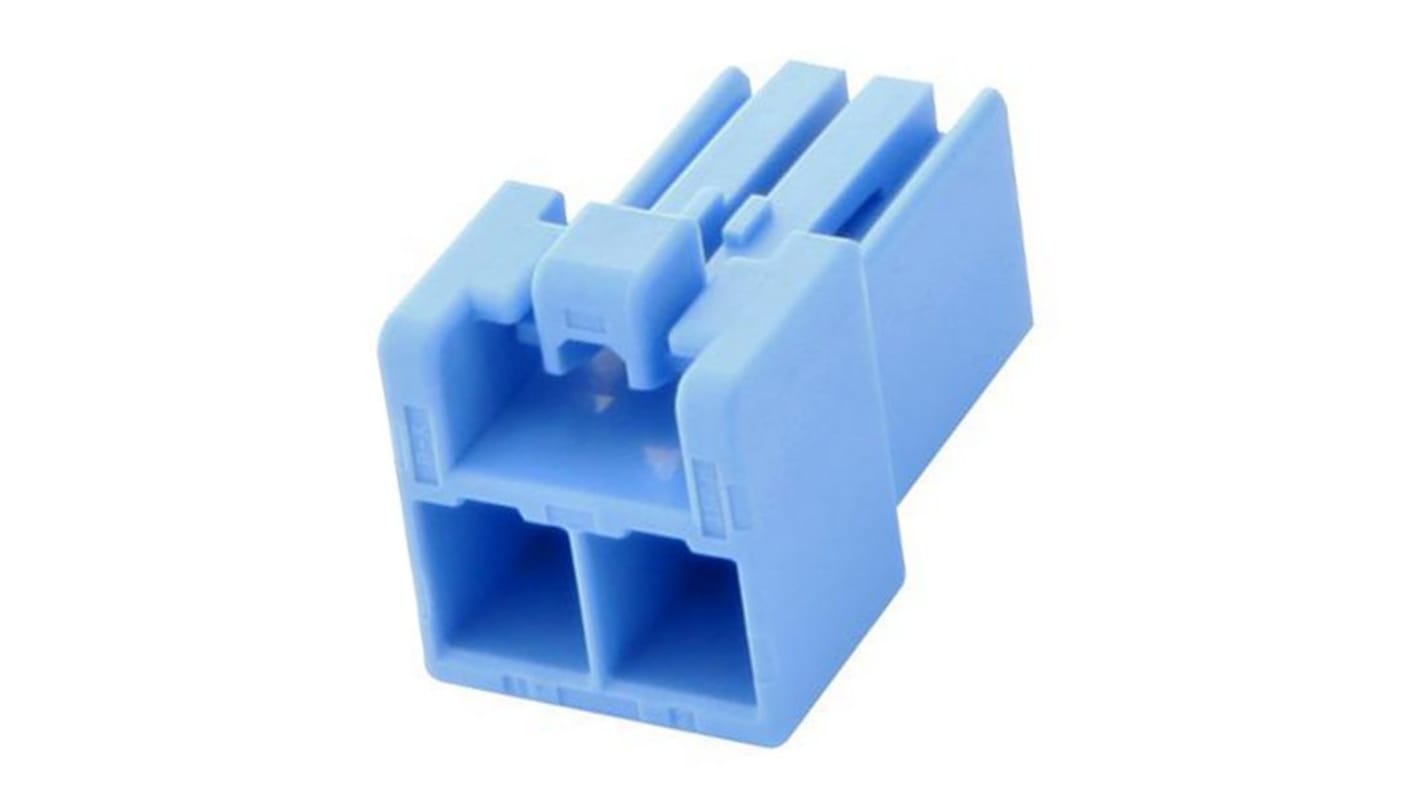

JST, PSI Male Connector Housing, 4 mm Pitch, 2 Way, 1 Row Straight
- RS Stock No.:
- 138-3530
- Mfr. Part No.:
- PSIP-02V-LE-A
- Brand:
- JST
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 500 units)*
£61.50
(exc. VAT)
£74.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 500 unit(s) shipping from 29 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 - 500 | £0.123 | £61.50 |
| 1000 - 1000 | £0.116 | £58.00 |
| 1500 - 1500 | £0.111 | £55.50 |
| 2000 - 2000 | £0.107 | £53.50 |
| 2500 + | £0.104 | £52.00 |
*price indicative
- RS Stock No.:
- 138-3530
- Mfr. Part No.:
- PSIP-02V-LE-A
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Connector Housing | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Pitch | 4mm | |
| Connector Gender | Male | |
| Mount Type | Cable | |
| For Use With | PSI Series Crimp Style Contact | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Length | 8.7mm | |
| Width | 14.9mm | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Series | PSI | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Connector Housing | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Pitch 4mm | ||
Connector Gender Male | ||
Mount Type Cable | ||
For Use With PSI Series Crimp Style Contact | ||
Orientation Straight | ||
Standards/Approvals No | ||
Length 8.7mm | ||
Width 14.9mm | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
Series PSI | ||
- COO (Country of Origin):
- MY
JST 4.00 mm PSI Series Crimp Connector Housings
4.00 mm PSI Series cable mount crimp connector housings for use in wire to board and wire to wire applications. These PSI Series connector housings feature a locking mechanism for a secure mating connection. The single row versions have keying notches to prevent misalignment and mismating and are colour coded according to the keying type. These PSI crimp housings are available in two versions:
Part numbers PSIP-0xV-LE-A are socket housings that mate with PSI series PCB headers and PSI series cable mount pin housings
Part numbers PSIR-0xV-LE-A are pin housings that mate with PSI series cable mount socket housings
The PSI cable mount pin housings also feature mounting ears enabling them to be panel mounted;The contacts for these PSI connector housings require purchasing separately
Features and Benefits
• Locking mechanism for secure mating connection
• Keying and colour coding to prevent mismating
• Finger friendly design
• Panel mounting ears on pin housing version
