TE Connectivity, Universal MATE-N-LOK Female Connector Housing, 6.35 mm Pitch, 9 Way, 3 Row Straight
- RS Stock No.:
- 136-1887
- Mfr. Part No.:
- 927231-3
- Brand:
- TE Connectivity
Subtotal (1 bag of 1000 units)*
£478.00
(exc. VAT)
£574.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 + | £0.478 | £478.00 |
*price indicative
- RS Stock No.:
- 136-1887
- Mfr. Part No.:
- 927231-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 9 | |
| Product Type | Connector Housing | |
| Number of Rows | 3 | |
| Pitch | 6.35mm | |
| Connector Gender | Female | |
| Mount Type | Cable | |
| For Use With | Universal Mate-N-Lok Plug or Socket Housing | |
| Orientation | Straight | |
| Series | Universal MATE-N-LOK | |
| Length | 29.7mm | |
| Width | 25.3mm | |
| Housing Material | Polyamide | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 9 | ||
Product Type Connector Housing | ||
Number of Rows 3 | ||
Pitch 6.35mm | ||
Connector Gender Female | ||
Mount Type Cable | ||
For Use With Universal Mate-N-Lok Plug or Socket Housing | ||
Orientation Straight | ||
Series Universal MATE-N-LOK | ||
Length 29.7mm | ||
Width 25.3mm | ||
Housing Material Polyamide | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- GB
Socket/Receptacle Housing
The Mini-Universal MATE-N-LOK connector system for wire to wire and wire to board connections on a 4.14mm centreline. The connectors have a Compact and Durable design and can achieve a maximum electrical performance with current ratings of up to 9.5 A max per line. The Mini-Universal MATE-N-LOK connector system consists of plug and cap housings and PCB headers. The plug and cap housings can accept a combination of both pins and sockets in the same housing.
Features and benefits:
• Made from a strong and sturdy 'Nylon 66' material
• -20°C to +105°C operating temperatures
• Fully polarised housings
• Accepts male or female contacts
TE Connectivity Mini-Universal MATE-N-LOK Connector System
Note

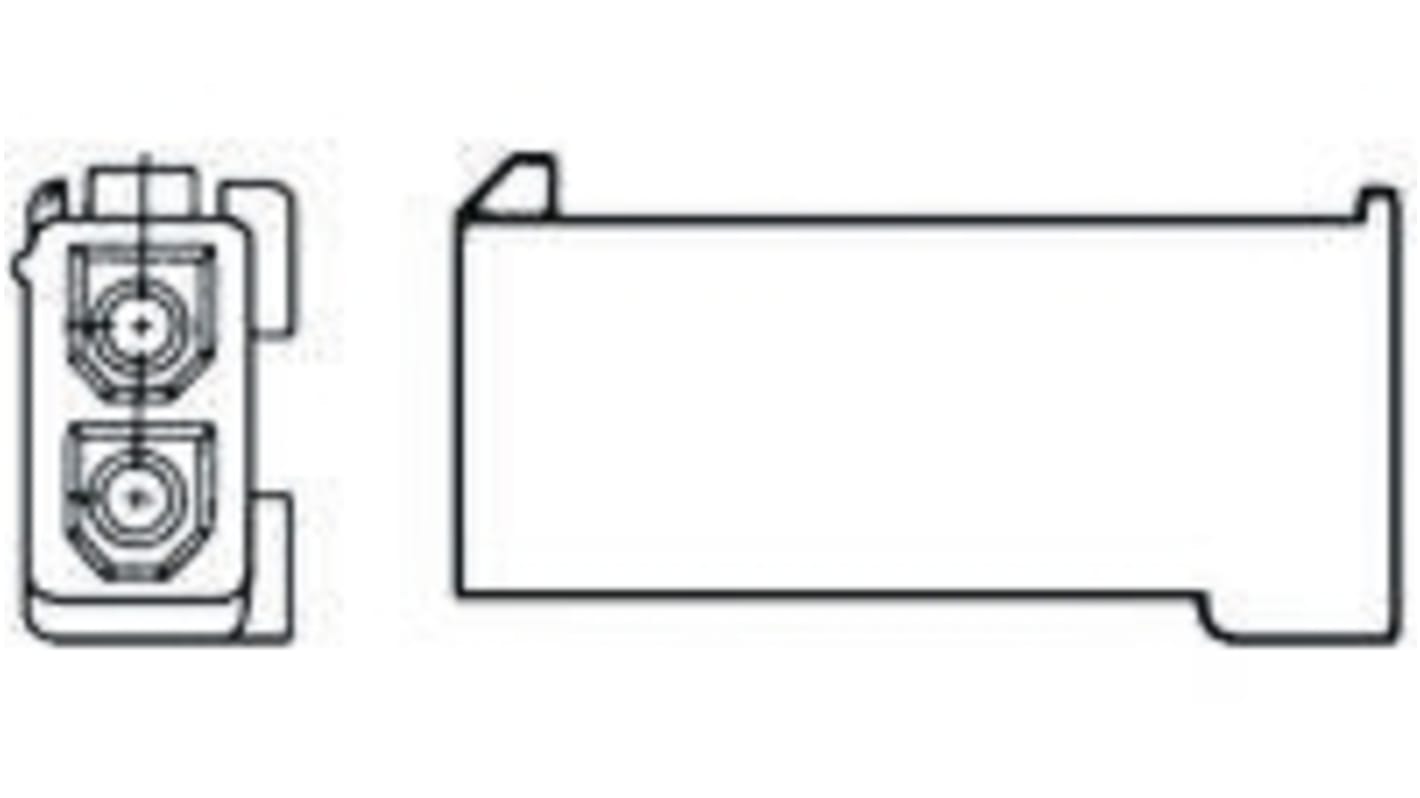

Images are a representitive only.
