Molex, 224556 Plug Housing Plug, 2.5mm Pitch, 16 Way, 2 Row
- RS Stock No.:
- 309-074
- Mfr. Part No.:
- 2245561316
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 10 units)*
£4.71
(exc. VAT)
£5.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 - 4 | £4.71 | £0.471 |
| 5 - 9 | £4.33 | £0.433 |
| 10 + | £3.81 | £0.381 |
*price indicative
- RS Stock No.:
- 309-074
- Mfr. Part No.:
- 2245561316
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Pitch | 2.5mm | |
| Gender | Plug | |
| Series | 224556 | |
| Body Orientation | Straight | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Pitch 2.5mm | ||
Gender Plug | ||
Series 224556 | ||
Body Orientation Straight | ||
- COO (Country of Origin):
- CN

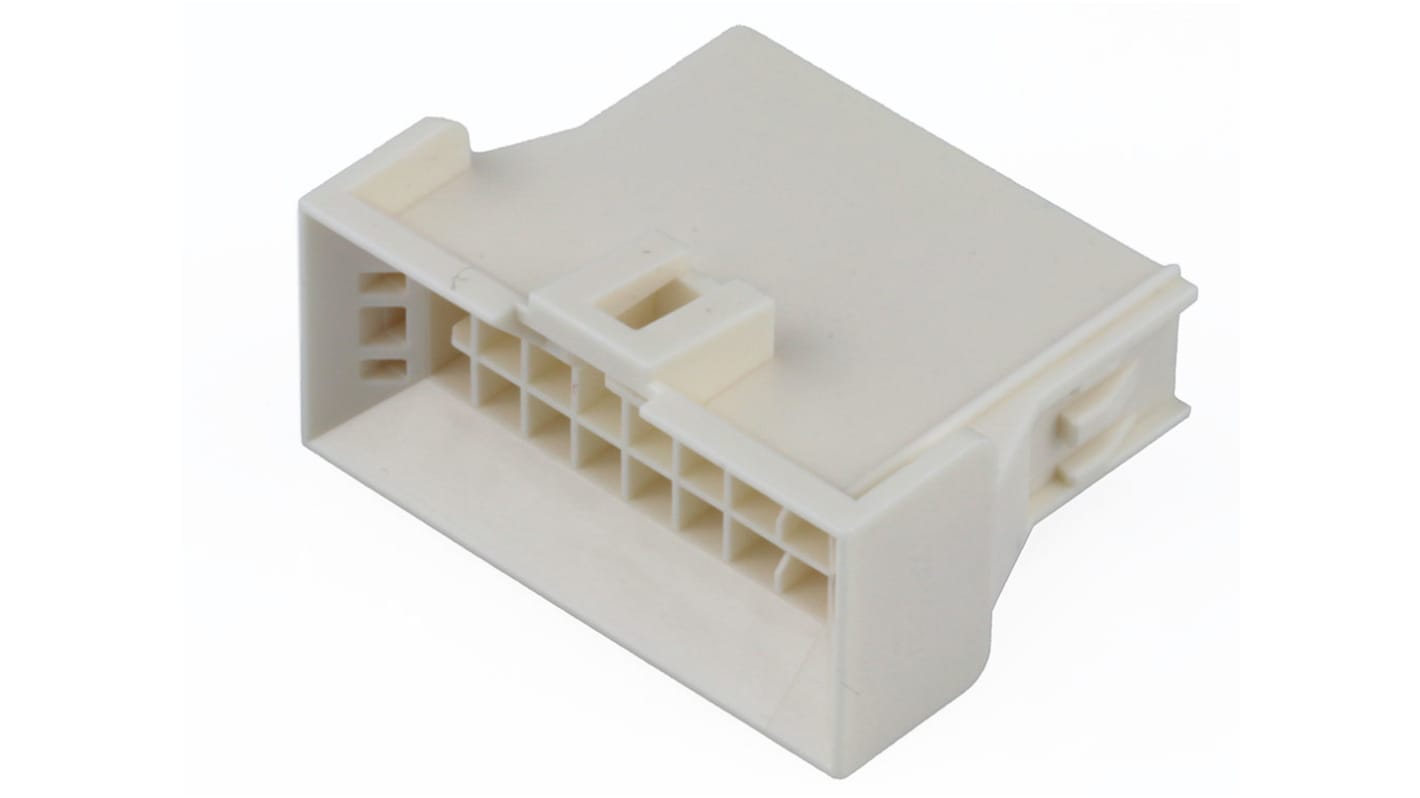

The Molex Nano-Fit BMI plug housing features a 2.50mm pitch with a dual row configuration and 16 circuits. It is TPA capable for secure and accurate terminal placement. The natural colored housing is glow wire capable, offering enhanced safety and heat resistance. This plug housing is suitable for high performance and reliable connections in environments requiring durability and thermal safety.
EU RoHS and REACH SVHC compliance
Low Halogen
IEC-62474 standard
IPC 1752A Class C compliance
IPC 1752A Class D compliance
Low Halogen
IEC-62474 standard
IPC 1752A Class C compliance
IPC 1752A Class D compliance
