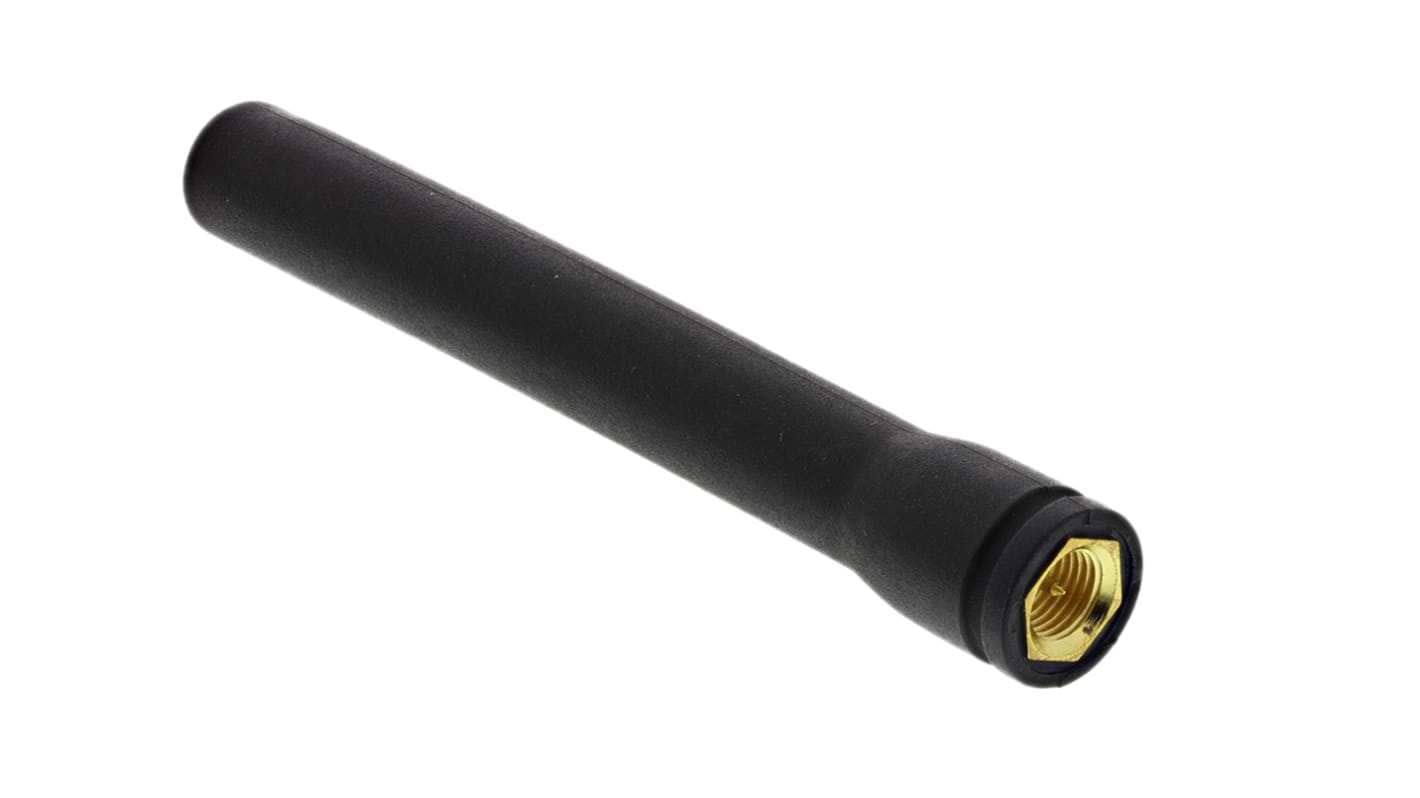

RF Solutions ANT-2WHIP3-SMA Whip WiFi Antenna with SMA Connector, WiFi
- RS Stock No.:
- 793-4379
- Mfr. Part No.:
- ANT-2WHIP3-SMA
- Brand:
- RF Solutions
Bulk discount available
Subtotal (1 unit)*
£4.66
(exc. VAT)
£5.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 240 unit(s) ready to ship
- Plus 34 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £4.66 |
5 - 9 | £4.46 |
10 - 24 | £4.23 |
25 - 49 | £3.94 |
50 + | £3.67 |
*price indicative
- RS Stock No.:
- 793-4379
- Mfr. Part No.:
- ANT-2WHIP3-SMA
- Brand:
- RF Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RF Solutions | |
Internal/External | External | |
RF Protocols | WiFi | |
Frequency Range | 2.4 GHz | |
Antenna Physical Form | Whip | |
Antenna Mounting Type | Direct | |
Mounting Type | Direct | |
Connector Type | SMA | |
Gain | 3dBi | |
Connector Gender | Male | |
Antenna Directivity | Omnidirectional | |
Weight | 6g | |
Dimensions | 10 (Dia.) x 80mm | |
Height | 80mm | |
Select all | ||
---|---|---|
Brand RF Solutions | ||
Internal/External External | ||
RF Protocols WiFi | ||
Frequency Range 2.4 GHz | ||
Antenna Physical Form Whip | ||
Antenna Mounting Type Direct | ||
Mounting Type Direct | ||
Connector Type SMA | ||
Gain 3dBi | ||
Connector Gender Male | ||
Antenna Directivity Omnidirectional | ||
Weight 6g | ||
Dimensions 10 (Dia.) x 80mm | ||
Height 80mm | ||
- COO (Country of Origin):
- CN
RF Solutions - 2.4 GHz Antenna
RF Solutions provide various styles of 2.4GHz gain antennas. The active gain on the antennas in this range cover from +3dBi , +9dBi , +12dBi up to +16dB. Robust Fibreglass Rod, Whip / Hinged Whip, Yagi to miniature surface mount models available. Some of the radio antennas work in any direction these are the Omnidirectional types.
Applications include WLAN, WiFi and range extension where high performance is needed making them capable of a higher level of power. The Outside 2400 is intended for M2M Industrial, Zigbee and Bluetooth applications.
Applications include WLAN, WiFi and range extension where high performance is needed making them capable of a higher level of power. The Outside 2400 is intended for M2M Industrial, Zigbee and Bluetooth applications.
· Fibre Glass Rod, VSWR 1.8
· +9dBi Hinged WHIP Gain - VSWR <2.0
· +3dBi Whip Antenna - VSWR <2.0
· +16dBi Yagi Antenna - VSWR <2.0:1
· Outside-2400- VSWR <3:1
· Compliant with IEEE 802.11b and 802.11g wireless LANs
· +9dBi Hinged WHIP Gain - VSWR <2.0
· +3dBi Whip Antenna - VSWR <2.0
· +16dBi Yagi Antenna - VSWR <2.0:1
· Outside-2400- VSWR <3:1
· Compliant with IEEE 802.11b and 802.11g wireless LANs
2.4GHz Antennas
