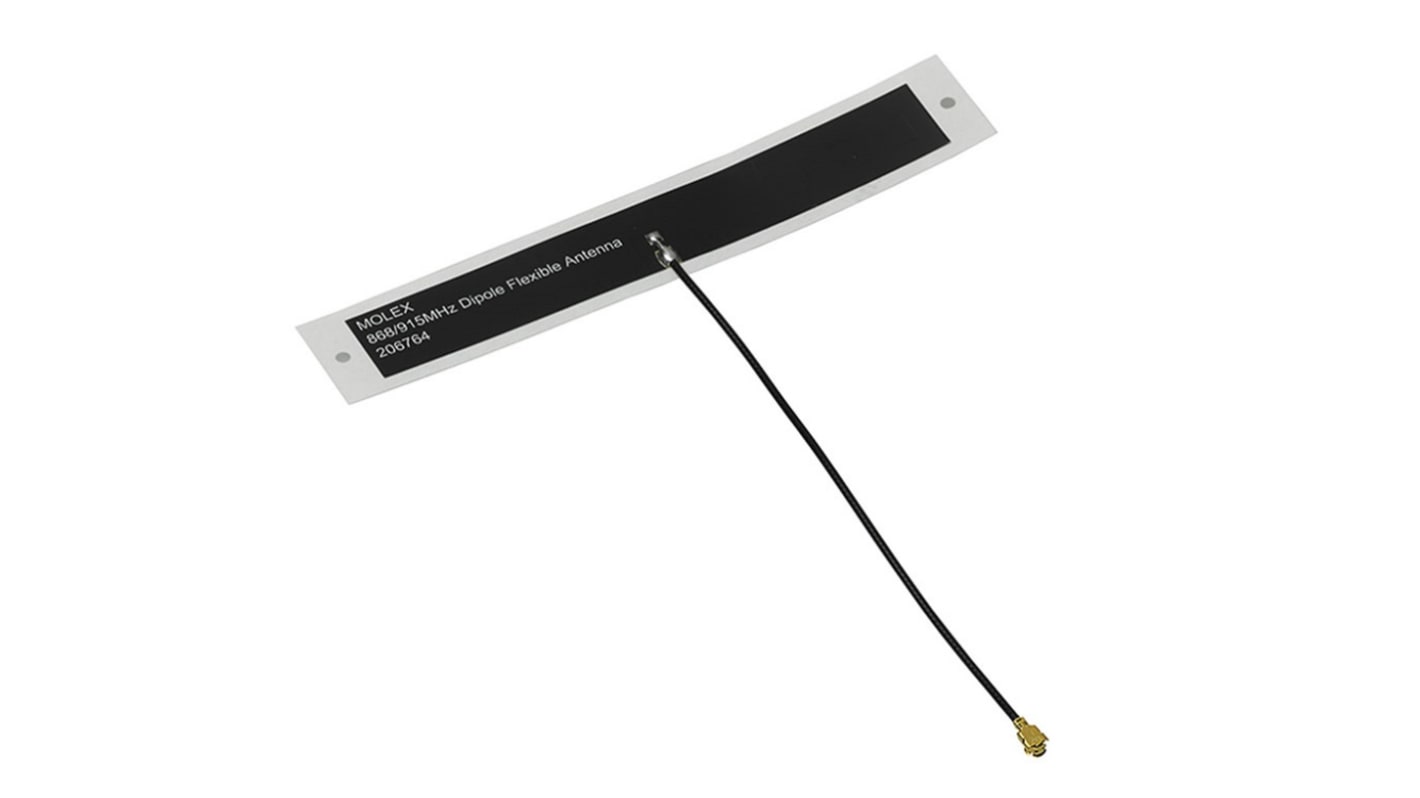

Molex 206764-0100 Patch WiFi Antenna with MHF Connector, ISM Band
- RS Stock No.:
- 186-5522
- Mfr. Part No.:
- 206764-0100
- Brand:
- Molex
Subtotal (1 tray of 12 units)*
£22.008
(exc. VAT)
£26.412
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 648 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
---|---|---|
12 + | £1.834 | £22.01 |
*price indicative
- RS Stock No.:
- 186-5522
- Mfr. Part No.:
- 206764-0100
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Internal/External | Internal | |
RF Protocols | ISM Band | |
Frequency Range | 868 MHz, 915 MHz | |
Antenna Physical Form | Patch | |
Connector Type | MHF | |
Mounting Type | Adhesive Mount | |
Antenna Mounting Type | Adhesive | |
Gain | 1.2dBi | |
Cable Length | 100mm | |
Antenna Directivity | Omnidirectional | |
Antenna Internal Construction | Dipole | |
Weight | 0.872g | |
Width | 12.40mm | |
Series | 206764 | |
Select all | ||
---|---|---|
Brand Molex | ||
Internal/External Internal | ||
RF Protocols ISM Band | ||
Frequency Range 868 MHz, 915 MHz | ||
Antenna Physical Form Patch | ||
Connector Type MHF | ||
Mounting Type Adhesive Mount | ||
Antenna Mounting Type Adhesive | ||
Gain 1.2dBi | ||
Cable Length 100mm | ||
Antenna Directivity Omnidirectional | ||
Antenna Internal Construction Dipole | ||
Weight 0.872g | ||
Width 12.40mm | ||
Series 206764 | ||
- COO (Country of Origin):
- CN
Molex 206764 Series , 868 MHz Frequency Range, 1.2 dBi Gain - 206764-0100
This is a flexible ISM 868/915 MHz dipole antenna designed for internal applications. It features an adhesive mount, making it convenient to install across various devices and environments. The antenna, measuring 87.40mm in length, includes a cable length of 100mm and is built for compatibility with MHF connectors, offering an efficient solution for low gain WiFi signals.
Features & Benefits
• Omnidirectional design enhances signal coverage in all directions
• 1.2 dBi gain provides efficient performance in both 868 MHz and 915 MHz bands
• Adhesive mounting allows for easy and secure installation
• Compact form factor suitable for tight spaces and internal use
• Compatible with various protocols such as LoRa and Zigbee for versatility
• Robust dipole construction ensures reliable, durable operation
• 1.2 dBi gain provides efficient performance in both 868 MHz and 915 MHz bands
• Adhesive mounting allows for easy and secure installation
• Compact form factor suitable for tight spaces and internal use
• Compatible with various protocols such as LoRa and Zigbee for versatility
• Robust dipole construction ensures reliable, durable operation
Applications
• Used in automated electrical systems for enhanced connectivity
• Suitable for wireless sensor networks in industrial settings
• Employed in consumer electronics where space is limited
• Utilised in smart home devices for seamless communication
• Ideal for installations requiring reliable internal antennas
• Suitable for wireless sensor networks in industrial settings
• Employed in consumer electronics where space is limited
• Utilised in smart home devices for seamless communication
• Ideal for installations requiring reliable internal antennas
How does the adhesive mounting impact installation in confined areas?
The adhesive mounting simplifies installation, allowing for secure application in tight spaces without the need for additional hardware, making it suitable for various equipment.
What types of environments are ideal for this antenna?
This antenna is ideal for indoor environments, particularly in settings requiring low gain communication, such as home automation and industrial applications where conventional antennas may not fit.
What protocols can this antenna effectively support?
It supports multiple protocols, including LoRa, SigFox, and Z-Wave, enabling integration into diverse communication systems for varied application needs.
What are the considerations for ensuring proper performance of this antenna?
To ensure optimal performance, it is important to mount the antenna in an unobstructed area, maintaining proper clearance from any potential interference sources that could affect signal strength.
