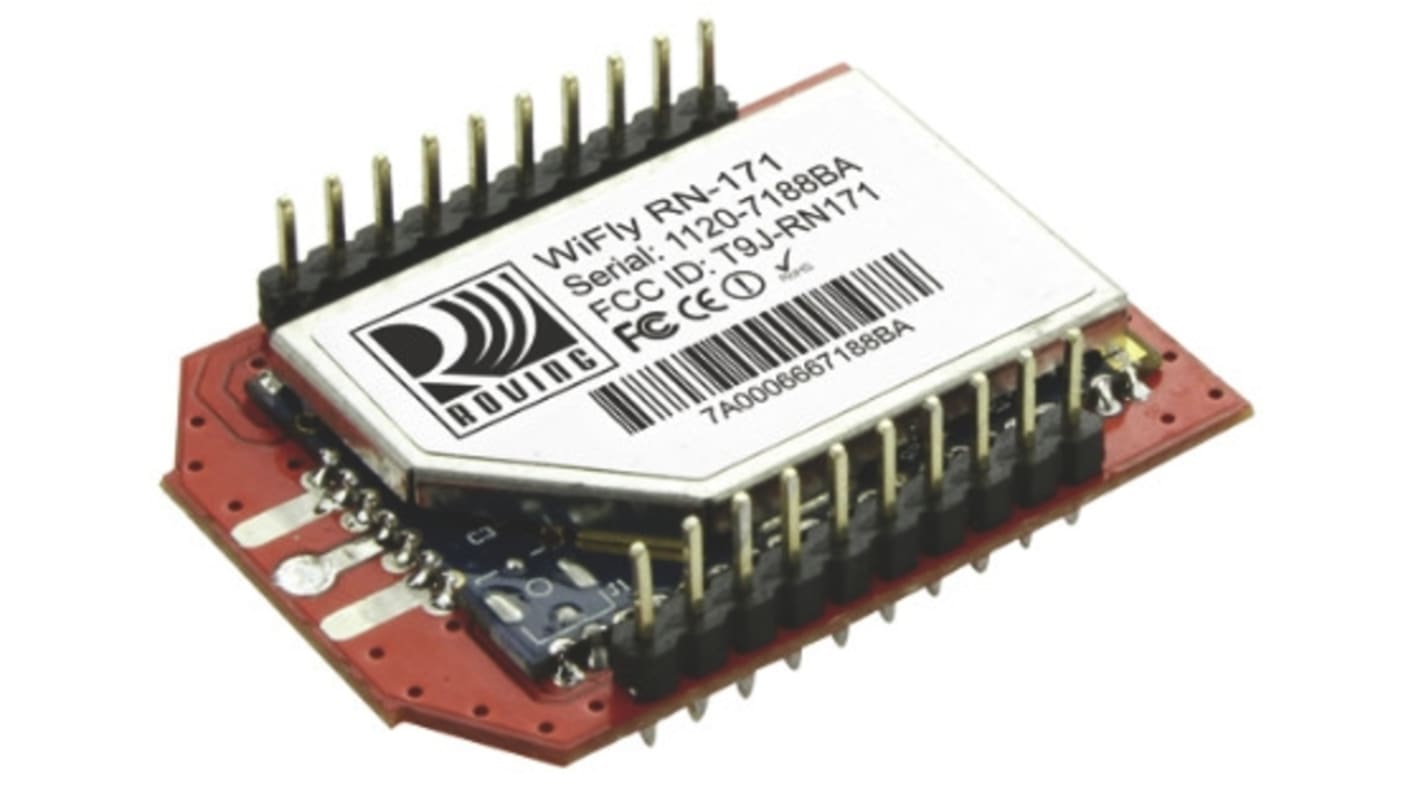

Microchip RN171XVW-I/RM 3.7V WiFi Module, 802.11b/g
- RS Stock No.:
- 769-4144
- Mfr. Part No.:
- RN171XVW-I/RM
- Brand:
- Microchip
View all Wi-Fi Modules
31 In stock - FREE next working day delivery available
Price Each
£42.62
(exc. VAT)
£51.14
(inc. VAT)
Units | Per unit |
1 - 24 | £42.62 |
25 - 99 | £41.34 |
100 + | £39.85 |
- RS Stock No.:
- 769-4144
- Mfr. Part No.:
- RN171XVW-I/RM
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
RN-171-XV 802.11b/g WiFi Modules
The RN-171-XV series from Microchip are certified IEEE 802.11b/g WiFi modules that incorporate a 32 bit SPARC processor, TCP/IP stack, real-time clock, crypto accelerator, power management unit and an analogue sensor interface. These modules are specially designed to allow the migration from existing 802.15.4 architecture to a more standard TCP/IP-based platform without the need for hardware redesign.
RF Carrier Frequency: 2.4GHz ISM Band
RF Transmit Power: up to +12dBm
Receiver sensitivity: -83dBm
Host communication: serial UART
Host data rate: 464kbps with RTS/CTS flow control
8 x GPIO pins
3 x analogue sensor inputs
Real-time clock for wakeup and time stamping
Antenna options: Wire (RS 769-4144), SMA connector (RS 769-4141), U.FL connector (RS 841-7481)
On-board TCP/IP stack
No custom profiles needed
Embedded networking applications: DHCP, DNS, ARP, ICMP UDP, Telnet, FTP client and HTML client
Security: WEP, WPA and WPA2-PSK
WPS mode for easy configuration
Drop in WiFi replacement for existing systems that currently use 802.15.4 modules
Ultra-low power: 4μA sleep, 40mA Rx, 180mA Tx @ 10dBm
Power supply: +3.0V to +3.7Vdc
Operating temperature range: -40 to +85°C
FCC/CE/ICS certified
Applications: Industrial metering, HVAC control, Room temperature sensors, Pump configuration and control, Telemetry, PV/solar controllers, Robotics, local communication for the Internet of Things (IoT)
RF Transmit Power: up to +12dBm
Receiver sensitivity: -83dBm
Host communication: serial UART
Host data rate: 464kbps with RTS/CTS flow control
8 x GPIO pins
3 x analogue sensor inputs
Real-time clock for wakeup and time stamping
Antenna options: Wire (RS 769-4144), SMA connector (RS 769-4141), U.FL connector (RS 841-7481)
On-board TCP/IP stack
No custom profiles needed
Embedded networking applications: DHCP, DNS, ARP, ICMP UDP, Telnet, FTP client and HTML client
Security: WEP, WPA and WPA2-PSK
WPS mode for easy configuration
Drop in WiFi replacement for existing systems that currently use 802.15.4 modules
Ultra-low power: 4μA sleep, 40mA Rx, 180mA Tx @ 10dBm
Power supply: +3.0V to +3.7Vdc
Operating temperature range: -40 to +85°C
FCC/CE/ICS certified
Applications: Industrial metering, HVAC control, Room temperature sensors, Pump configuration and control, Telemetry, PV/solar controllers, Robotics, local communication for the Internet of Things (IoT)
WLAN (Wireless Local Area Network) - Microchip Technology
Specifications
Attribute | Value |
Supported Protocol | 802.11b/g |
Supported Security Standards | WEP, WPA2-PSK, WPA-PSK |
Supply Voltage | 3.7V |
Dimensions | 34.29 x 24.38mm |
