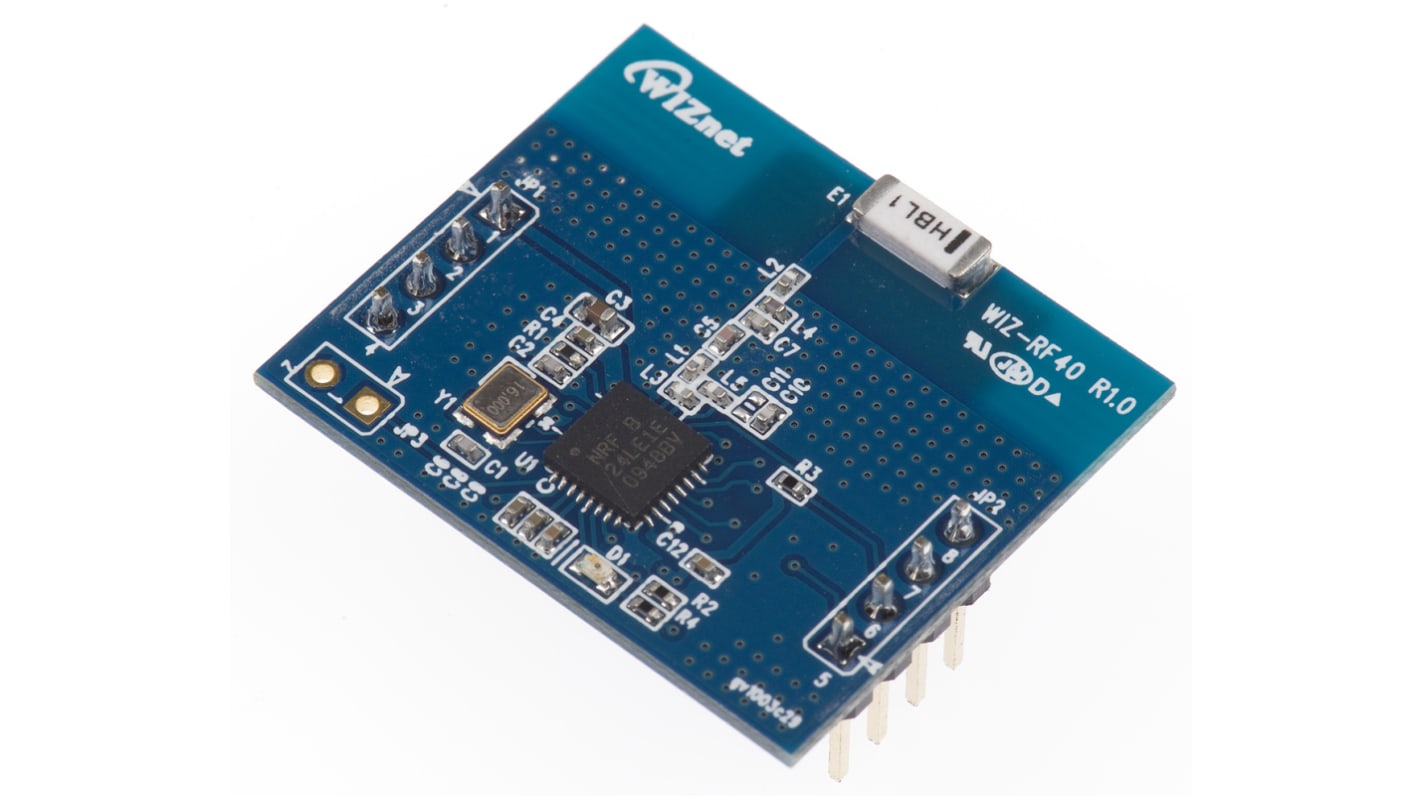

WIZnet Inc WIZ-RF40 1.9 → 3.6V WLAN Module UART
- RS Stock No.:
- 725-7701
- Mfr. Part No.:
- WIZ-RF40
- Brand:
- WIZnet Inc
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 725-7701
- Mfr. Part No.:
- WIZ-RF40
- Brand:
- WIZnet Inc
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIZnet Inc | |
| Supported Bus Interfaces | UART | |
| Supply Voltage | 1.9 → 3.6V | |
| Dimensions | 25 x 30 x 11.6mm | |
| Height | 11.6mm | |
| Length | 30mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 25mm | |
| Select all | ||
|---|---|---|
Brand WIZnet Inc | ||
Supported Bus Interfaces UART | ||
Supply Voltage 1.9 → 3.6V | ||
Dimensions 25 x 30 x 11.6mm | ||
Height 11.6mm | ||
Length 30mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 25mm | ||
- COO (Country of Origin):
- KR
2.4GHz RF to Serial Module
RF to Serial Module
Worldwide 2.4GHz ISM band operation, 126 RF channels
Ultra low power, compact and low cost RF transceiver
Up to 2Mbps on-air data rate
Enhanced ShockBurst™ hardware link layer
Fast Microcontroller (8051 compatible)
Support to bidirectional transparent mode (UART)
Support to command mode for RF parameter setting (UART)
Embedded Chip ANT for efficient radiation
Embedded status LED
Support 8-bit Uart data communication (up to 57600 bps)
Compact dimensions 30 x 25 x 11.6 mm
Worldwide 2.4GHz ISM band operation, 126 RF channels
Ultra low power, compact and low cost RF transceiver
Up to 2Mbps on-air data rate
Enhanced ShockBurst™ hardware link layer
Fast Microcontroller (8051 compatible)
Support to bidirectional transparent mode (UART)
Support to command mode for RF parameter setting (UART)
Embedded Chip ANT for efficient radiation
Embedded status LED
Support 8-bit Uart data communication (up to 57600 bps)
Compact dimensions 30 x 25 x 11.6 mm
