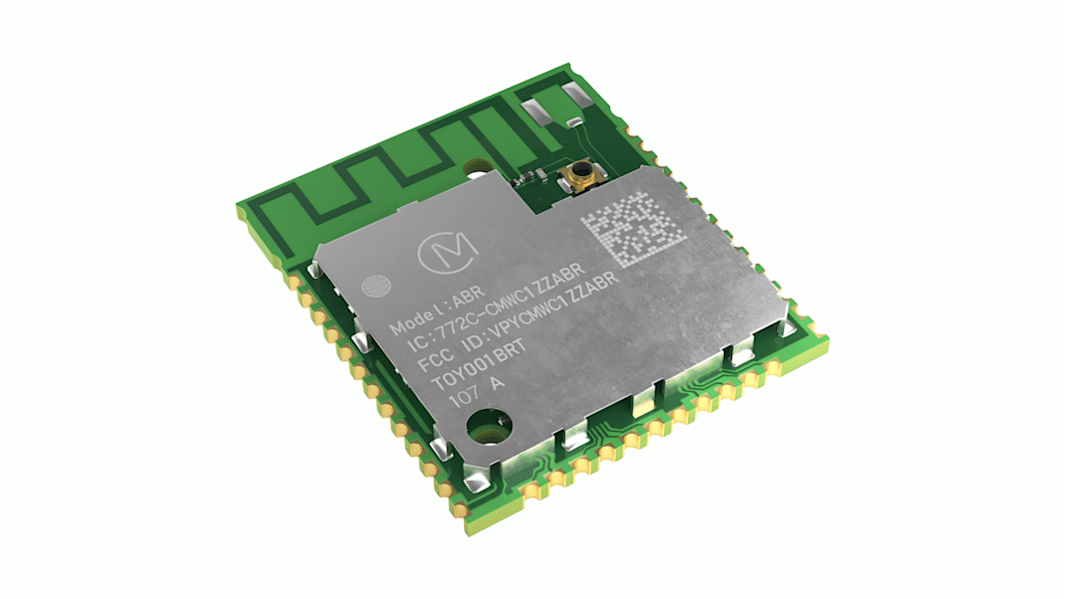

Murata Power Solutions CMWC1ZZABR-107 3.6 V WiFi Module, 802.11 b/g/n
- RS Stock No.:
- 267-6223
- Mfr. Part No.:
- CMWC1ZZABR-107
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal (1 unit)*
£8.62
(exc. VAT)
£10.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,079 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £8.62 |
| 10 - 24 | £7.82 |
| 25 - 99 | £7.55 |
| 100 - 499 | £7.36 |
| 500 + | £7.18 |
*price indicative
- RS Stock No.:
- 267-6223
- Mfr. Part No.:
- CMWC1ZZABR-107
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Product Type | WiFi Module | |
| Supported Security Standards | WLAN | |
| Frequency | 2472MHz | |
| Height | 2.4mm | |
| Length | 22mm | |
| Interface Type | GPIO, UART | |
| Minimum Supply Voltage | 3V | |
| Width | 19 mm | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -30°C | |
| Supported Protocols | 802.11 b/g/n | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Product Type WiFi Module | ||
Supported Security Standards WLAN | ||
Frequency 2472MHz | ||
Height 2.4mm | ||
Length 22mm | ||
Interface Type GPIO, UART | ||
Minimum Supply Voltage 3V | ||
Width 19 mm | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -30°C | ||
Supported Protocols 802.11 b/g/n | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CN
The Murata ABR shielded wi-fi module is a compact low power wide area network with moisture sensitive technology. This modules include a Semtech SX1276 ultra long range spread spectrum wireless transceiver and having GPIO, JTAG, UART interface type.
RoHS compliant
Integrated PCB antenna
