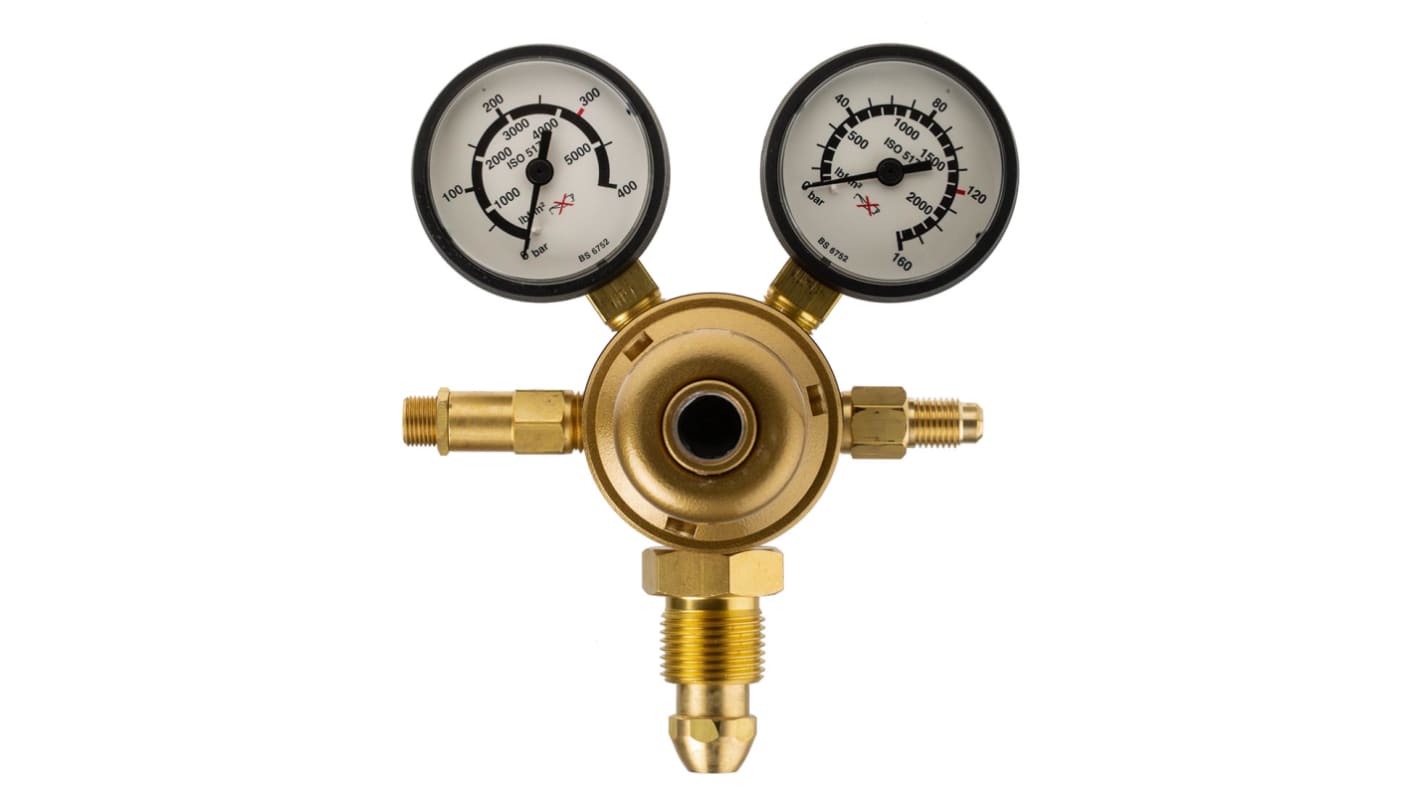

This range of regulators is specifically designed to meet the needs of the heating, ventilation and air conditioning (HVAC) trades, for purge and leak test applications.

Available in three pressure variants, the regulators are supplied with JIC fitting outlets.

Manufactured from high tensile brass
Extra safe accurate bulkhead gauges 50 mm
Double layer high grade stainless steel diaphragms
Efficient metal filters
Trouble free operation
Prolonged regulator service life
Transparent powder painted surface
High corrosion resistance
Body, bonnet, inlet stem made from high tensile
Technical data marked on the rear of the body
Outlet connections compatible with Parker fittings
Bronze bush reduces friction
T-bar for easy pressure setting
JIC Fitting outlets
Meets the needs of heating, ventilation and air-conditioning (HVAC) trades

Brass body and bonnet chemically stabilised
40 mm diameter diaphragm
Encapsulated valves sealed by high grade PA
Pressure gauges scale in Bar, accuracy class 2.5%
Inlet stem and nut – high tensile brass to BS-341
Safety valve is not present must be an independent part of a downstream gas line
Stainless steel T-bar, brass pressure adjusting screw

BS-341
