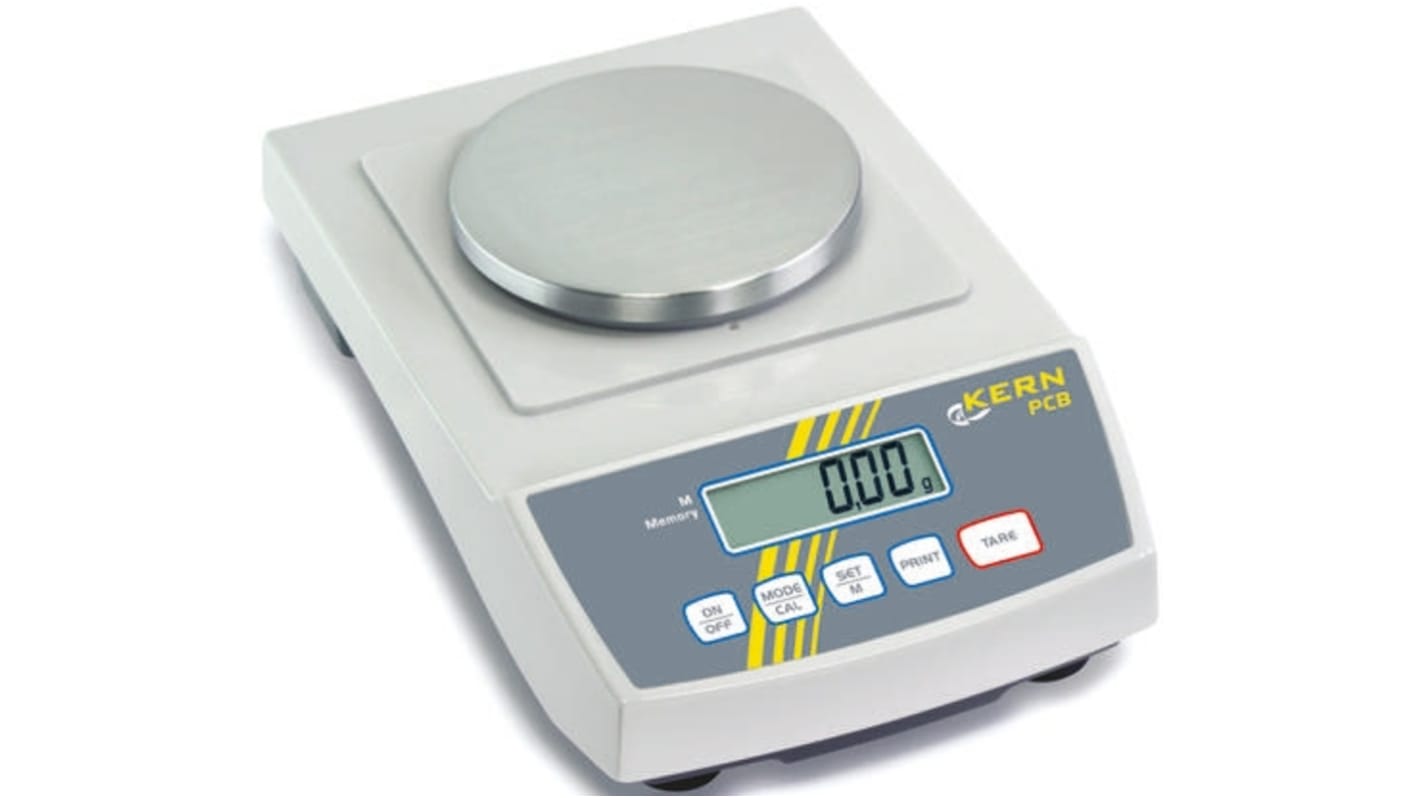

Kern PCB 200-2 Precision Balance Weighing Scale, 200g Weight Capacity, With RS Calibration
- RS Stock No.:
- 703-0519
- Mfr. Part No.:
- PCB 200-2/RS
- Brand:
- Kern
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 703-0519
- Mfr. Part No.:
- PCB 200-2/RS
- Brand:
- Kern
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Kern | |
Weighing Capacity | 200g | |
Scale Type | Precision Balance | |
Resolution | 0.01 g | |
Calibrated | RSCAL | |
Parts Counting | Yes | |
Interface Type | RS232 | |
Weighpan Diameter | 105mm | |
Net Weight | 1.1kg | |
Model Number p | PCB 200-2 | |
Maximum Operating Temperature | +35°C | |
Minimum Operating Temperature | +5°C | |
Select all | ||
---|---|---|
Brand Kern | ||
Weighing Capacity 200g | ||
Scale Type Precision Balance | ||
Resolution 0.01 g | ||
Calibrated RSCAL | ||
Parts Counting Yes | ||
Interface Type RS232 | ||
Weighpan Diameter 105mm | ||
Net Weight 1.1kg | ||
Model Number p PCB 200-2 | ||
Maximum Operating Temperature +35°C | ||
Minimum Operating Temperature +5°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
PCB 200 Series Scales
Stainless steel weighing plate
Backlit LCD display with 15mm high digits
Weighing Units: g, oz, ozt, lb, ct, tlH, tlt, gn, dwt, mo, tol
Weighing Units: All have kg except 700-7106
Adjusting program: For quick setting of the balance accuracy (External adjusting weight required)
Parts counting: Selectable reference quantities up to 50 pieces
Net-total weighing: Weight of tare-cup and weight of components memorised in 2 separate stores
Pre-TARE function for subtraction of a known container weight
Percentage determination: displays the deviation from the reference weight (100%) in % instead of grams
RS-232 data interface
Mains or battery powered (requires 1 x PP3 battery)
Auto power down after 3 mins without a change of load (in battery operation)
Size & weight: 163mm x 245mm x79mm; 1.3kg
Backlit LCD display with 15mm high digits
Weighing Units: g, oz, ozt, lb, ct, tlH, tlt, gn, dwt, mo, tol
Weighing Units: All have kg except 700-7106
Adjusting program: For quick setting of the balance accuracy (External adjusting weight required)
Parts counting: Selectable reference quantities up to 50 pieces
Net-total weighing: Weight of tare-cup and weight of components memorised in 2 separate stores
Pre-TARE function for subtraction of a known container weight
Percentage determination: displays the deviation from the reference weight (100%) in % instead of grams
RS-232 data interface
Mains or battery powered (requires 1 x PP3 battery)
Auto power down after 3 mins without a change of load (in battery operation)
Size & weight: 163mm x 245mm x79mm; 1.3kg
Supplied with
protective cover, instructions & mains adaptor.
