RS PRO 3 → 6V -500/800 mBar Direct Coupling Gas Compressor Pump/Fuel Pump Water Pump, 75ml/min
- RS Stock No.:
- 817-0728
- Brand:
- RS PRO
14 In stock - FREE next working day delivery available
Added
Price Each
£108.64
(exc. VAT)
£130.37
(inc. VAT)
| Units | Per unit |
| 1 + | £108.64 |
- RS Stock No.:
- 817-0728
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

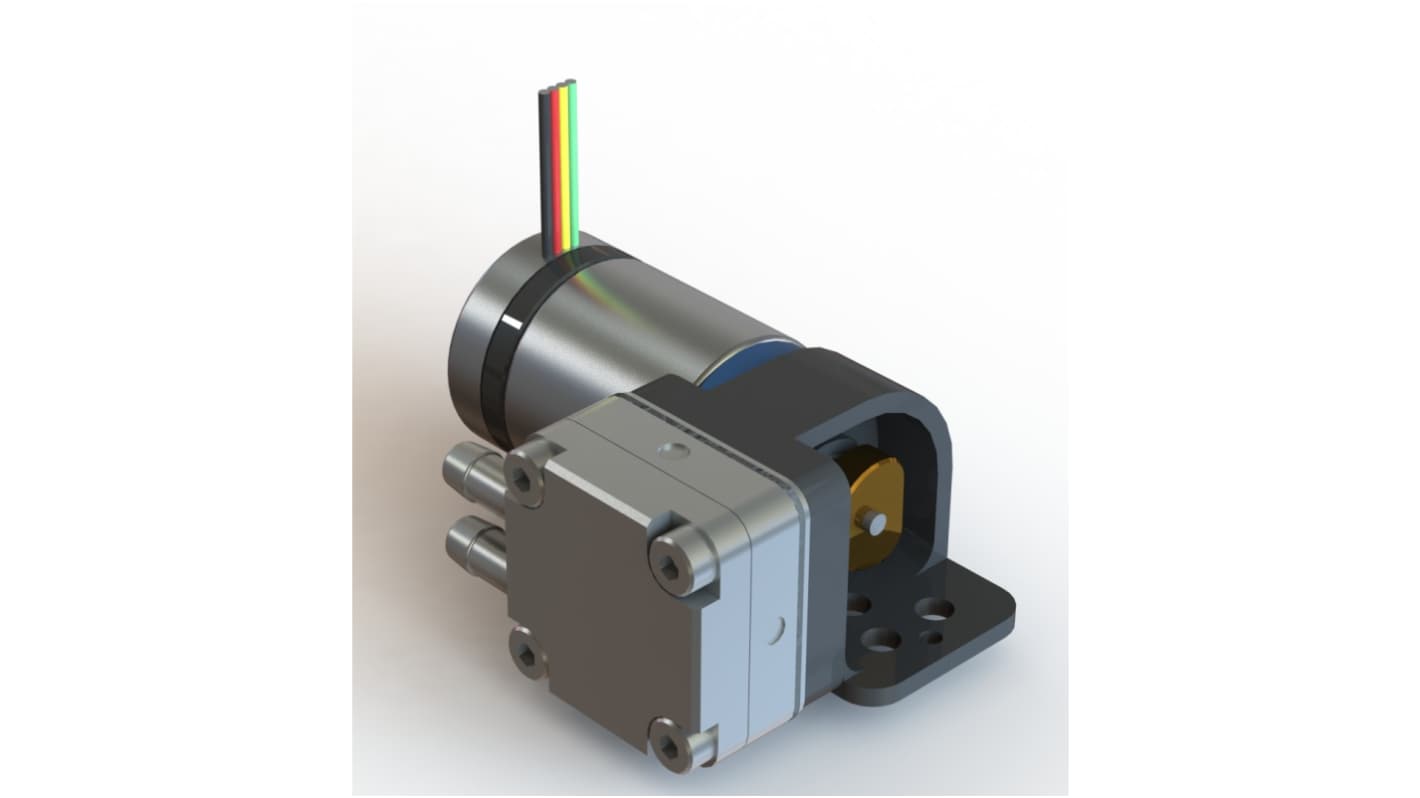

RS Pro Micro Diaphragm Gas and Liquid Pump
The D200 series of pumps from RS Pro are constructed from glass filled nylon or aluminium alloy, with stainless steel tubing connectors. They are fitted with Nitrile/Silicon diaphragm and valves as standard. The pump uses Push Fit connectors designed for 2.4 mm bore flexible tubing.
Features and Benefits
• High efficiency
• Variable flow rate and low power consumption
• Usable with solar power, PSU or batteries
• Wide range of chemical resistance
• Head can be realigned to one of 4 positions for easy inlet and outlet tube connection
• Variable flow rate and low power consumption
• Usable with solar power, PSU or batteries
• Wide range of chemical resistance
• Head can be realigned to one of 4 positions for easy inlet and outlet tube connection
Application Information
Typical applications include:
• Medical devices
• Analysis systems
• Gas detection and monitoring
• Cooling systems
• Precision flow
• Battery and solar operated systems
• Analysis systems
• Gas detection and monitoring
• Cooling systems
• Precision flow
• Battery and solar operated systems
Standards
IP41
Specifications
Attribute | Value |
|---|---|
| Maximum Flow Rate | 75ml/min |
| Supply Voltage | 3 → 6V |
| Input Connection | 3.6mm Hose Barb |
| Maximum Working Pressure | -500/800 mBar |
| Body Material | Anodised Aluminium |
| Coupling Type | Direct |
| Input Power | 2.4 → 2.6W (@6V liquid) 0.6 → 0.8W (@6V air) |
| Maximum Fluid Temperature | +100°C |
| Input Connection Size | 2.4mm |
| Output Connection Size | 2.4mm |
| Pump Type | Gas Compressor Pump/Fuel Pump |
| Wetted Materials | Glass Filled Nylon (Tubing Connector), Silicone-Nitrile/EPDM/Viton (Seals) |
| IP Rating | IP41 |
