RS PRO 6 → 28V 10bar Direct drive, Seal-less Coupling Micro External Gear Pump Water Pump, 1500ml/min
- RS Stock No.:
- 125-3564
- Brand:
- RS PRO
Subtotal (1 unit)*
£415.14
(exc. VAT)
£498.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 4 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £415.14 |
*price indicative
- RS Stock No.:
- 125-3564
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Flow Rate | 1500ml/min | |
| Supply Voltage | 6 → 28V | |
| Input Connection | 1/8 BSP | |
| Maximum Working Pressure | 10bar | |
| Body Material | Anodised Aluminium | |
| Coupling Type | Direct drive, Seal-less | |
| Input Power | 18 → 88W | |
| Maximum Fluid Temperature | 80°C | |
| Input Connection Size | 8mm | |
| Output Connection Size | 8mm | |
| Wetted Materials | Anodised 6000 Series Aluminium, 316 Stainless Steel, PEEK, PET, FKM | |
| Pump Type | Micro External Gear Pump | |
| IP Rating | IP45 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Flow Rate 1500ml/min | ||
Supply Voltage 6 → 28V | ||
Input Connection 1/8 BSP | ||
Maximum Working Pressure 10bar | ||
Body Material Anodised Aluminium | ||
Coupling Type Direct drive, Seal-less | ||
Input Power 18 → 88W | ||
Maximum Fluid Temperature 80°C | ||
Input Connection Size 8mm | ||
Output Connection Size 8mm | ||
Wetted Materials Anodised 6000 Series Aluminium, 316 Stainless Steel, PEEK, PET, FKM | ||
Pump Type Micro External Gear Pump | ||
IP Rating IP45 | ||
- COO (Country of Origin):
- GB

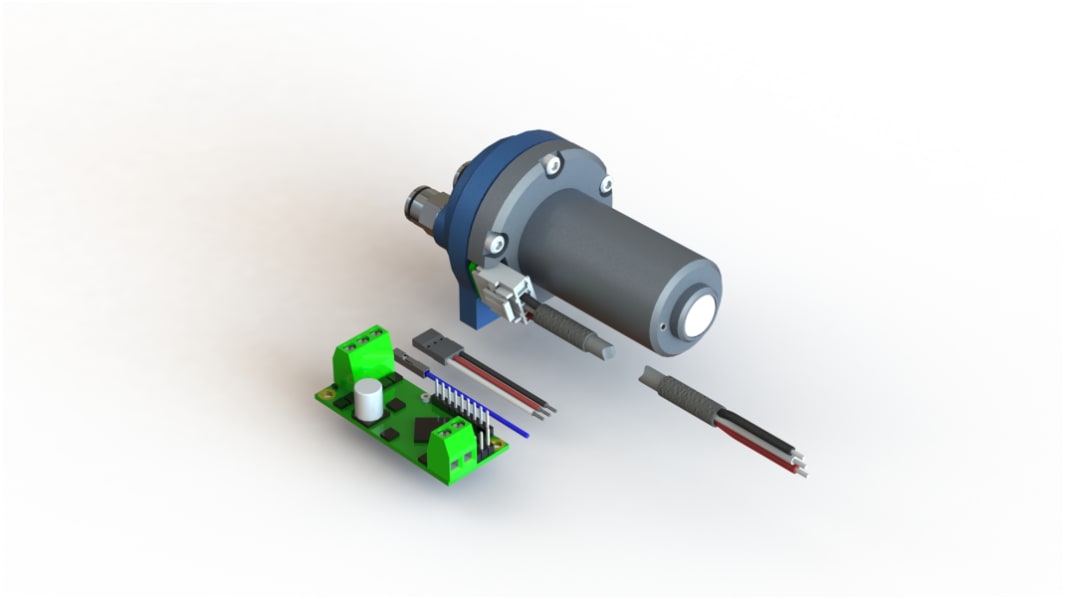

RS PRO Direct Coupling Water Pump, 6 V to 28 V, 15 Bar, 1.5 L/min
Looking for a pump that's suitable for low and high pressures? This self-priming one from RS PRO is ideal. It works with most fluids, meaning you can install it on a wide range of equipment, from precision flow systems to fuel cells.
The pump is durable as the body is made of aluminium, which has excellent corrosion resistance. The pump parts and body are also CNC (computer numerical control) machined to precise dimensions, so it's guaranteed to deliver reliable performance.
This part has an IP45 rating, which means it's protected against sand, dirt and dust, as well as submersion for up to 30 minutes in 1.5 metres of water. Pumps like this one are often used as high-pressure fuel pumps.
The pump is durable as the body is made of aluminium, which has excellent corrosion resistance. The pump parts and body are also CNC (computer numerical control) machined to precise dimensions, so it's guaranteed to deliver reliable performance.
This part has an IP45 rating, which means it's protected against sand, dirt and dust, as well as submersion for up to 30 minutes in 1.5 metres of water. Pumps like this one are often used as high-pressure fuel pumps.
Features and Benefits
- Anodised aluminium body material
- Input power of 18 W to 88 W
- IP45 rating
- Maximum flow rate of 1.5 L/min
- Maximum fluid temperature of +80°C
- Maximum working pressure of 10 bar
- Supply voltage of 6 V to 28 V
- Gear made of PEEK (polyether ether ketone)
- Seals made of Viton™
- Tubing connector made of 316 stainless steel
- Volute made of polyacetal
