Xylem 230V 40 psi Water Pump, 4.1L/min
- RS Stock No.:
- 122-6641
- Mfr. Part No.:
- BW5004-000A
- Brand:
- Xylem
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 122-6641
- Mfr. Part No.:
- BW5004-000A
- Brand:
- Xylem
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Xylem | |
| Product Type | Water Pump | |
| Maximum Flow Rate | 4.1L/min | |
| Supply Voltage | 230V | |
| Maximum Operating Pressure | 40 psi | |
| Body Material | ABS | |
| Maximum Fluid Temperature | 57.2°C | |
| Standards/Approvals | NSF, CE | |
| Select all | ||
|---|---|---|
Brand Xylem | ||
Product Type Water Pump | ||
Maximum Flow Rate 4.1L/min | ||
Supply Voltage 230V | ||
Maximum Operating Pressure 40 psi | ||
Body Material ABS | ||
Maximum Fluid Temperature 57.2°C | ||
Standards/Approvals NSF, CE | ||

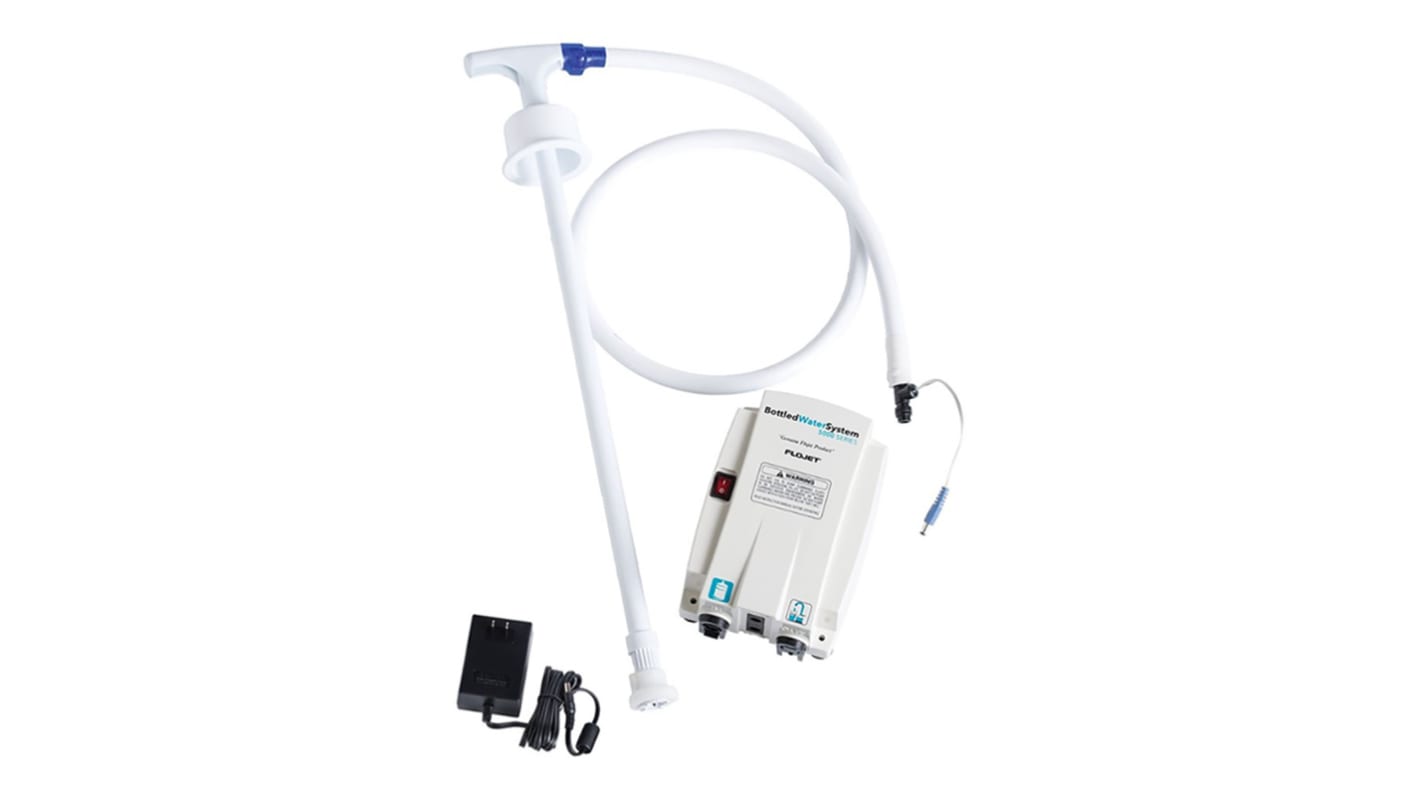

Xylem Bottled Water Dispensing Pump
The Xylem bottled water dispensing pump system is a compact and portable pump head with a suction lance for dispensing water from commercial water bottles. It is an effective product with a maximum flow rate of 4.1L/minute. The pump turns off when the water barrel is empty and resumes pumping once the water is refilled. This pump can be running dry without being damaged. It is thermally-protected to prevent overheating, thereby protecting the pump, and control box from damage.
Kit Contents:
Pump module
Suction wand with hose assembly
6m discharge tube (6.35mm O. D)
Wall power transformer
Features and Benefits
The supply voltage is 230V
Maximum fluid temperature is 57.2°C
Maximum working pressure is 40PSI
Illuminated on/off switch which provides clear visibility in dark or hard-to-reach places
Long-life motor that ensures years of reliable operation
Flojet diaphragm pump runs dry without damage, extending pump life
Quick connect port speeds installation and replacement of suction and discharge tubing
Quiet operation minimizes noise pollution with noise-dampening rubber feet
Applications
Coffee/ tea dispensers
Refrigerators
Sinks or portable systems that require potable water
