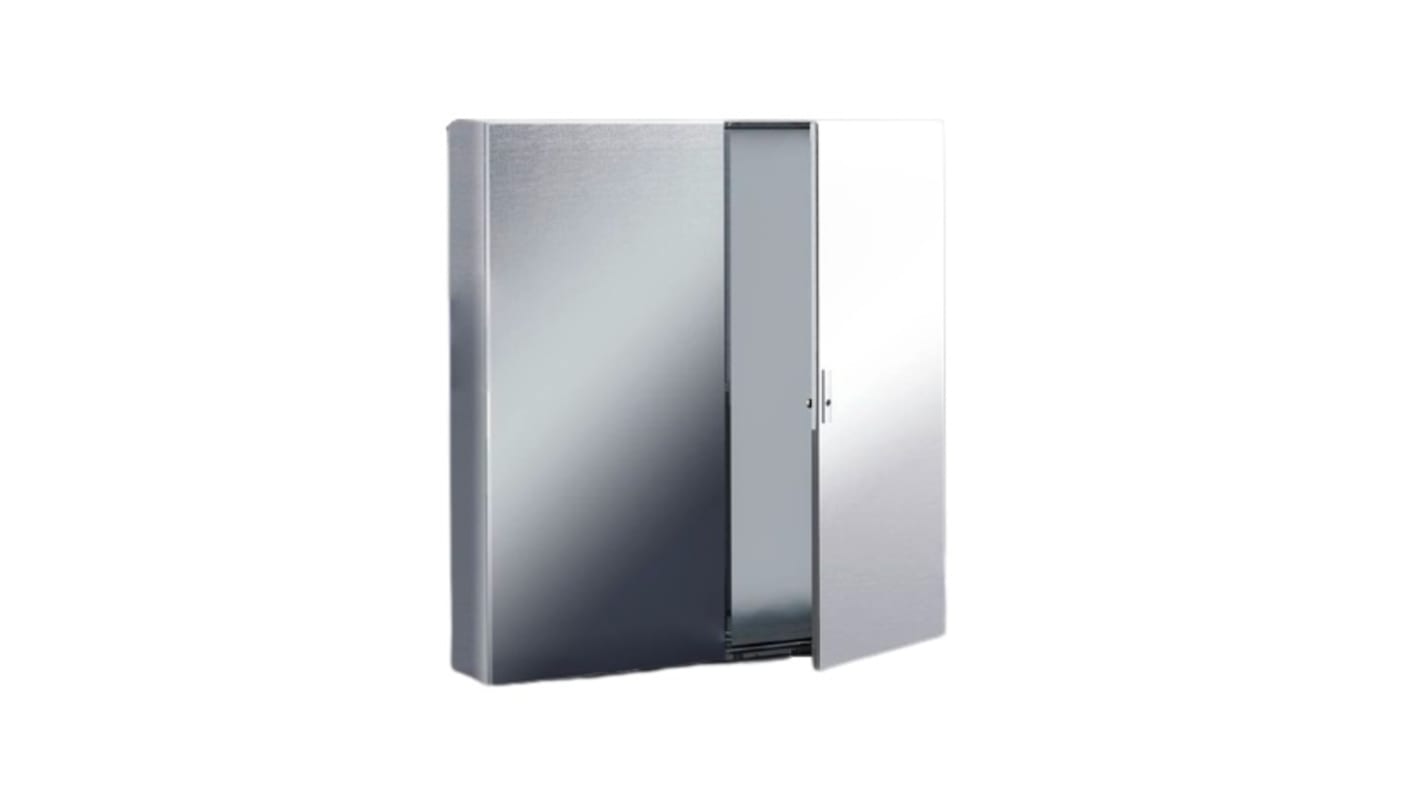

Rittal AE Series 304 Stainless Steel Wall Box, IP55, 1200 mm x 1000 mm x 300mm

View all Wall Boxes
Unavailable
RS will no longer stock this product.
RS Stock No.:
784-6175
Mfr. Part No.:
1019600
Brand:
Rittal
Find similar products by selecting one or more attributes.
Select all

Brand

Rittal

External Height

1200 mm

External Width

1000 mm

External Depth

300mm

Body Material

304 Stainless Steel

Transparent Door

No

IP Rating

IP55

Chassis Plate

No

Door Lock Type

Triple Lock System

Gland Plate

No

Colour

Unpainted

Series

AE

External Mounting Type

Bracket

Internal Mounting Type

Panel

IK Rating

IK08

Fixing Kit

No

COO (Country of Origin):
DE

Rittal AE Compact Enclosures


The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately


Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately


Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

Rittal Wall Box, 1200mm Height, 1000mm Width - AE Series - 1019600


This wall box from Rittal safely stores your sensitive electrical components. Thanks to its three-point locking system, it protects your devices against tampering for added security. The enclosure's large dimensions of 1200 (height) x 1000 (width) x 300mm (depth) provide enough space for housing large equipment. An IP55 rating means this wall box is protected against dust and low-pressure water jets for use in harsh environments.

Features & Benefits


• Two hinged doors for convenient access to your equipment
• Supplied with a mounting plate for ease of installation on a wall

Applications


• Server management
• Power tool storage
• Logistics industry

What material is this wall box made of?


This wall box is made of stainless steel for resistance to impact and corrosion, making it a durable choice for use in harsh environments.
