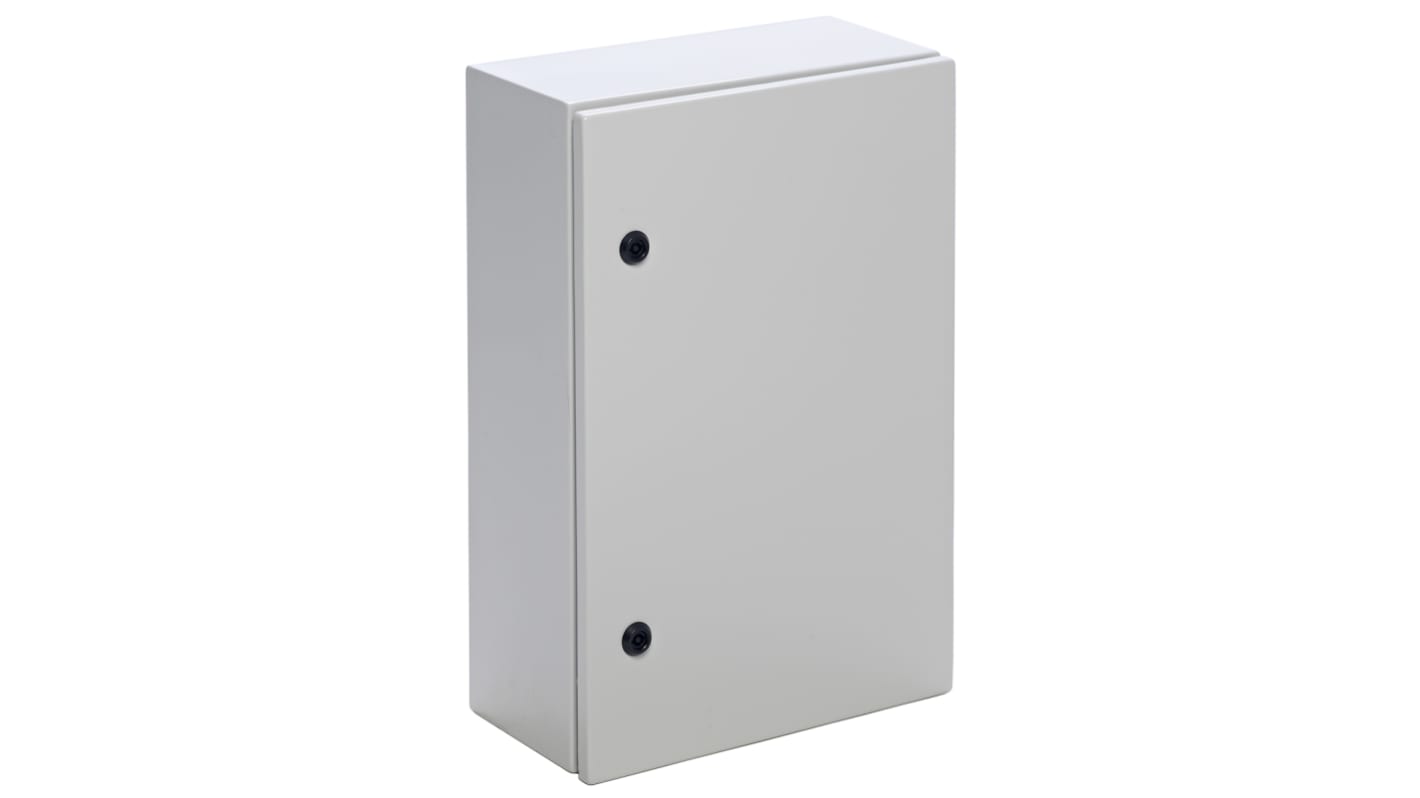

Contactum Galvanised Steel Wall Box, IP66, 600 mm x 600 mm x 300mm

RS Stock No.:: 183-3518
Mfr. Part No.:: 47-SB606030D
Brand:: Contactum

Contactum Galvanised Steel Wall Box, IP66, 600 mm x 600 mm x 300mm

1 In stock - FREE next working day delivery available

Added

Price Each

£192.61

(exc. VAT)

£231.13

(inc. VAT)

Units	Per unit
1 +	£192.61

RS Stock No.:: 183-3518
Mfr. Part No.:: 47-SB606030D
Brand:: Contactum

Technical Reference

Datasheet 47-SB606030D

Legislation and Compliance

Non Compliant

COO (Country of Origin):: AE

Product Details

Galvanised steel
Powder coated – RAL 7032
Injected polyurethane gasket
Bottom gland plate
Ingress protection
Mechanical impact protection
C/W mounting plate – galvanised steel
Fitted earth strip
Material thickness 1.2mm - 1.5mm
Corrosion Resistance
Earthing studs are provided on both the enclosure and the door
CNC machine formed polyurethane gasket for reliable sealing
Corner formed door ensures better weatherproofing
Easily removable hinges, ideal for changing the door opening direction (for certain sizes)
Special profiled lip for better waterproofing
Lock features:
Quarter turn cylindrical lock
Durable metal lock and keys
Key engaged when the lock is open

Note

Mounting Plate Supplied as Standard

Specifications

Attribute	Value
External Height	600 mm
External Width	600 mm
External Depth	300mm
Body Material	Galvanised Steel
IP Rating	IP66
Chassis Plate	Yes
Gland Plate	Yes
Colour	Grey
RAL Code	RAL 7032
External Mounting Type	Bracket
Standards Met	IEC 60529, IEC 62208, IEC 62262

RS Stock No.:: 183-3518
Mfr. Part No.:: 47-SB606030D
Brand:: Contactum

Datasheet 47-SB606030D
