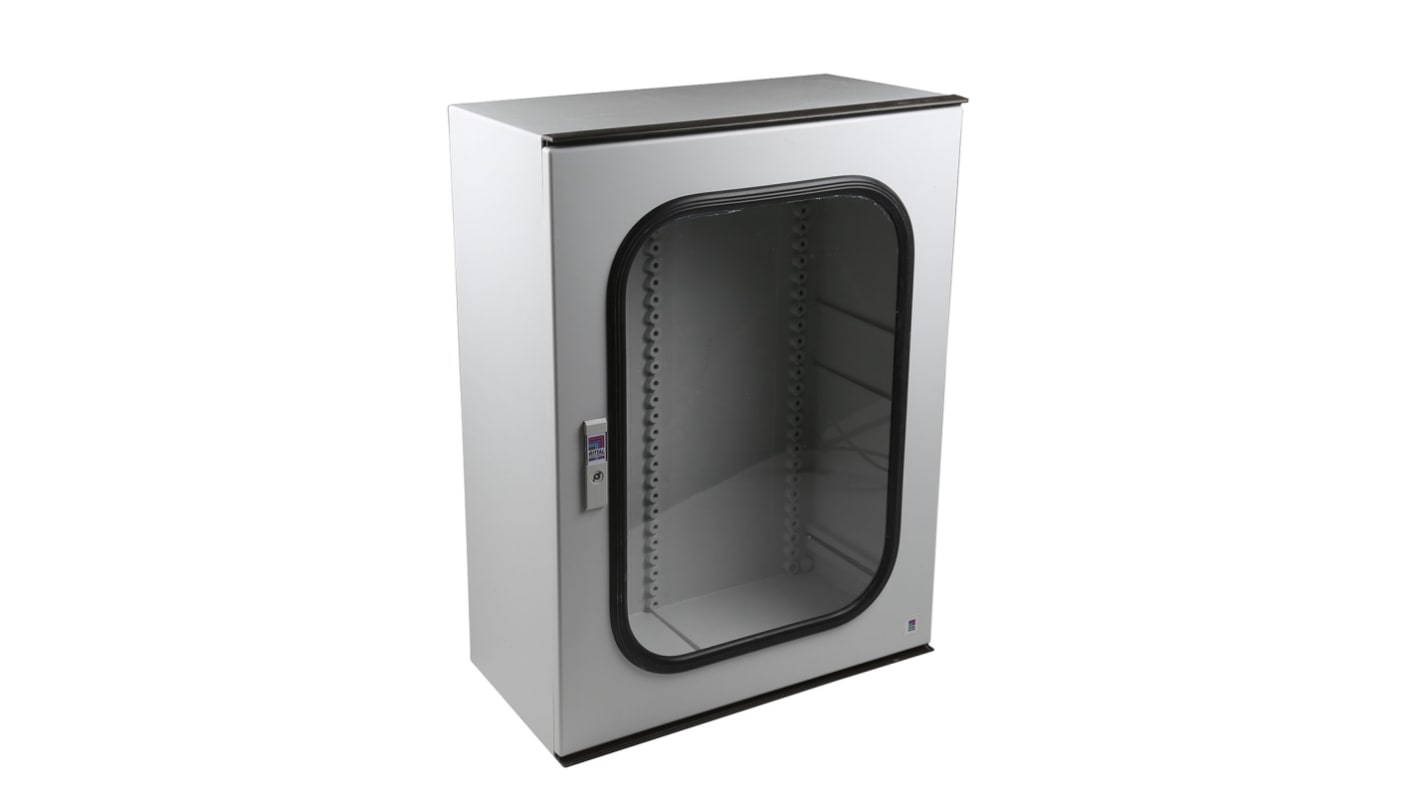

Rittal KS, PET Wall Box, IP65, 300mm x 600 mm x 800 mm

  • RS Stock No. 107-940
  • Mfr. Part No. KS1469500
  • Brand Rittal
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Rittal KS Series Plastic Enclosures

The KS series from Rittal are fully insulated polyester wall mounted enclosures. They have multiple mounting levels in the enclosure to allow various mounting plate depths. The KS enclosure has press-fitted C sections at the sides for variable mounting plate depth adjustment.

Features and Benefits

• Fibreglass-reinforced unsaturated polyester enclosure and door offer high stability
• 3 mm double-bit lock
• Twin seal on the top and bottom edges of the door for rain protection
• Press-fitted C sections at the sides for infinitely variable mounting plate depth adjustment
• IP65 to IEC 60 529 (except stock no. 107-940 which is IP56)
• IK08 protection
• RAL7035 light grey
• Protection category NEMA 12
• Flammability index: UL 94-V0

Note

Stock no. 107-940 has a glazed acrylic viewing window.

Supplied with

Zinc-plated mounting plate.

Specifications
Attribute Value
External Height 600 mm
External Width 800 mm
External Depth 300mm
Body Material PET
Transparent Door No
IP Rating IP65
Chassis Plate Yes
Door Lock Type Double Lock System
Gland Plate No
Colour Grey
Series KS
Fixing Kit No
External Mounting Type Bracket
Internal Mounting Type Panel
