GILGEN Muller & Weigert DPM Series Digital Voltmeter DC, 7 Segment Display 3-Digits ±0.2 %, 22.2 mm, 92 mm
- RS Stock No.:
- 248-3053
- Mfr. Part No.:
- DPM24/96-2000S/5
- Brand:
- GILGEN Muller & Weigert

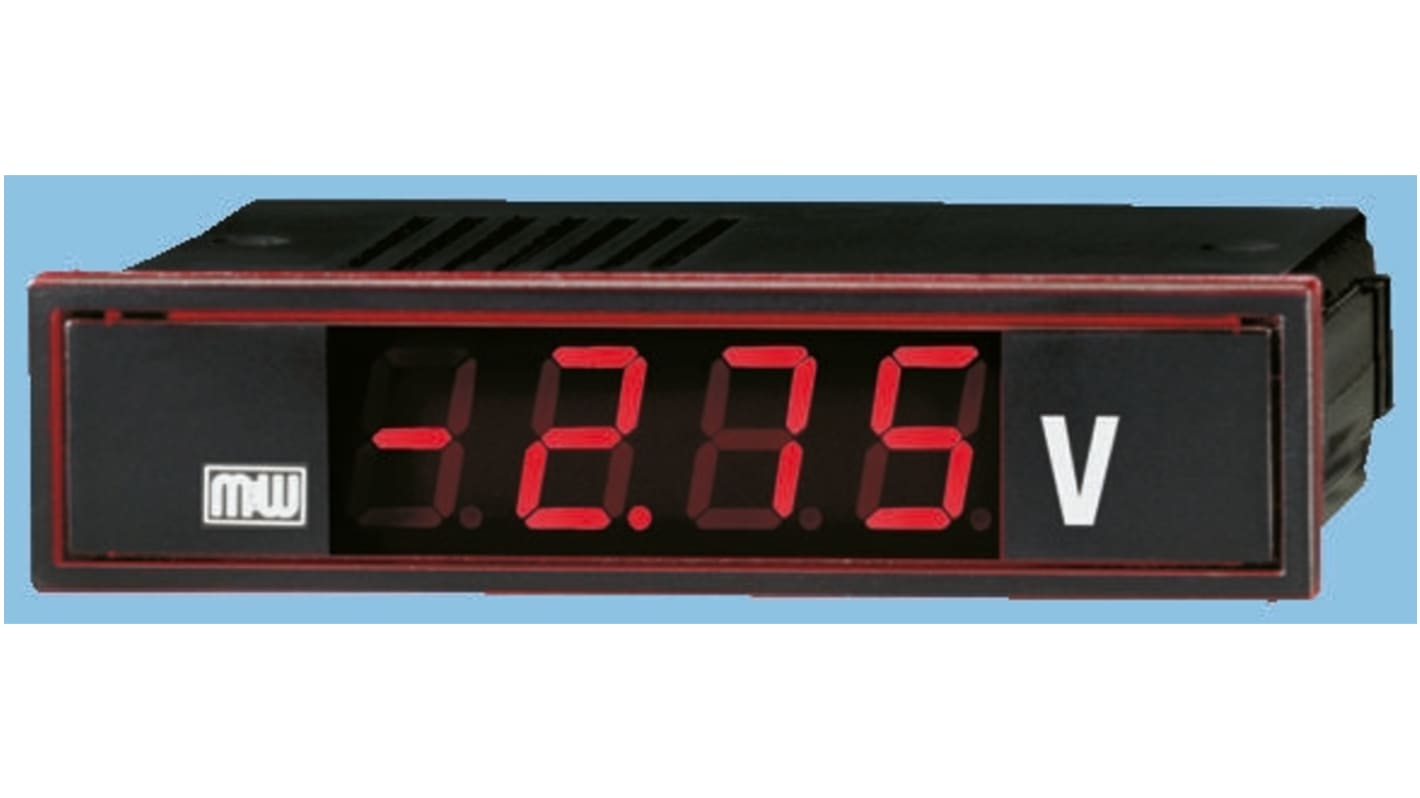

Image representative of range
Subtotal (1 unit)*
£89.13
(exc. VAT)
£106.96
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £89.13 |
*price indicative
- RS Stock No.:
- 248-3053
- Mfr. Part No.:
- DPM24/96-2000S/5
- Brand:
- GILGEN Muller & Weigert
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | GILGEN Muller & Weigert | |
| Current Type | DC | |
| Product Type | Digital Voltmeter | |
| Number of Digits | 3 | |
| Display Type | 7 Segment | |
| Cutout Height | 22.2mm | |
| Cutout Width | 92mm | |
| Depth | 53mm | |
| Digit Height | 85mm | |
| Meter Accuracy | ±0.2 % | |
| Series | DPM | |
| Minimum Operating Temperature | 0°C | |
| Standards/Approvals | No | |
| Maximum Measurement | 300 V | |
| Maximum Operating Temperature | 50°C | |
| Select all | ||
|---|---|---|
Brand GILGEN Muller & Weigert | ||
Current Type DC | ||
Product Type Digital Voltmeter | ||
Number of Digits 3 | ||
Display Type 7 Segment | ||
Cutout Height 22.2mm | ||
Cutout Width 92mm | ||
Depth 53mm | ||
Digit Height 85mm | ||
Meter Accuracy ±0.2 % | ||
Series DPM | ||
Minimum Operating Temperature 0°C | ||
Standards/Approvals No | ||
Maximum Measurement 300 V | ||
Maximum Operating Temperature 50°C | ||
- COO (Country of Origin):
- DE
DPM24 / 96-2000S indicators
DIN format panel meter with 7 segment 3 1/2 digit LED display.
Wide range of voltage and direct current measurements that can be defined by the user using a simple jumper.
Zero shift within limit of 25% of the range (e.g.: 4 → 20 mA
Indication of range being exceeded.
Adjustable decimal point and brightness.
Standard: IEC 1010
LED/LCD Digital Voltage & Current Meters
All meters have an operating temperature range of 0 to 50°C.
