RS PRO Analogue Voltmeter DC, Analogue Display 1 %
- RS Stock No.:
- 186-2494
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£21.48
(exc. VAT)
£25.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 13 October 2025
- Plus 11 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £21.48 |
| 5 - 9 | £20.39 |
| 10 + | £19.32 |
*price indicative
- RS Stock No.:
- 186-2494
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Current Type | DC | |
| Display Type | Analogue | |
| Cutout Height | 68mm | |
| Cutout Width | 68mm | |
| Depth | 54 (<4 A) mm, 67 (5 → 60 A) mm, 67 (60 → 100 A) mm | |
| Meter Accuracy | 1 % | |
| Minimum Temperature | -10°C | |
| Maximum Temperature | +65°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Current Type DC | ||
Display Type Analogue | ||
Cutout Height 68mm | ||
Cutout Width 68mm | ||
Depth 54 (<4 A) mm, 67 (5 → 60 A) mm, 67 (60 → 100 A) mm | ||
Meter Accuracy 1 % | ||
Minimum Temperature -10°C | ||
Maximum Temperature +65°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IN

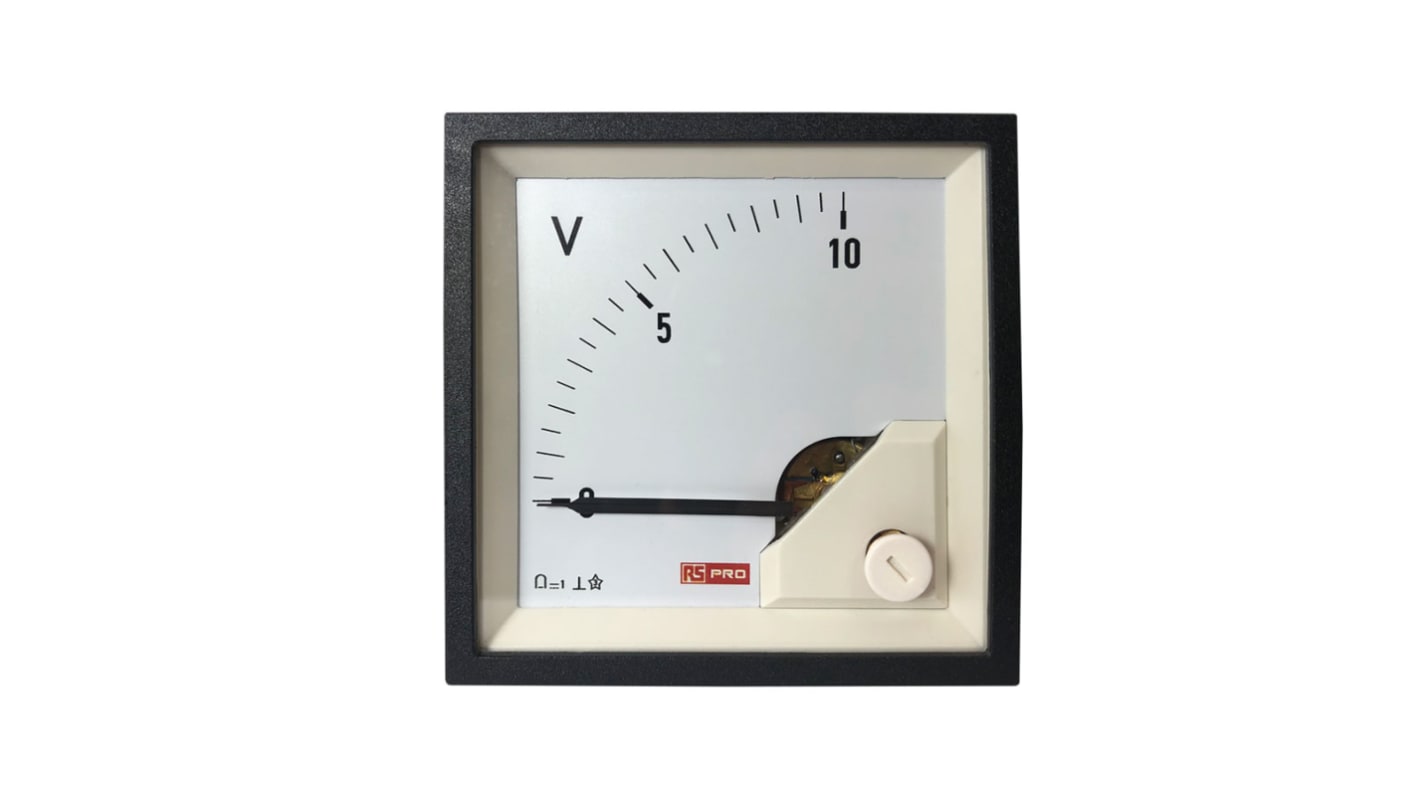

RS PRO DC Analogue Panel Voltmeter
The RS PRO 68mm x 68mm cut-out DC analogue panel voltmeter has a measurement range of 0V to 10V input. The DIN 72 style panel meter comprises permanent magnet moving coil movements and indicates an average value. The moving coil movement consists of a magnet, an aluminium coil suspended on pivots, a hairspring, and a jewel mechanism. The scales are linear and calibrated down to zero. High currents are measured with separate shunts attached on the rear side of the meter. The meter is housed in a moulded polycarbonate case.
Features and Benefits
• Operating temperature ranges between -10°C and 65°C
• Storage temperature ranges between -25°C and 75°C
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: 0° to 90°
• DC voltmeter nominal range of use: 15mV to 600V
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal voltage (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
• Storage temperature ranges between -25°C and 75°C
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: 0° to 90°
• DC voltmeter nominal range of use: 15mV to 600V
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal voltage (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
Certifications
• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
