Lascar B Series Digital Voltmeter DC, E -paper Dot Matrix Display 3-Digits 0.25 %, 34 mm, 70 mm

View all Voltmeters

Subtotal (1 unit)*

£47.98

(exc. VAT)

£57.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 12 unit(s) shipping from 20 April 2026
  • Plus 2 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£47.98

*price indicative

RS Stock No.:
161-3503
Distrelec Article No.:
302-51-998
Mfr. Part No.:
SGD 21-B
Brand:
Lascar
Find similar products by selecting one or more attributes.
Select all

Brand

Lascar

Current Type

DC

Product Type

Digital Voltmeter

Number of Digits

3

Display Type

E -paper Dot Matrix

Cutout Height

34mm

Cutout Width

70mm

Depth

10.8mm

Digit Height

15mm

Meter Accuracy

0.25 %

Minimum Operating Temperature

0°C

Maximum Operating Temperature

40°C

Standards/Approvals

NEMA 4X

Maximum Measurement

500 V

Series

B

COO (Country of Origin):
CN

PanelPilot Compatible E-Paper Dot Matrix Display

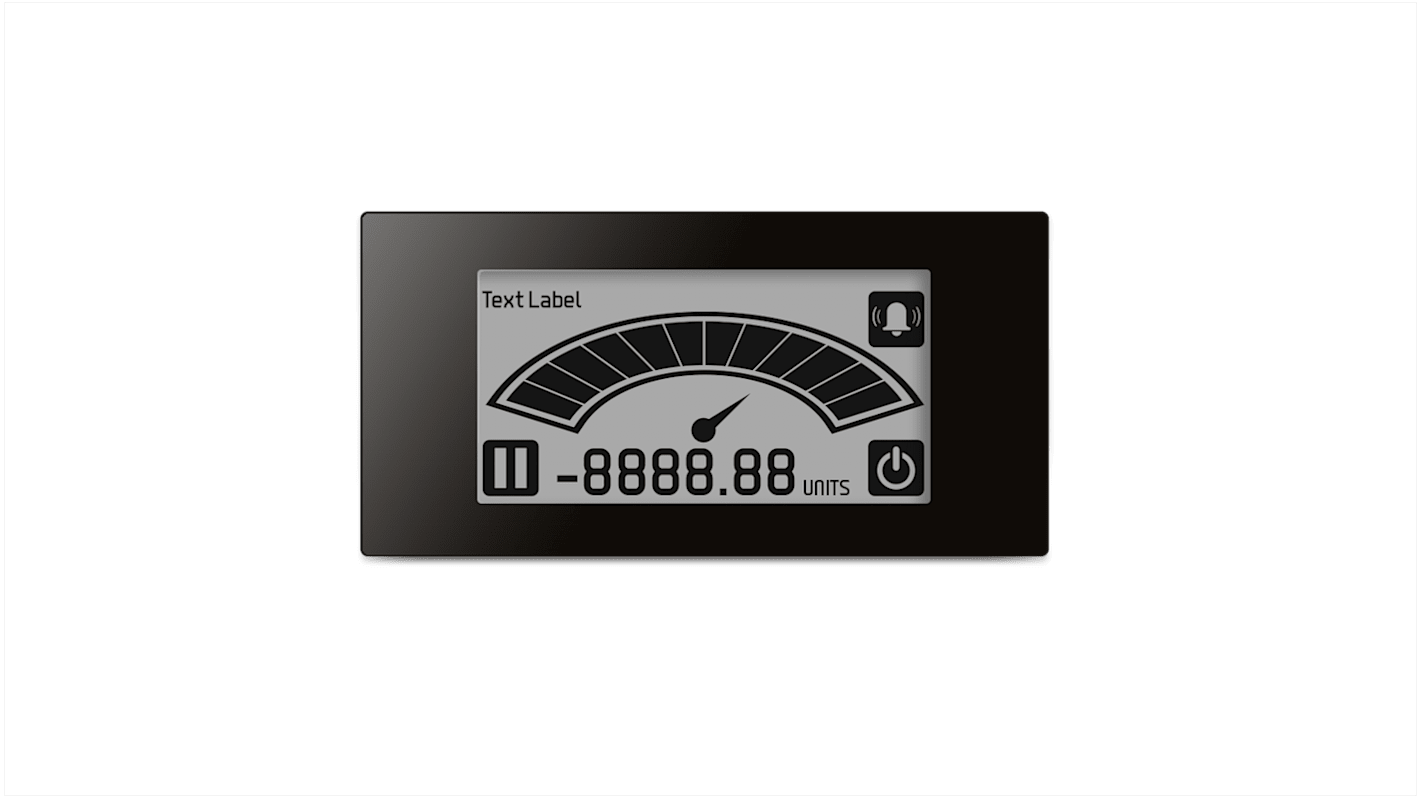

The SGD 21-B from Lascar is a low-cost, ultra low power, sunlight readable, single channel voltmeter with a sleek monochrome e-paper dot matrix display.

The SGD 21-B works with the free PanelPilot B configuration software, which is available for Windows 7, 8 and 10, providing six analogue and digital voltmeter Apps which can be customised to suit individual applications. Elements of each configuration can be changed in the software to include custom labels, scaling and alarms. A splash screen can also be added to the display on power-up.

Once configuration is complete, users can upload it to the SGD 21-B display using the CABLE USB-A-SIL5. Panel or enclosure installation of the display is simple, using a panel fixing clip to mount the display.

Features & Benefits


2.1" e-paper dot matrix display

Uses PanelPilot B software to setup and customise the display

6 voltmeter configurations included for free

Reflective e-paper technology is sunlight readable and ultra-low power

Two alarms available for configuration during software set-up

Configurable digital I/O pin

IP54 rating on front panel

Wide operating voltage of 4 - 9V dc

Applications


Scientific Equipment

Test & Measurement

Medical and Healthcare Equipment

Lascar's PanelPilot B Software is available for download free of charge from www.lascarelectronics.com/software.

It's easy to install and use, the configuration software runs under Windows 7, 8 and 10. The software is used to setup the appearance and operation of the App and then upload these settings to the display.
