Lascar Digital Voltmeter DC, LCD Display 4.5-Digits ±1 %
- RS Stock No.:
- 106-4875
- Mfr. Part No.:
- DPM 160
- Brand:
- Lascar
Bulk discount available
Subtotal (1 unit)*
£85.04
(exc. VAT)
£102.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £85.04 |
5 - 9 | £82.49 |
10 + | £80.62 |
*price indicative
- RS Stock No.:
- 106-4875
- Mfr. Part No.:
- DPM 160
- Brand:
- Lascar
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lascar | |
Current Type | DC | |
Number of Digits | 4.5 | |
Display Type | LCD | |
Cutout Height | 27mm | |
Cutout Width | 57mm | |
Depth | 8.2mm | |
Supply Voltage | 6 → 14 V | |
Digit Height | 12.5 mm | |
Meter Accuracy | ±1 % | |
Analogue Effect | Digits Only | |
Minimum Temperature | 0°C | |
Meter Type | Voltmeter | |
Maximum Temperature | +50°C | |
Select all | ||
---|---|---|
Brand Lascar | ||
Current Type DC | ||
Number of Digits 4.5 | ||
Display Type LCD | ||
Cutout Height 27mm | ||
Cutout Width 57mm | ||
Depth 8.2mm | ||
Supply Voltage 6 → 14 V | ||
Digit Height 12.5 mm | ||
Meter Accuracy ±1 % | ||
Analogue Effect Digits Only | ||
Minimum Temperature 0°C | ||
Meter Type Voltmeter | ||
Maximum Temperature +50°C | ||
- COO (Country of Origin):
- CN

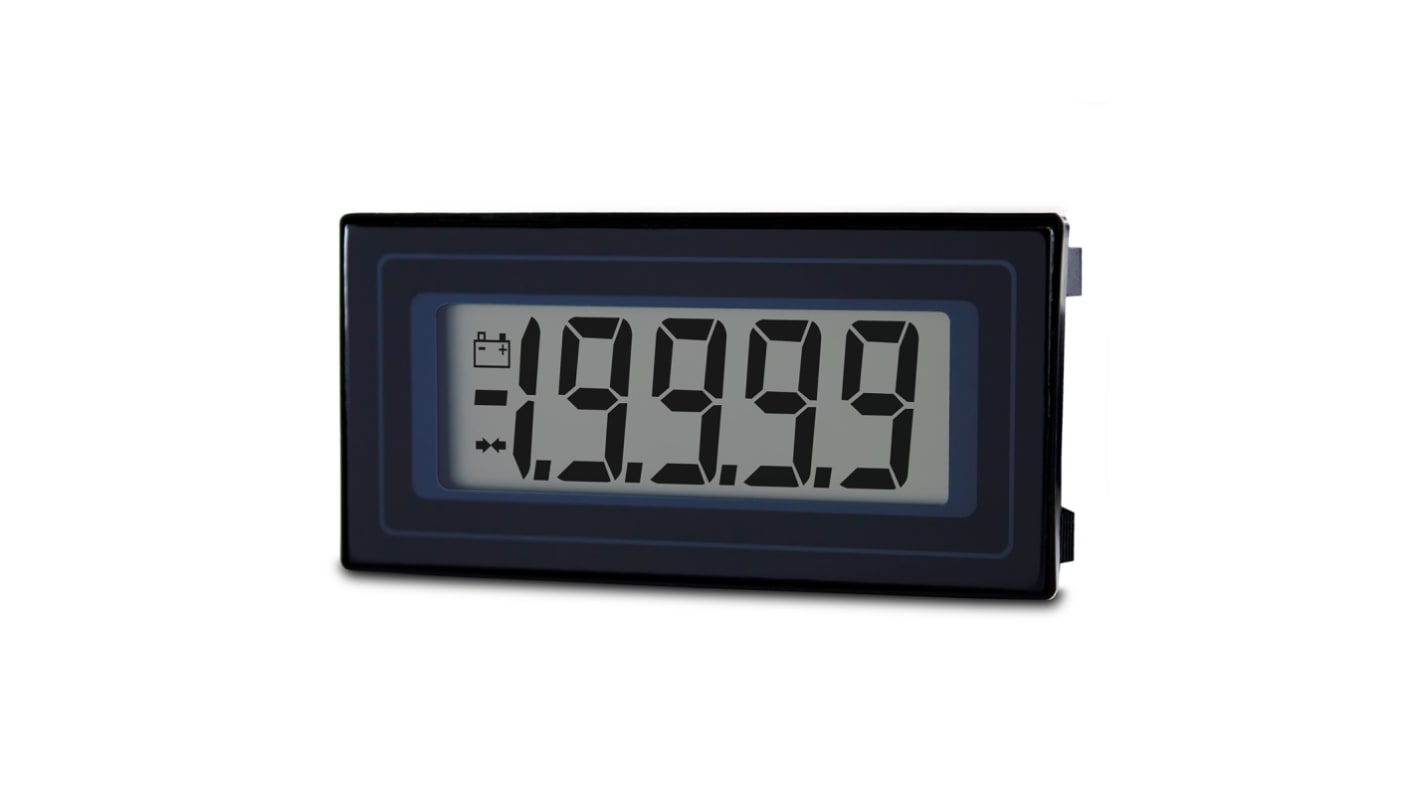

4 Digit LCD Voltmeter
The DPM 160 panel meter features a 4 digit LCD with 12.5mm digit height and low-profile bezel for mounting. With 200mV and 2V d.c. full scale readings, digital hold, auto-zero and auto-polarity, this meter plugs directly into a single-in-line (SIL) socket it can be panel mounted using the snap-in bezel and window supplied.
Features and Benefits
12.5mm Digit Height
Programmable Decimal Points
Auto-zero
Auto-polarity
200mV d.c. or 2V d.c. Full Scale Reading
Digital hold
Auto ranging outputs
Programmable Decimal Points
Auto-zero
Auto-polarity
200mV d.c. or 2V d.c. Full Scale Reading
Digital hold
Auto ranging outputs
Supplied with
a snap-in bezel and window.
LCD 5.5 to 19mm Digit Height
All have an operating temperature range of 0 to 50°C unless specified otherwise.
