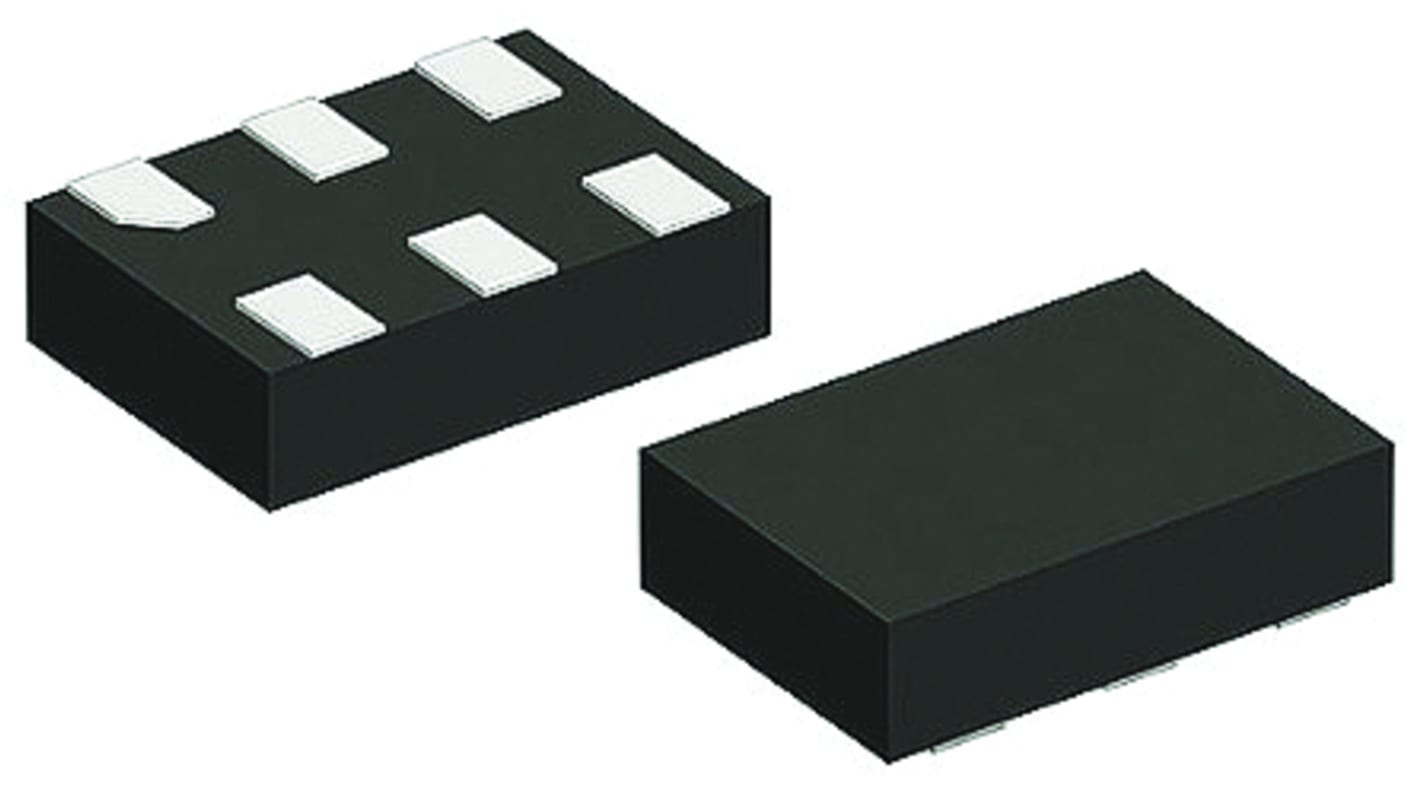

STMicroelectronics Reset Circuit 5.5V max. 6-Pin UDFN, SR2LABU

View all Voltage Supervisors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
860-7371
Mfr. Part No.:
SR2LABU
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Maximum Reset Threshold Voltage

5.5V

Minimum Reset Threshold Voltage

0.3V

Mounting Type

Surface Mount

Package Type

UDFN

Pin Count

6

Dimensions

1.6 x 1.3 x 0.55mm

Maximum Operating Supply Voltage

5.5 V

Minimum Operating Supply Voltage

1.65 V

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+85 °C

Smart Reset IC, STMicroelectronics


No need for a specific Reset button – an existing button or combination of buttons can be used
Customizable input delay time from 5 to 10 second, that ensures that inadvertent, short activation of the button(s) do not cause a system reset


Microprocessor Supply Voltage Supervisory & Reset Circuits


Power supply voltage monitoring and supervisory circuits for use in desktop, laptop and notebook computers, test and measurement instruments, portable battery-powered equipment and multiple-output power supplies.


Supply Voltage Detector
Supply Voltage Supervisor
Power Supply Supervisor
Microprocessor Supervisory
Microprocessor Voltage Supervisor
Microcontroller Reset Circuit
