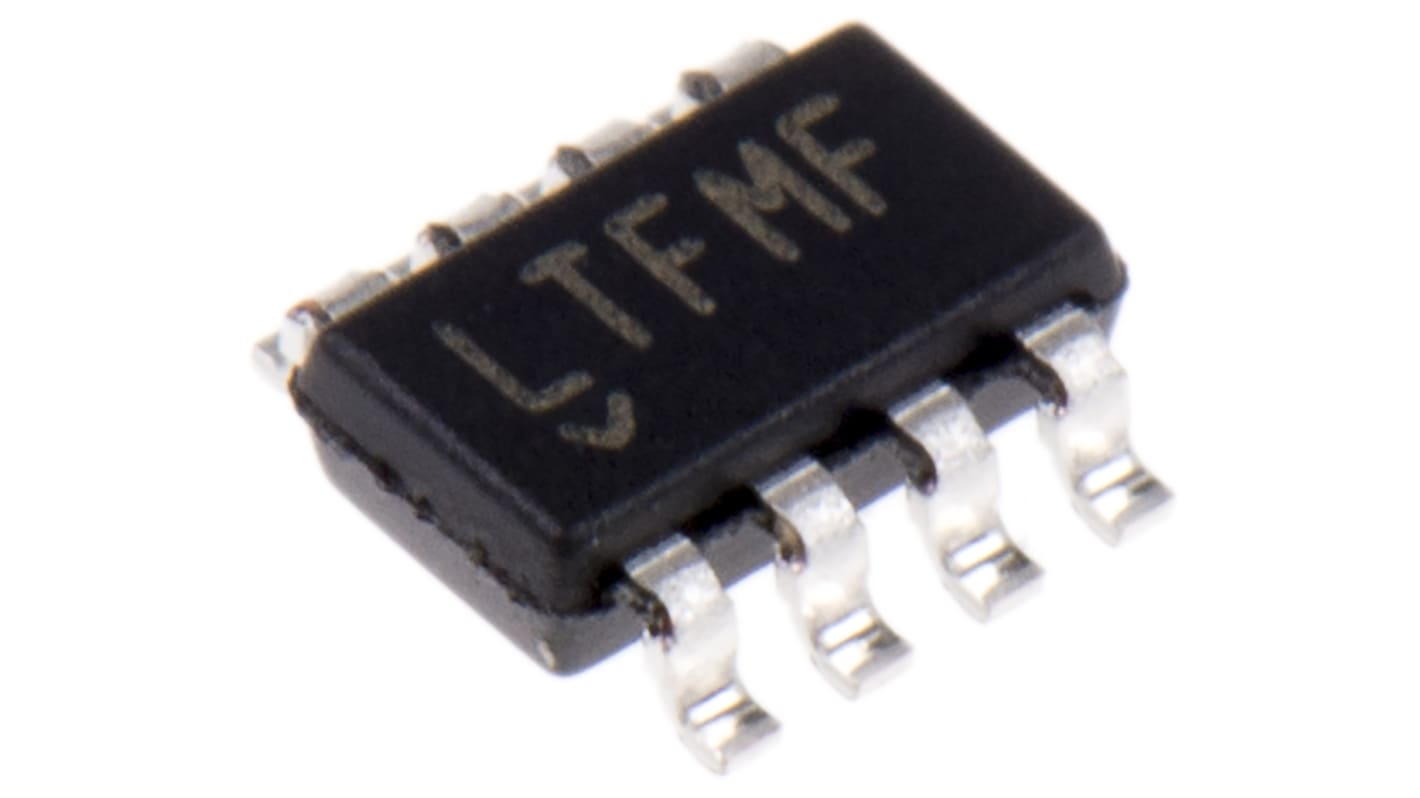

Analog Devices Voltage Supervisor 3.1V max. 8-Pin TSOT-23, LTC4366ITS8-2#TRMPBF
- RS Stock No.:
- 822-6698
- Mfr. Part No.:
- LTC4366ITS8-2#TRMPBF
- Brand:
- Linear Technology
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 822-6698
- Mfr. Part No.:
- LTC4366ITS8-2#TRMPBF
- Brand:
- Linear Technology
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Linear Technology | |
| Voltage Supervisor Type | High Voltage Surge Stopper | |
| Number of Supervisors | 1 | |
| Maximum Reset Threshold Voltage | 3.1V | |
| Minimum Reset Threshold Voltage | 2.6V | |
| Mounting Type | Surface Mount | |
| Package Type | TSOT-23 | |
| Pin Count | 8 | |
| Dimensions | 2.9 x 1.75 x 0.9mm | |
| Maximum Operating Supply Voltage | 500 V | |
| Minimum Operating Supply Voltage | 9 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Linear Technology | ||
Voltage Supervisor Type High Voltage Surge Stopper | ||
Number of Supervisors 1 | ||
Maximum Reset Threshold Voltage 3.1V | ||
Minimum Reset Threshold Voltage 2.6V | ||
Mounting Type Surface Mount | ||
Package Type TSOT-23 | ||
Pin Count 8 | ||
Dimensions 2.9 x 1.75 x 0.9mm | ||
Maximum Operating Supply Voltage 500 V | ||
Minimum Operating Supply Voltage 9 V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Surge Stopper Circuits, Linear Technology
Linear Technology high voltage Surge Stopper devices for the protection of loads from over-voltage and high voltage transient damage. These products will find uses in a variety of applications, such as automotive, avionic, and industrial Surge Protection, Hot Swap™ and Live Insertion systems, High Side Switching for battery-powered systems and safety applications.
Surge Protection and Clamping Circuits
Integrated circuit solutions to facilitate transient surge and over-voltage protection in a wide range of applications.
