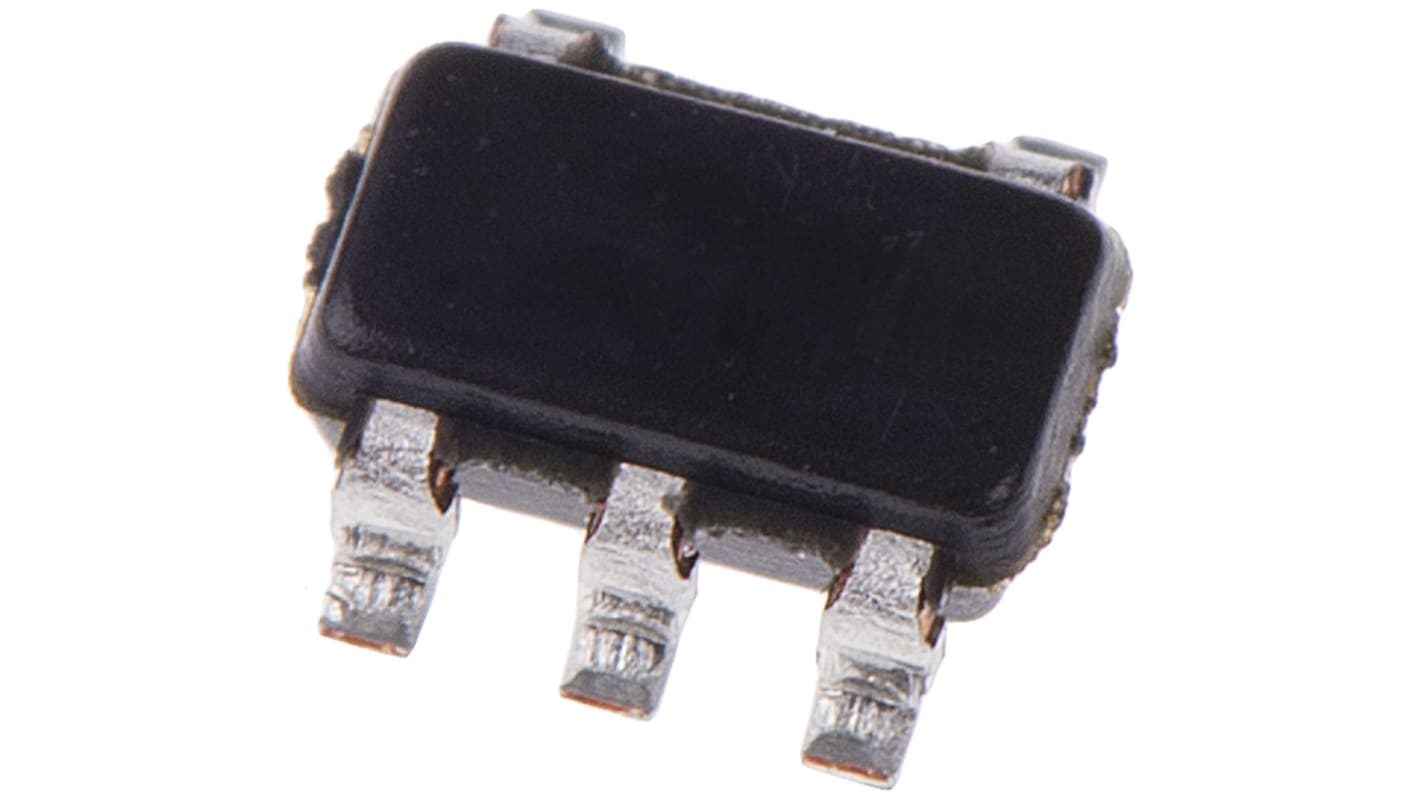

Texas Instruments, 5-Channel Charge Pump, Regulator, 60 mA, -5.25/1.6 V 400 kHz, SOT-23 5-Pin
- RS Stock No.:
- 920-3407
- Mfr. Part No.:
- TPS60403DBVT
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 reel of 250 units)*
£102.25
(exc. VAT)
£122.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,750 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 250 - 250 | £0.409 | £102.25 |
| 500 - 1000 | £0.389 | £97.25 |
| 1250 + | £0.368 | £92.00 |
*price indicative
- RS Stock No.:
- 920-3407
- Mfr. Part No.:
- TPS60403DBVT
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Regulator Type | Charge Pump | |
| Product Type | Regulator | |
| Number of Outputs | 5 | |
| Output Voltage | -5.25/1.6 V | |
| Switching Frequency | 400kHz | |
| Polarity | Positive | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Quiescent Current | 65μA | |
| Pin Count | 5 | |
| Output Current | 60mA | |
| Output Type | Fixed | |
| Switching Regulator | Yes | |
| Standards/Approvals | RoHS | |
| Height | 1.15mm | |
| Length | 2.9mm | |
| Series | TPS6040x | |
| Width | 1.6 mm | |
| Minimum Input Voltage | 1.6V | |
| Maximum Operating Temperature | 125°C | |
| Maximum Input Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Regulator Type Charge Pump | ||
Product Type Regulator | ||
Number of Outputs 5 | ||
Output Voltage -5.25/1.6 V | ||
Switching Frequency 400kHz | ||
Polarity Positive | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Quiescent Current 65μA | ||
Pin Count 5 | ||
Output Current 60mA | ||
Output Type Fixed | ||
Switching Regulator Yes | ||
Standards/Approvals RoHS | ||
Height 1.15mm | ||
Length 2.9mm | ||
Series TPS6040x | ||
Width 1.6 mm | ||
Minimum Input Voltage 1.6V | ||
Maximum Operating Temperature 125°C | ||
Maximum Input Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard AEC-Q100 | ||
Inverting Charge Pump Converters, Texas Instruments
Charge Pump Converters, Texas Instruments
The easy-to-use inductorless Charge Pump ICs from Texas Instruments offer a small-sized, simpler solution with high performance. The charge pump or switched-capacitor converter is an alternative solution to inductive DC-DC converters and delivers higher efficiency than Low Dropout (LDO) regulators.
Buck (Step-Down), Boost (Step-Up) and Inverting topologies
