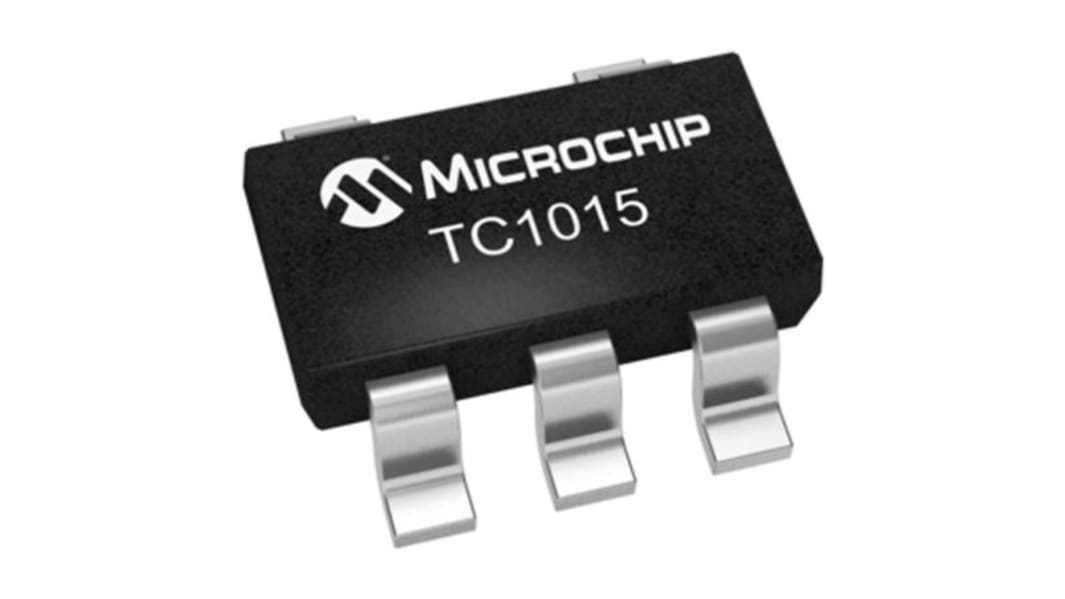

Microchip TC1015-3.3VCT713, 1 Low Dropout Voltage, Voltage Regulator 100mA, 3.3 V 5-Pin, SOT-23

View all Voltage Regulators

Subtotal (1 reel of 3000 units)*

£792.00

(exc. VAT)

£951.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.264£792.00

*price indicative

RS Stock No.:
912-2948
Mfr. Part No.:
TC1015-3.3VCT713
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Maximum Output Current

100mA

Regulator Type

Low Dropout Voltage

Number of Outputs

1

Output Voltage

3.3 V

Line Regulation

0.05 %

Accuracy

±2.5%

Load Regulation

0.5 %

Mounting Type

Surface Mount

Polarity

Positive

Package Type

SOT-23

Pin Count

5

Output Type

Fixed

Dimensions

3.1 x 1.8 x 1.3mm

Height

1.3mm

Minimum Input Voltage

2.7 V

Minimum Operating Temperature

-40 °C

Maximum Input Voltage

6 V

Maximum Operating Temperature

+125 °C

Length

3.1mm

Width

1.8mm

COO (Country of Origin):
TH

TC1015 Low Dropout Voltage Regulator


The Microchip a TC1015 are high accuracy (typically ±0.5%) CMOS upgrades for older (bipolar) Low Dropout Regulators (LDOs) such as the LP2980. Designed specifically for battery-operated systems, the devices’ CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 50 μA at full load (20 to 60 times lower than in bipolar regulators).

Low Supply Current (50 μA, typical)
Low Dropout Voltage
Choice of 50 mA (TC1014), 100 mA (TC1015)
and 150 mA (TC1185) Output
High Output Voltage Accuracy
Standard or Custom Output Voltages
Power-Saving Shutdown Mode
Reference Bypass Input for Ultra Low-Noise
Operation
Overcurrent and Over temperature Protection
Space-Saving 5-Pin SOT-23 Package
Pin-Compatible Upgrades for Bipolar Regulators
Standard Output Voltage Options:
- 1.8V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3.0V,
3.3V, 3.6V, 4.0V, 5.0V


LDO (Low Dropout) Linear Voltage Regulators, Microchip
