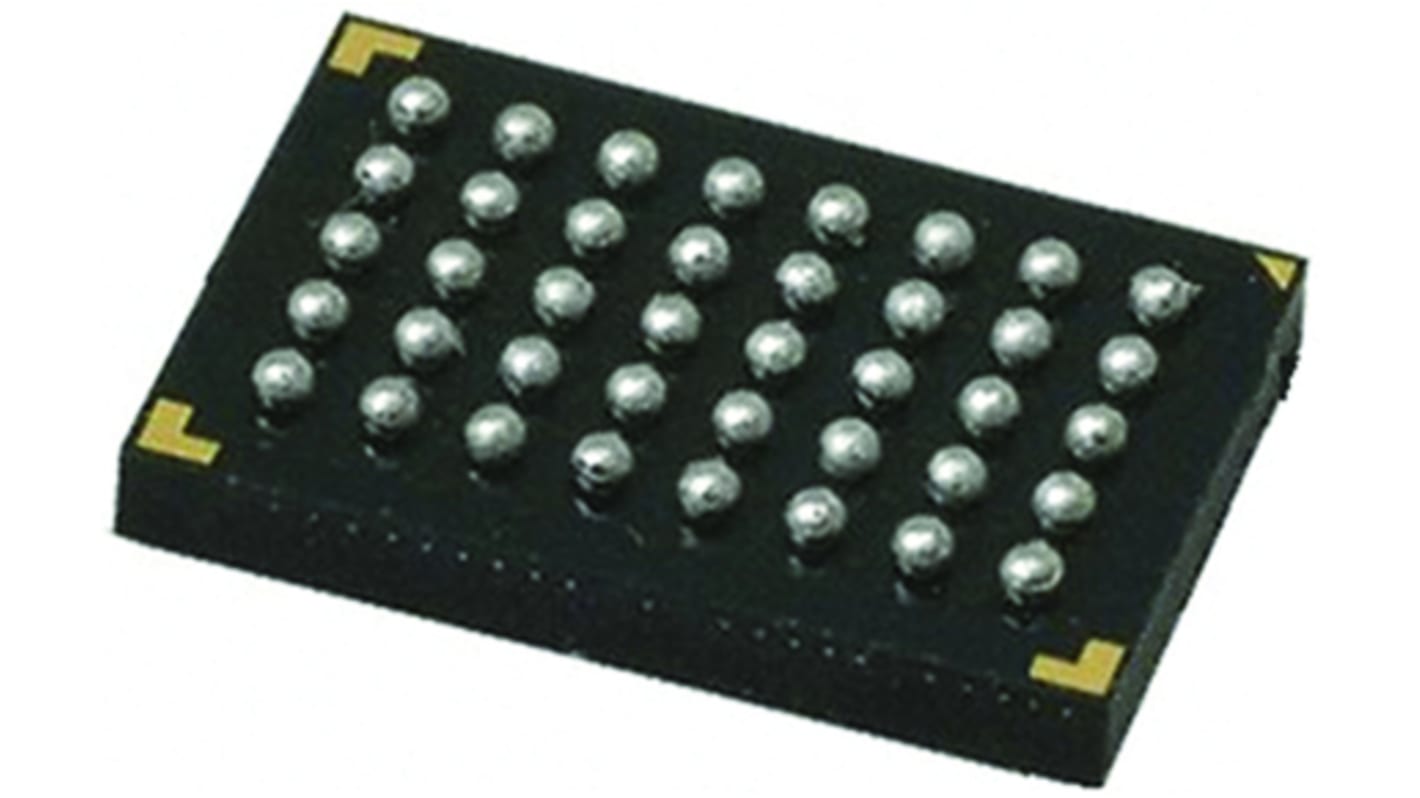

Analog Devices LTM8045EY#PBF, Dual Buck Boost Switching, Boost/Buck Converter 700mA, ±2.5 V → ±15 V, 2200 kHz

View all Voltage Regulators

Subtotal (1 unit)*

£7.88

(exc. VAT)

£9.46

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 162 unit(s), ready to ship
Units
Per unit
1 +£7.88

*price indicative

Packaging Options:
RS Stock No.:
906-3381
Mfr. Part No.:
LTM8045EY#PBF
Brand:
Analog Devices
Find similar products by selecting one or more attributes.
Select all

Brand

Analog Devices

Regulator Function

Inverting

Maximum Output Current

700mA

Regulator Type

Buck Boost Switching

Number of Outputs

2

Output Voltage

±2.5 V → ±15 V

Line Regulation

0.6 %

Load Regulation

0.2 %

Mounting Type

Surface Mount

Package Type

BGA

Pin Count

40

Output Type

Adjustable

Maximum Switching Frequency

2200 kHz

Switching Regulator

Yes

Dimensions

6.25 x 11.25 x 4.42mm

Minimum Operating Temperature

-40 °C

Height

4.42mm

Minimum Input Voltage

2.8 V

Maximum Input Voltage

18 V

Maximum Operating Temperature

+125 °C

Width

11.25mm

Length

6.25mm

Inverting Switching Regulators, Linear Technology


Linear Technology's offer a selection of inverting switching regulators, these regulators are designed to invert input voltages to negative outputs. Offering input voltages up to 60V and switch currents up to 10A with adjustable or fixed outputs. They may also incorporate integrated schottky diodes, fixed frequency operation, programmable current limit and low noise operation characteristics.


Switching Voltage Regulators, Linear Technology


Linear Technology product series of synchronous and non-synchronous internal switching regulator ICs offer high efficiency plus a wide input voltage range and switching frequencies up to 4MHz.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
