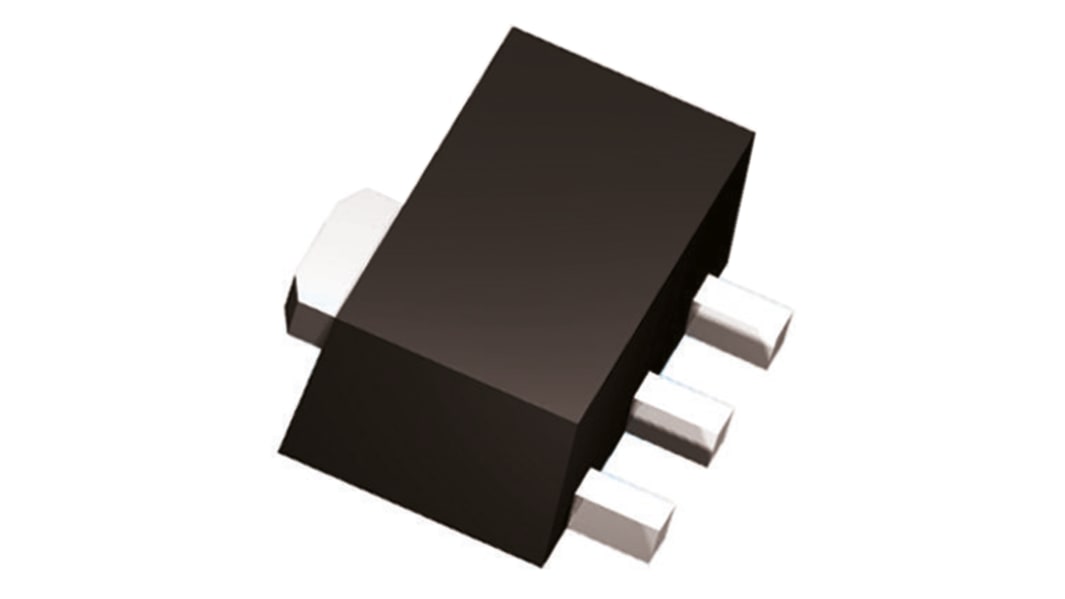

DiodesZetex AS78L15RTR-G1, 1 Linear Voltage, Voltage Regulator 100mA, 15 V 3-Pin, SOT-89

RS Stock No.:: 828-7561
Mfr. Part No.:: AS78L15RTR-G1
Brand:: DiodesZetex

Technical Reference (2)

DiodesZetex AS78L15RTR-G1, 1 Linear Voltage, Voltage Regulator 100mA, 15 V 3-Pin, SOT-89

View this category

1700 In stock - FREE next working day delivery available

Price Each (In a Pack of 50)

£0.054

(exc. VAT)

£0.065

(inc. VAT)

Units	Per unit	Per Pack*
50 +	£0.054	£2.70

*price indicative

RS Stock No.:: 828-7561
Mfr. Part No.:: AS78L15RTR-G1
Brand:: DiodesZetex

Attribute	Value
Regulator Type	Linear Voltage
Maximum Output Current	100mA
Output Voltage	15 V
Number of Outputs	1
Line Regulation	250 mV
Accuracy	±5%
Load Regulation	150 mV
Polarity	Positive
Mounting Type	Surface Mount
Package Type	SOT-89
Quiescent Current	6mA
Pin Count	3
Power Rating	750mW
Output Type	Fixed
Dimensions	4.6 x 2.6 x 1.6mm
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Height	1.6mm
Maximum Input Voltage	36 V
Length	4.6mm
Width	2.6mm

DiodesZetex AS78L15RTR-G1, 1 Linear Voltage, Voltage Regulator 100mA, 15 V 3-Pin, SOT-89

Technical Reference (2)

LDO (Low Dropout) Linear Voltage Regulators, 8.2V/12V/13.2V/15V Output, Diodes Inc
