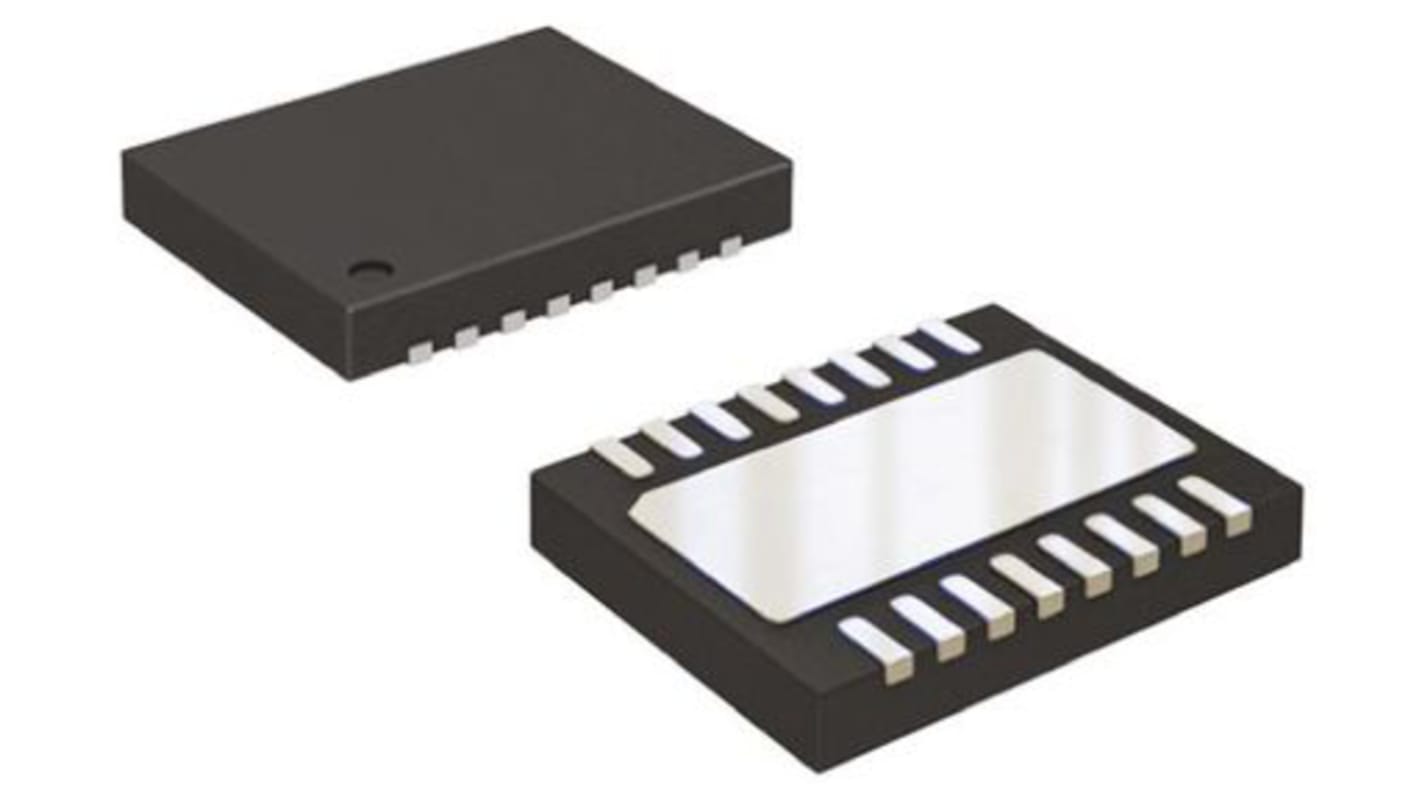

Analog Devices LT3022EDHC#PBF, 1 Low Dropout Voltage, Voltage Regulator 1A, 0.2 → 9.5 V 16-Pin, DFN
- RS Stock No.:
- 779-9580
- Mfr. Part No.:
- LT3022EDHC#PBF
- Brand:
- Analog Devices
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 779-9580
- Mfr. Part No.:
- LT3022EDHC#PBF
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Maximum Output Current | 1A | |
| Regulator Type | Low Dropout Voltage | |
| Output Voltage | 0.2 → 9.5 V | |
| Number of Outputs | 1 | |
| Line Regulation | 0.5 mV | |
| Load Regulation | 1 mV | |
| Polarity | Positive | |
| Mounting Type | Surface Mount | |
| Package Type | DFN | |
| Quiescent Current | 400µA | |
| Reference Voltage | 200mV | |
| Pin Count | 16 | |
| Output Type | Adjustable | |
| Dimensions | 5 x 3 x 0.7mm | |
| Minimum Input Voltage | 0.9 V | |
| Height | 0.7mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Input Voltage | 10 V | |
| Maximum Operating Temperature | +125 °C | |
| Length | 5mm | |
| Width | 3mm | |
| Select all | ||
|---|---|---|
Brand Analog Devices | ||
Maximum Output Current 1A | ||
Regulator Type Low Dropout Voltage | ||
Output Voltage 0.2 → 9.5 V | ||
Number of Outputs 1 | ||
Line Regulation 0.5 mV | ||
Load Regulation 1 mV | ||
Polarity Positive | ||
Mounting Type Surface Mount | ||
Package Type DFN | ||
Quiescent Current 400µA | ||
Reference Voltage 200mV | ||
Pin Count 16 | ||
Output Type Adjustable | ||
Dimensions 5 x 3 x 0.7mm | ||
Minimum Input Voltage 0.9 V | ||
Height 0.7mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Input Voltage 10 V | ||
Maximum Operating Temperature +125 °C | ||
Length 5mm | ||
Width 3mm | ||
- COO (Country of Origin):
- MY
Adjustable LDO (Low Dropout) Linear Voltage Regulators, Linear Technology
LDO (Low Dropout) Linear Voltage Regulators, Linear Technology
Linear Technology Low Dropout Linear regulators (LDO) present very low dropout, line and load regulation and fast transient response. The positive, negative and multiple output LDO Linear regulators come in fixed or adjustable outputs. Some LDO+ devices have more features than the standard linear regulators; some can monitor the voltage, current and temperature. They also feature program current limit, active output discharge or even control an upstream supply powering the LDO.
