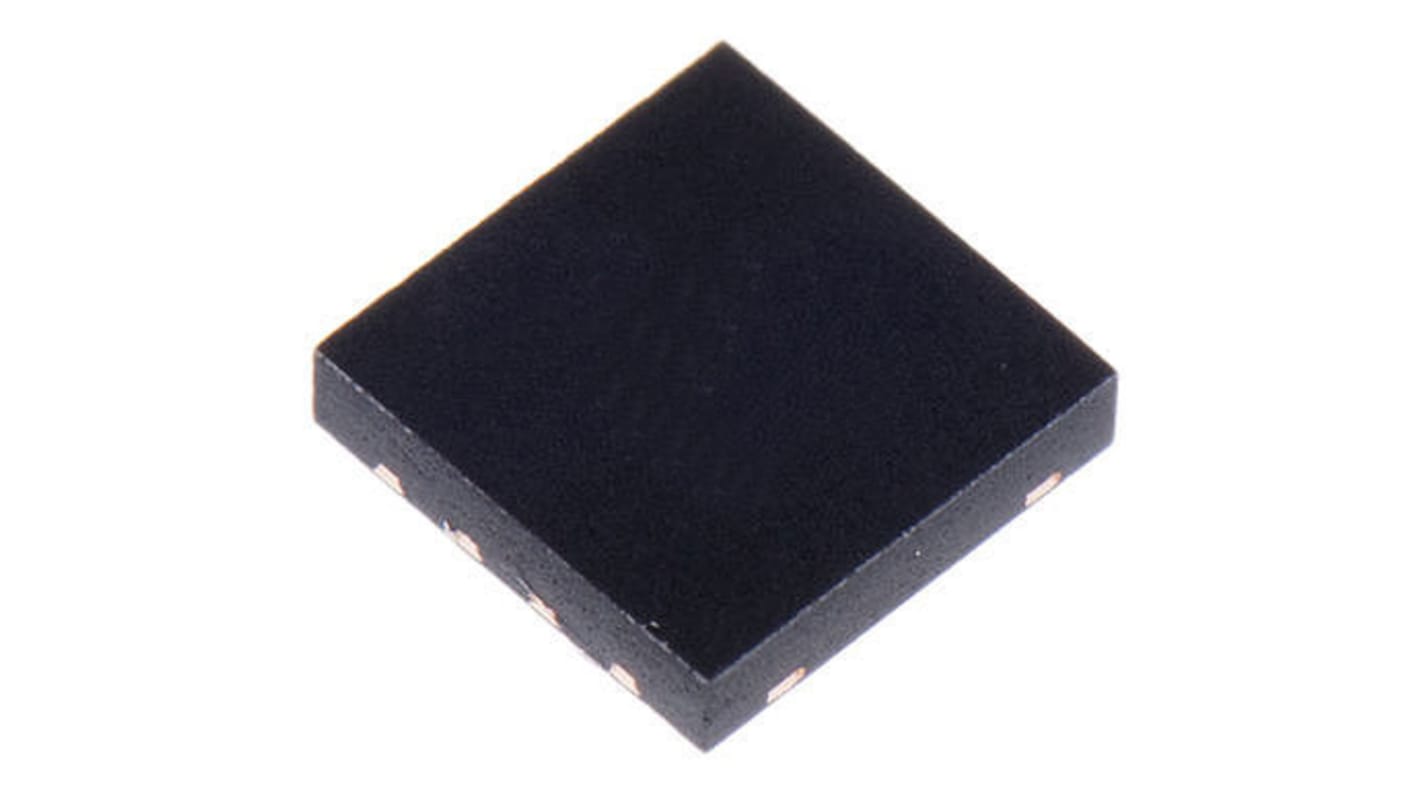

Analog Devices LT1964IDD#PBF, 1 Low Dropout Voltage, Voltage Regulator 200mA, -20 → -1.2 V 8-Pin, DFN
- RS Stock No.:
- 761-8579
- Mfr. Part No.:
- LT1964IDD#PBF
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 761-8579
- Mfr. Part No.:
- LT1964IDD#PBF
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Regulator Type | Low Dropout Voltage | |
| Maximum Output Current | 200mA | |
| Number of Outputs | 1 | |
| Output Voltage | -20 → -1.2 V | |
| Line Regulation | 12 mV | |
| Load Regulation | 15 mV | |
| Polarity | Negative | |
| Mounting Type | Surface Mount | |
| Package Type | DFN | |
| Quiescent Current | 0.03mA | |
| Pin Count | 8 | |
| Output Type | Adjustable | |
| Dimensions | 3 x 3 x 0.7mm | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Input Voltage | 20 V | |
| Minimum Input Voltage | -20 V | |
| Height | 0.7mm | |
| Minimum Operating Temperature | -40 °C | |
| Width | 3mm | |
| Length | 3mm | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Regulator Type Low Dropout Voltage | ||
Maximum Output Current 200mA | ||
Number of Outputs 1 | ||
Output Voltage -20 → -1.2 V | ||
Line Regulation 12 mV | ||
Load Regulation 15 mV | ||
Polarity Negative | ||
Mounting Type Surface Mount | ||
Package Type DFN | ||
Quiescent Current 0.03mA | ||
Pin Count 8 | ||
Output Type Adjustable | ||
Dimensions 3 x 3 x 0.7mm | ||
Maximum Operating Temperature +125 °C | ||
Maximum Input Voltage 20 V | ||
Minimum Input Voltage -20 V | ||
Height 0.7mm | ||
Minimum Operating Temperature -40 °C | ||
Width 3mm | ||
Length 3mm | ||
LDO (Low Dropout) Linear Voltage Regulators, Adjustable Output, Linear Technology
LDO (Low Dropout) Linear Voltage Regulators, Linear Technology
Linear Technology Low Dropout Linear regulators (LDO) present very low dropout, line and load regulation and fast transient response. The positive, negative and multiple output LDO Linear regulators come in fixed or adjustable outputs. Some LDO+ devices have more features than the standard linear regulators; some can monitor the voltage, current and temperature. They also feature program current limit, active output discharge or even control an upstream supply powering the LDO.
Fast Transient response time
Wide Input Voltage range: 0.9V to 80V
Output Currents from 100mA to 7.5A
Wide Input Voltage range: 0.9V to 80V
Output Currents from 100mA to 7.5A
