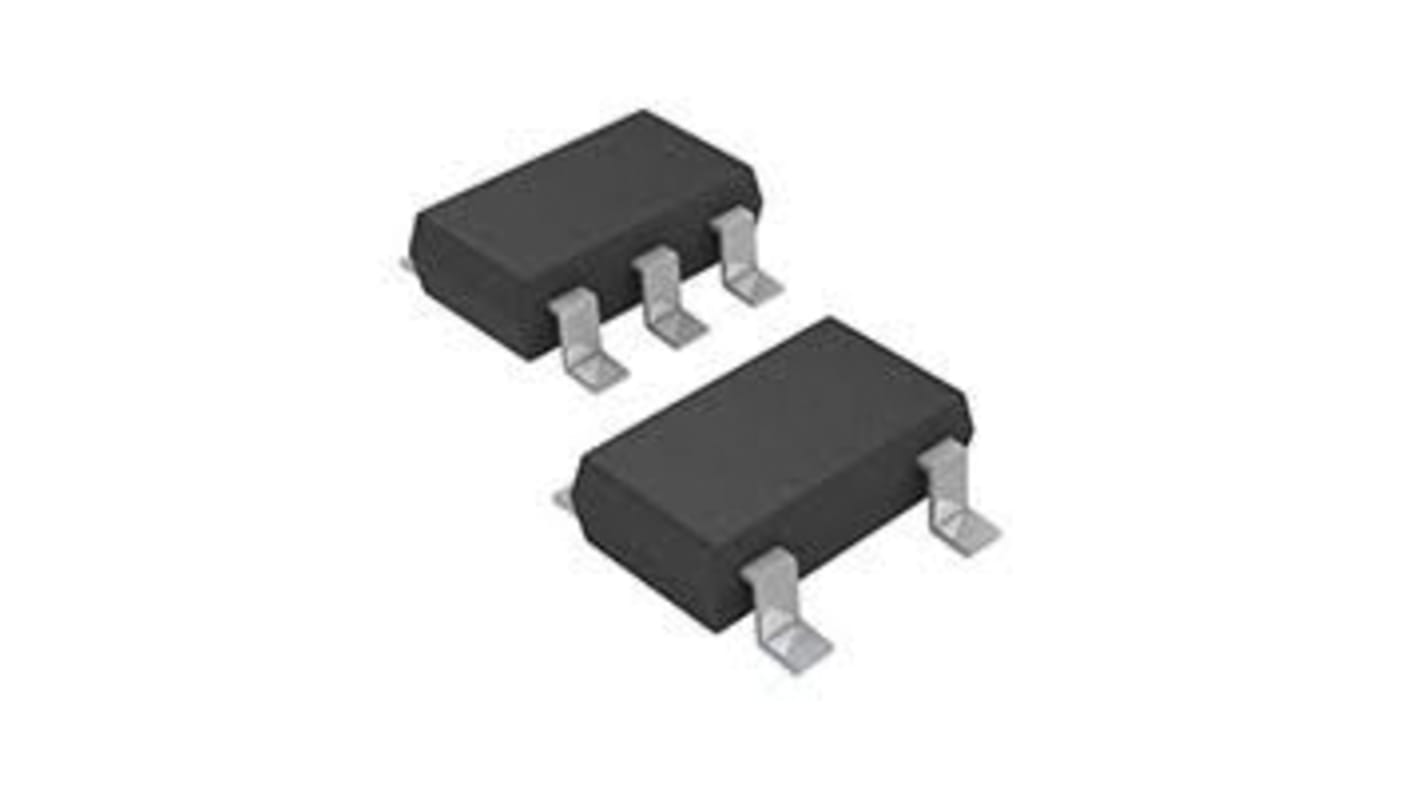

Analog Devices ADP151AUJZ-3.3-R7, 1 Linear Voltage, Voltage Regulator 200mA, 3.3 V 5-Pin, TSOT

RS Stock No.:: 742-7764
Mfr. Part No.:: ADP151AUJZ-3.3-R7
Brand:: Analog Devices

Analog Devices ADP151AUJZ-3.3-R7, 1 Linear Voltage, Voltage Regulator 200mA, 3.3 V 5-Pin, TSOT

2 In stock for delivery within 1 working days

Not available for guaranteed pre 9am/10am delivery

Price Each

£1.25

(exc. VAT)

£1.50

(inc. VAT)

Units	Per unit
1 - 9	£1.25
10 - 24	£1.09
25 - 49	£1.05
50 - 99	£1.00
100 +	£0.91

RS Stock No.:: 742-7764
Mfr. Part No.:: ADP151AUJZ-3.3-R7
Brand:: Analog Devices

Technical Reference

Legislation and Compliance

Product Details

LDO (Low Dropout) Linear Voltage Regulators, 3.xV Output, Analog Devices

The Analog Devices Low Dropout (LDO) Linear Regulators offer fast transient response, excellent line and load regulation, and they have a wide input voltage range.

LDO (Low Dropout) Linear Voltage Regulator - Analog Devices

The Low dropout or LDO is a linear voltage regulator. We have a wide range of linear regulators. The LDO regulator can operate with a small input–output differential voltage. LDO voltage regulators may offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.

Specifications

Attribute	Value
Maximum Output Current	200mA
Regulator Type	Linear Voltage
Number of Outputs	1
Output Voltage	3.3 V
Line Regulation	0.05 %/V
Accuracy	±2.5%
Load Regulation	0.008 %/mA
Mounting Type	Surface Mount
Polarity	Positive
Package Type	TSOT
Quiescent Current	0.265mA
Pin Count	5
Output Type	Fixed
Dimensions	2.9 x 1.6 x 0.9mm
Maximum Operating Temperature	+125 °C
Maximum Input Voltage	5.5 V
Minimum Input Voltage	2.2 V
Height	0.9mm
Minimum Operating Temperature	-40 °C
Width	1.6mm
Length	2.9mm
