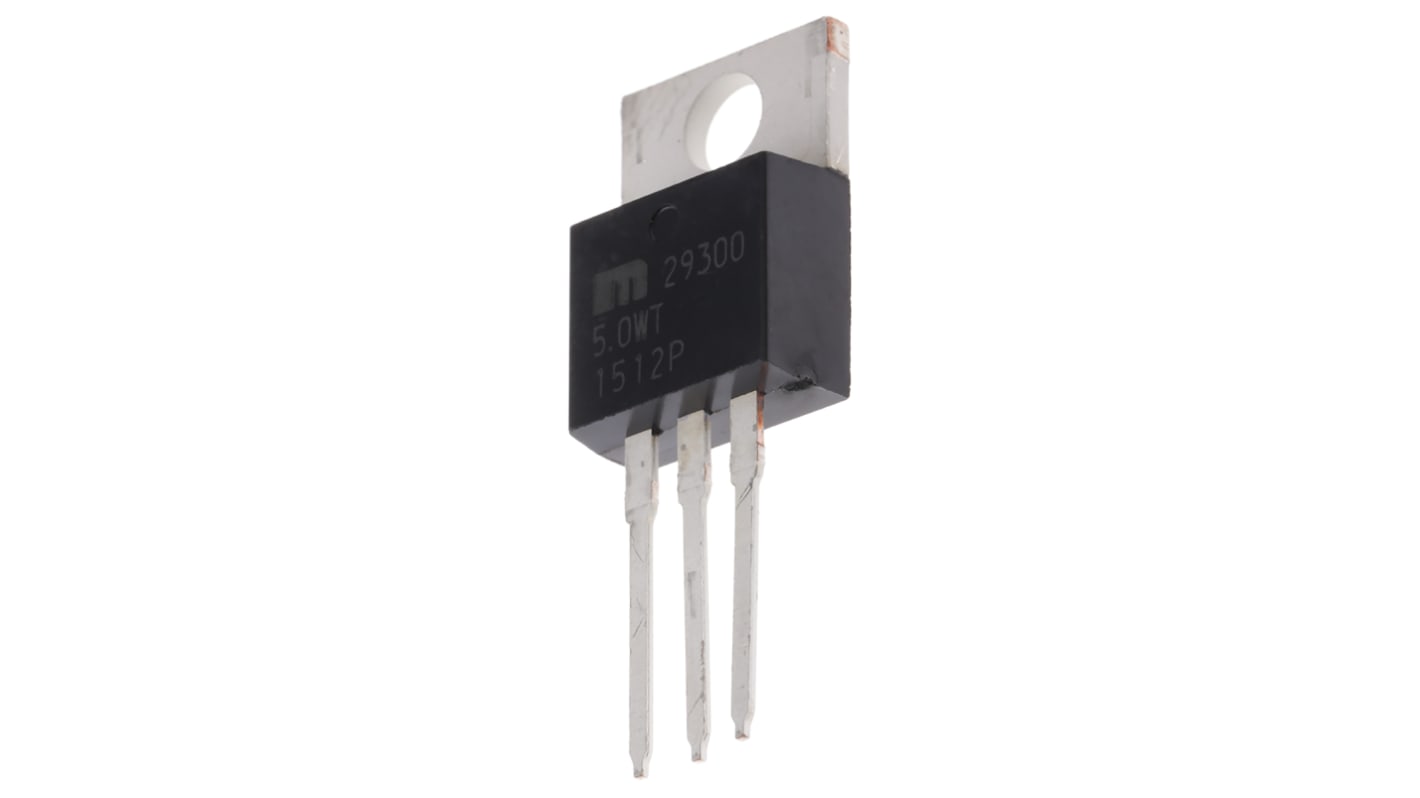

Micrel MIC29300-5.0WT, LDO Regulator, 3A, 5 V, ±1% 3-Pin, TO-220
- RS Stock No.:
- 727-5276
- Mfr. Part No.:
- MIC29300-5.0WT
- Brand:
- Micrel
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 2)
£3.42
(exc. VAT)
£4.10
(inc. VAT)
- RS Stock No.:
- 727-5276
- Mfr. Part No.:
- MIC29300-5.0WT
- Brand:
- Micrel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Micrel | |
| Maximum Output Current | 3A | |
| Output Voltage | 5 V | |
| Number of Outputs | 1 | |
| Line Regulation | 0.5 % | |
| Load Regulation | 1 % | |
| Accuracy | ±1% | |
| Polarity | Positive | |
| Mounting Type | Through Hole | |
| Package Type | TO-220 | |
| Quiescent Current | 10mA | |
| Pin Count | 3 | |
| Output Type | Fixed | |
| Dimensions | 10.67 x 4.83 x 9.17mm | |
| Minimum Input Voltage | 2.5 V | |
| Maximum Operating Temperature | +125 °C | |
| Height | 9.17mm | |
| Maximum Input Voltage | 26 V | |
| Minimum Operating Temperature | -40 °C | |
| Length | 10.67mm | |
| Width | 4.83mm | |
| Select all | ||
|---|---|---|
Brand Micrel | ||
Maximum Output Current 3A | ||
Output Voltage 5 V | ||
Number of Outputs 1 | ||
Line Regulation 0.5 % | ||
Load Regulation 1 % | ||
Accuracy ±1% | ||
Polarity Positive | ||
Mounting Type Through Hole | ||
Package Type TO-220 | ||
Quiescent Current 10mA | ||
Pin Count 3 | ||
Output Type Fixed | ||
Dimensions 10.67 x 4.83 x 9.17mm | ||
Minimum Input Voltage 2.5 V | ||
Maximum Operating Temperature +125 °C | ||
Height 9.17mm | ||
Maximum Input Voltage 26 V | ||
Minimum Operating Temperature -40 °C | ||
Length 10.67mm | ||
Width 4.83mm | ||
MIC29300 3A Low Dropout Voltage Regulator
LDO (Low Dropout) Linear Voltage Regulators, Microchip
