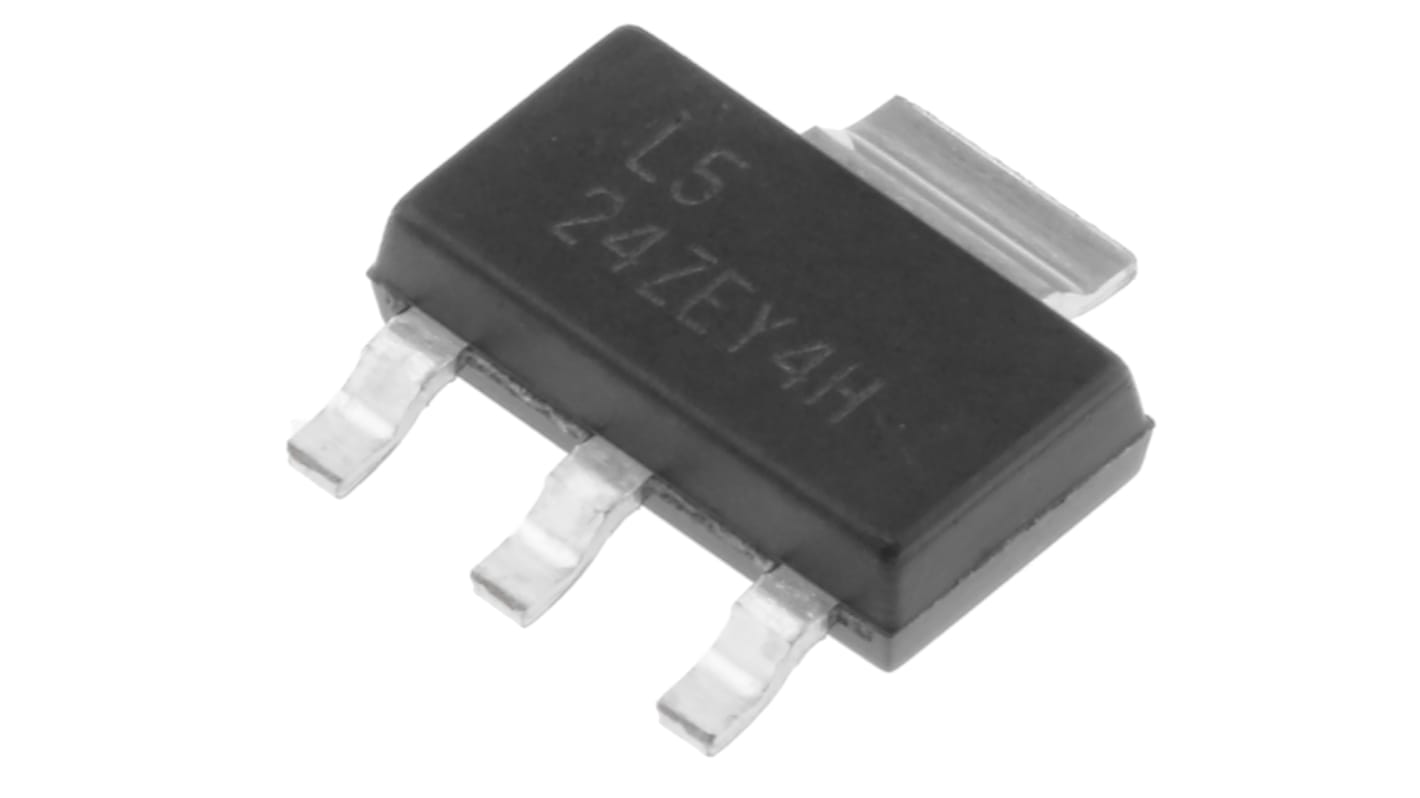

Texas Instruments LM317MQDCYR, 1 Linear Voltage, Voltage Regulator 500mA, 1.25 → 37 V 3+Tab-Pin, SOT-223
- RS Stock No.:
- 709-8732
- Mfr. Part No.:
- LM317MQDCYR
- Brand:
- Texas Instruments
440 In stock - FREE next working day delivery available
40 available from Europe for delivery within 2 working day(s).
Price Each (In a Pack of 5)
£0.536
(exc. VAT)
£0.643
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £0.536 | £2.68 |
25 - 45 | £0.51 | £2.55 |
50 - 120 | £0.46 | £2.30 |
125 - 245 | £0.414 | £2.07 |
250 + | £0.392 | £1.96 |
*price indicative
- RS Stock No.:
- 709-8732
- Mfr. Part No.:
- LM317MQDCYR
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
Product Details
LM117/LM317 Adjustable Voltage Regulators
The Texas Instruments LM117/LM317 series of adjustable three-terminal positive voltage regulators are available with current ratings of 0.1, 0.5 and 1.5A. Output voltage range is from 1.25 V to 37 V and is set by two external resistors. These robust and reliable devices incorporate current limiting, thermal overload protection, and safe operating area protection.
Output Voltage Range: 1.2 V to 37 V
Output Current: 1.5 A (LM317), 0.5 A (LM317M), 0.1 A (LM317L)
Typical line regulation: 0.01%
Typical load regulation: 0.1%
Output Current: 1.5 A (LM317), 0.5 A (LM317M), 0.1 A (LM317L)
Typical line regulation: 0.01%
Typical load regulation: 0.1%
Linear Voltage Regulators, Texas Instruments
A range of fixed and adjustable Linear Voltage regulators from Texas Instruments. The range includes both positive and negative polarity devices with output current ratings from 100mA up to 5A.
Specifications
Attribute | Value |
---|---|
Maximum Output Current | 500mA |
Regulator Type | Linear Voltage |
Output Voltage | 1.25 → 37 V |
Number of Outputs | 1 |
Line Regulation | 0.04 %/V |
Load Regulation | 0.5 % |
Mounting Type | Surface Mount |
Polarity | Positive |
Package Type | SOT-223 |
Reference Voltage | 1.3V |
Pin Count | 3+Tab |
Output Type | Adjustable |
Dimensions | 6.5 x 3.5 x 1.6mm |
Minimum Operating Temperature | -40 °C |
Maximum Input Voltage | 40 V |
Minimum Input Voltage | 3 V |
Height | 1.6mm |
Maximum Operating Temperature | +125 °C |
Length | 6.5mm |
Width | 3.5mm |
