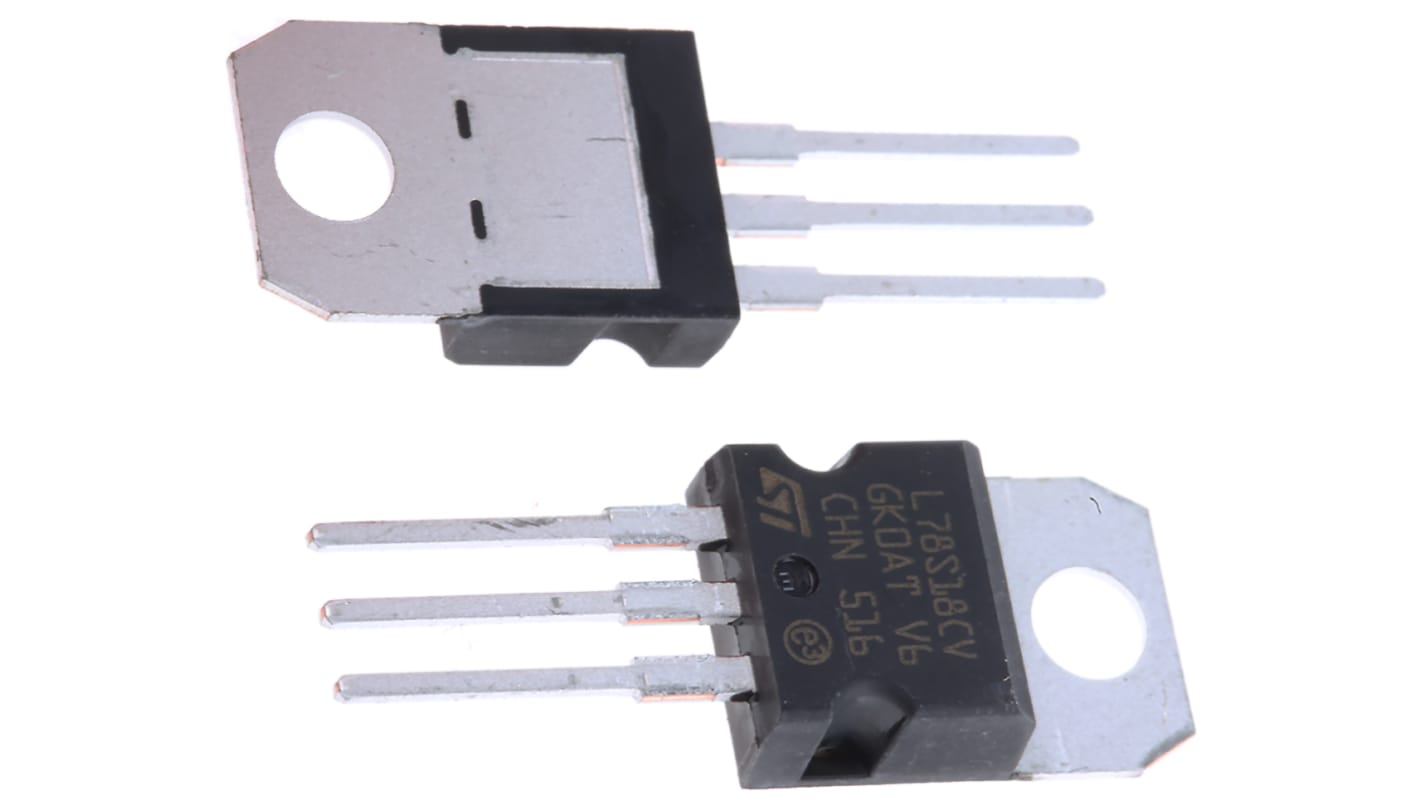

STMicroelectronics L78S18CV, 1 Linear Voltage, Voltage Regulator 2A, 18 V 3-Pin, TO-220
- RS Stock No.:
- 686-9022
- Mfr. Part No.:
- L78S18CV
- Brand:
- STMicroelectronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 686-9022
- Mfr. Part No.:
- L78S18CV
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Regulator Type | Linear Voltage | |
| Maximum Output Current | 2A | |
| Number of Outputs | 1 | |
| Output Voltage | 18 V | |
| Line Regulation | 360 mV | |
| Load Regulation | 360 mV | |
| Polarity | Positive | |
| Mounting Type | Through Hole | |
| Quiescent Current | 8mA | |
| Package Type | TO-220 | |
| Pin Count | 3 | |
| Output Type | Fixed | |
| Dimensions | 10.4 x 4.6 x 9.15mm | |
| Maximum Input Voltage | 35 V | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Input Voltage | 21 V | |
| Height | 9.15mm | |
| Minimum Operating Temperature | 0 °C | |
| Width | 4.6mm | |
| Length | 10.4mm | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Regulator Type Linear Voltage | ||
Maximum Output Current 2A | ||
Number of Outputs 1 | ||
Output Voltage 18 V | ||
Line Regulation 360 mV | ||
Load Regulation 360 mV | ||
Polarity Positive | ||
Mounting Type Through Hole | ||
Quiescent Current 8mA | ||
Package Type TO-220 | ||
Pin Count 3 | ||
Output Type Fixed | ||
Dimensions 10.4 x 4.6 x 9.15mm | ||
Maximum Input Voltage 35 V | ||
Maximum Operating Temperature +150 °C | ||
Minimum Input Voltage 21 V | ||
Height 9.15mm | ||
Minimum Operating Temperature 0 °C | ||
Width 4.6mm | ||
Length 10.4mm | ||
L78S 2A Linear Voltage Regulator, STMicroelectronics
STMicroelectronics L78S series positive voltage regulators are for use in fixed voltage regulation. There are no external parts required unless you want to adjust the outputs. The linear voltage regulators feature safe area protection, internal current limiting and thermal shut-down making them a robust device. STMicroelectronics regulators can offer local on-card regulation which can eliminate any distribution problems associated with single point regulation.
Three-terminal positive regulators in TO220 package
Output current up to 2 A/ Range of fixed output voltages
Thermal protection, short circuit protection, output transition SOA protection
Output current up to 2 A/ Range of fixed output voltages
Thermal protection, short circuit protection, output transition SOA protection
Features
Linear Voltage Regulators, STMicroelectronics
