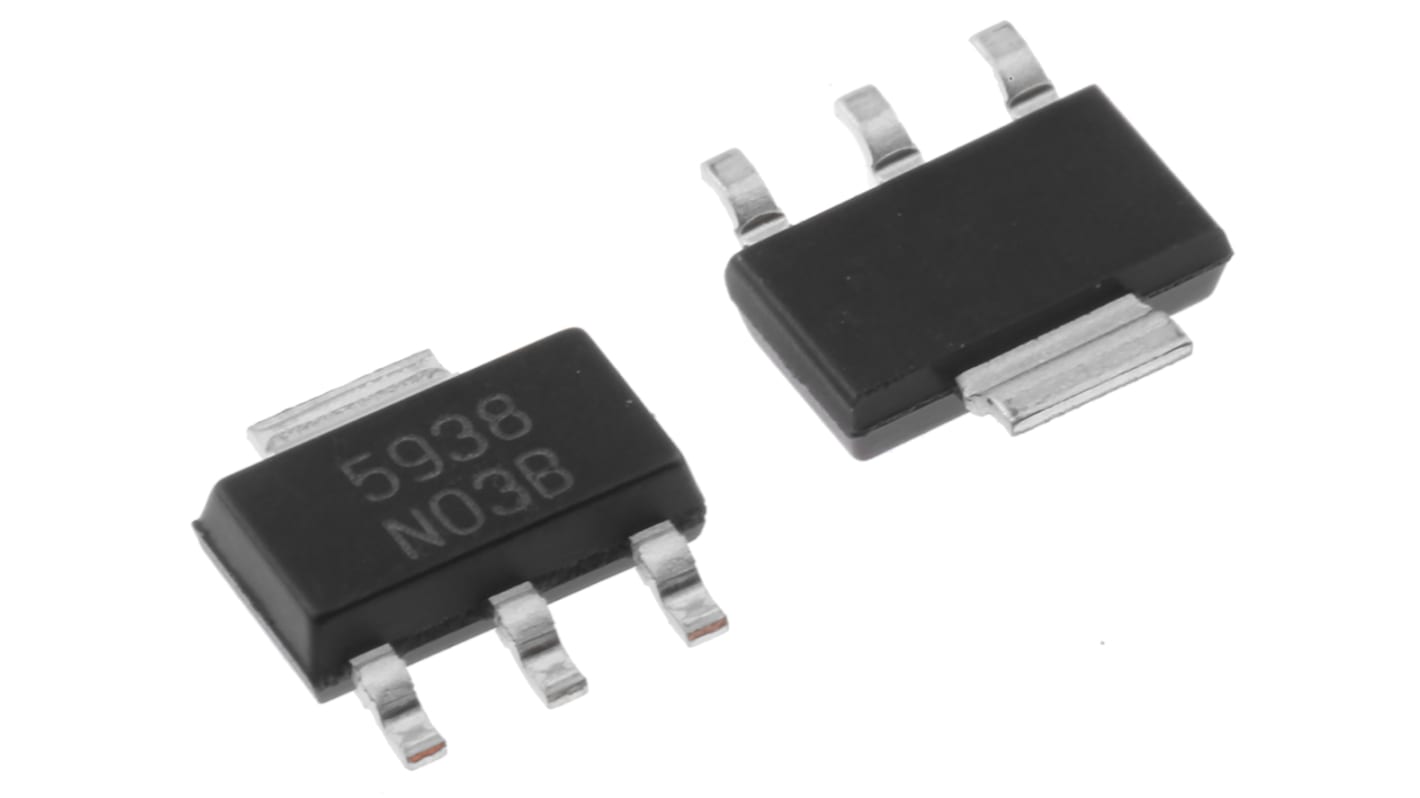

Texas Instruments LM1117IMP-ADJ/NOPB, 1 Low Dropout Voltage, Voltage Regulator 1.5A, 1.25 → 13.8 V 3+Tab-Pin,
- RS Stock No.:
- 535-8663
- Mfr. Part No.:
- LM1117IMP-ADJ/NOPB
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.49
(exc. VAT)
£5.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 100 unit(s) ready to ship
- Plus 1,765 unit(s) shipping from 11 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £0.898 | £4.49 |
25 - 45 | £0.854 | £4.27 |
50 - 120 | £0.766 | £3.83 |
125 - 245 | £0.69 | £3.45 |
250 + | £0.658 | £3.29 |
*price indicative
- RS Stock No.:
- 535-8663
- Mfr. Part No.:
- LM1117IMP-ADJ/NOPB
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Regulator Type | Low Dropout Voltage | |
Maximum Output Current | 1.5A | |
Output Voltage | 1.25 → 13.8 V | |
Number of Outputs | 1 | |
Line Regulation | 0.035 % | |
Accuracy | ±1% | |
Load Regulation | 0.2 % | |
Mounting Type | Surface Mount | |
Polarity | Positive | |
Package Type | SOT-223 | |
Reference Voltage | 1.262V | |
Pin Count | 3+Tab | |
Output Type | Adjustable | |
Dimensions | 6.5 x 3.56 x 1.6mm | |
Height | 1.6mm | |
Maximum Operating Temperature | +125 °C | |
Maximum Input Voltage | 15 V | |
Minimum Operating Temperature | -40 °C | |
Width | 3.56mm | |
Length | 6.5mm | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Regulator Type Low Dropout Voltage | ||
Maximum Output Current 1.5A | ||
Output Voltage 1.25 → 13.8 V | ||
Number of Outputs 1 | ||
Line Regulation 0.035 % | ||
Accuracy ±1% | ||
Load Regulation 0.2 % | ||
Mounting Type Surface Mount | ||
Polarity Positive | ||
Package Type SOT-223 | ||
Reference Voltage 1.262V | ||
Pin Count 3+Tab | ||
Output Type Adjustable | ||
Dimensions 6.5 x 3.56 x 1.6mm | ||
Height 1.6mm | ||
Maximum Operating Temperature +125 °C | ||
Maximum Input Voltage 15 V | ||
Minimum Operating Temperature -40 °C | ||
Width 3.56mm | ||
Length 6.5mm | ||
