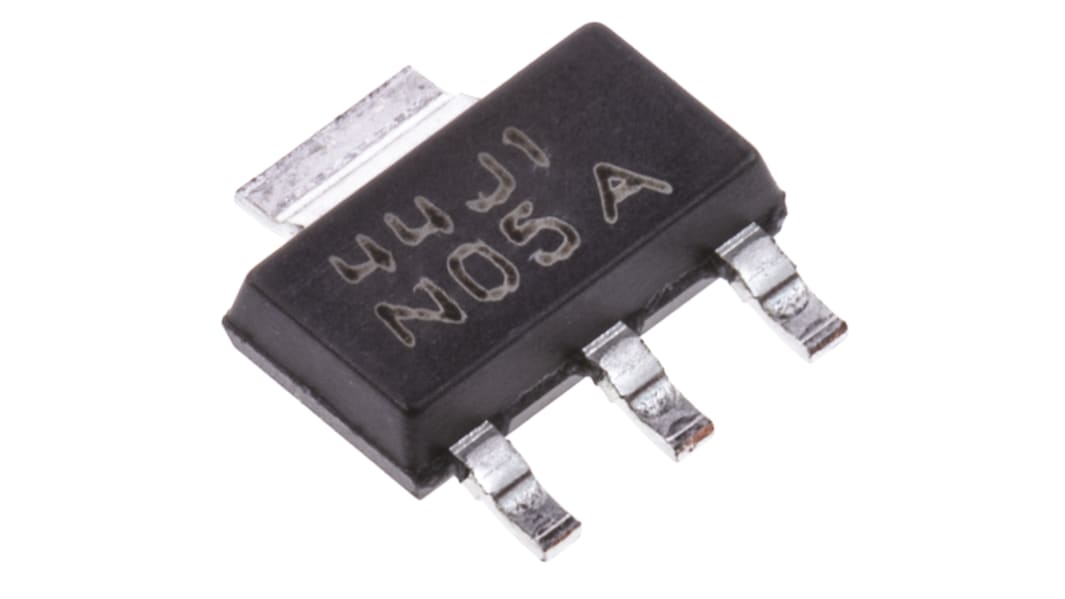

Texas Instruments LM1117MP-3.3/NOPB, 1 Low Dropout Voltage, Voltage Regulator 800mA, 3.3 V 4-Pin, SOT-223

RS Stock No.:: 533-9577
Mfr. Part No.:: LM1117MP-3.3/NOPB
Brand:: Texas Instruments

Texas Instruments LM1117MP-3.3/NOPB, 1 Low Dropout Voltage, Voltage Regulator 800mA, 3.3 V 4-Pin, SOT-223

319 In stock - FREE next working day delivery available

104 available from Europe for delivery within 1 working day(s).

Price Each

£1.29

(exc. VAT)

£1.55

(inc. VAT)

Units	Per unit
1 - 24	£1.29
25 - 49	£1.23
50 - 99	£1.10
100 - 249	£0.98
250 +	£0.95

RS Stock No.:: 533-9577
Mfr. Part No.:: LM1117MP-3.3/NOPB
Brand:: Texas Instruments

Datasheet

Attribute	Value
Maximum Output Current	800mA
Regulator Type	Low Dropout Voltage
Output Voltage	3.3 V
Number of Outputs	1
Line Regulation	1 mV
Load Regulation	1 mV
Accuracy	±1%
Mounting Type	Surface Mount
Package Type	SOT-223
Pin Count	4
Output Type	Fixed
Dimensions	6.5 x 3.56 x 1.6mm
Height	1.6mm
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	0 °C
Maximum Input Voltage	15 V
Width	3.56mm
Length	6.5mm

Texas Instruments LM1117MP-3.3/NOPB, 1 Low Dropout Voltage, Voltage Regulator 800mA, 3.3 V 4-Pin, SOT-223

LDO (Low Dropout) Linear Voltage Regulators, 600mA to 800mA, Texas Instruments
