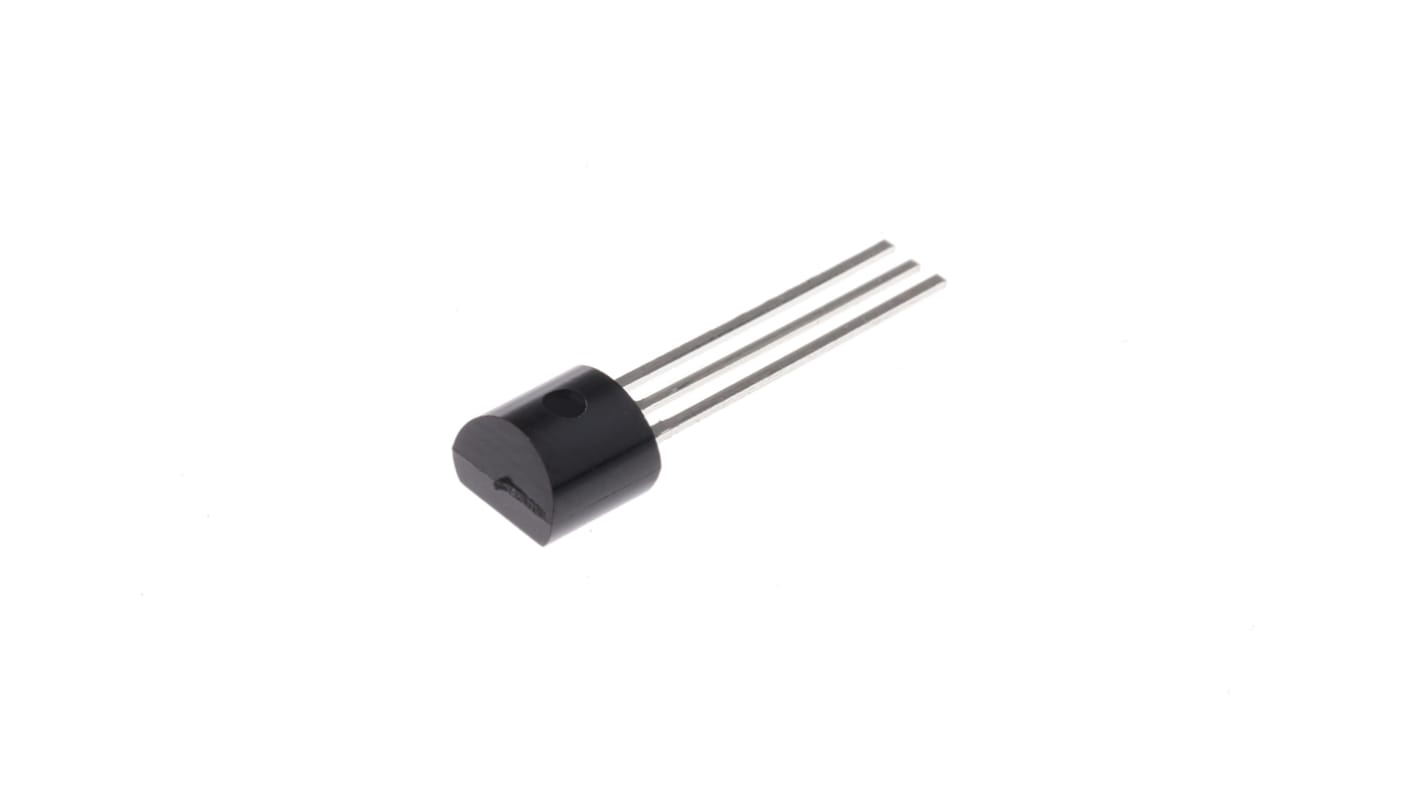

Texas Instruments LM2936Z-3.3/NOPB, 1 Low Dropout Voltage, Voltage Regulator 50mA, 3.3 V 3-Pin, TO-92
- RS Stock No.:
- 504-5070P
- Mfr. Part No.:
- LM2936Z-3.3/NOPB
- Brand:
- Texas Instruments
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 504-5070P
- Mfr. Part No.:
- LM2936Z-3.3/NOPB
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Maximum Output Current | 50mA | |
Regulator Type | Low Dropout Voltage | |
Output Voltage | 3.3 V | |
Number of Outputs | 1 | |
Line Regulation | 30 mV | |
Load Regulation | 30 mV | |
Accuracy | ±2% | |
Polarity | Positive | |
Mounting Type | Through Hole | |
Package Type | TO-92 | |
Pin Count | 3 | |
Output Type | Fixed | |
Dimensions | 5.2 x 4.19 x 5.2mm | |
Minimum Input Voltage | 4 V | |
Height | 5.2mm | |
Maximum Input Voltage | 40 V | |
Minimum Operating Temperature | -40 °C | |
Maximum Operating Temperature | +125 °C | |
Width | 4.19mm | |
Length | 5.2mm | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Maximum Output Current 50mA | ||
Regulator Type Low Dropout Voltage | ||
Output Voltage 3.3 V | ||
Number of Outputs 1 | ||
Line Regulation 30 mV | ||
Load Regulation 30 mV | ||
Accuracy ±2% | ||
Polarity Positive | ||
Mounting Type Through Hole | ||
Package Type TO-92 | ||
Pin Count 3 | ||
Output Type Fixed | ||
Dimensions 5.2 x 4.19 x 5.2mm | ||
Minimum Input Voltage 4 V | ||
Height 5.2mm | ||
Maximum Input Voltage 40 V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Width 4.19mm | ||
Length 5.2mm | ||
